ICON Stage 3 Suspension System Billet UCA for 2010-2023 Lexus GX460

Name: ICON Stage 3 Suspension System Billet UCA for 2010-2023 Lexus GX460
Brand: ICON
SKU: K53183
Price: 4337.65 USD
Availability: InStock

$4,337.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53183

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adds 0-3.5 inches of adjustable front lift to clear up to 33-inch tires
2.5-inch extended-travel coilovers with reservoirs control heat and fade
Patented billet Delta Joint upper control arms allow on-vehicle alignment tuning
Matched 2-inch rear coils and 2.0 reservoir shocks balance the ride front to rear
Adjustable billet rear lower links improve articulation and set pinion angle
Bolt-on system needs no cutting or welding for standard installs
KDSS compatible for full off-road suspension travel

The ICON K53183 Stage 3 Suspension System is a complete bolt-on kit for the 2010-2023 Lexus GX460, delivering 0-3.5 inches of front lift with vehicle-specific 2.5-inch front coilovers, billet aluminum Delta Joint upper control arms, adjustable billet rear lower links, rear springs, 2.0 rear shocks, and an adjustable track bar.

Key Benefits

Height-adjustable front lift from 0 to 3.5 inches to clear larger wheel and tire combinations up to 33 inches
Vehicle-specific tuned 2.5-inch extended-travel coilovers with internal reservoirs for superior heat management and control
Patented billet aluminum Delta Joint upper control arms combine ball-joint durability with uniball performance and on-vehicle alignment adjustment
Balanced front-to-rear ride with matched 2-inch rear coils and 2.0 Aluminum Series reservoir shocks
Bolt-on installation with no cutting or welding required for standard configurations

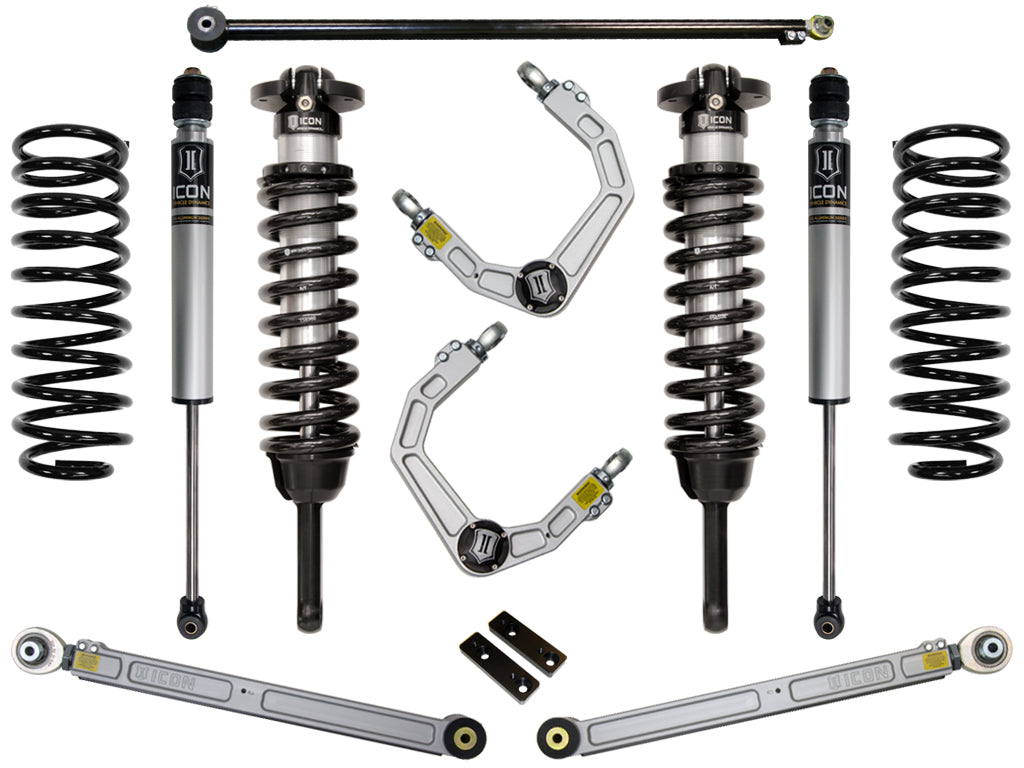

What's Included

Pair of 2.5-inch extended-travel front coilover shocks with internal reservoirs
Billet aluminum Delta Joint upper control arms
2-inch lift rear coil springs
2.0 Aluminum Series internal-reservoir rear shocks
Adjustable billet aluminum rear lower links
Adjustable rear track bar and required hardware

Specifications

Brand: ICON Vehicle Dynamics
System: Stage 3
Front lift: 0-3.5 inches adjustable
Rear lift: 2 inches
Front shock: 2.5-inch coilover with internal reservoir
Rear shock: 2.0 Aluminum Series internal reservoir
Upper control arms: Billet aluminum Delta Joint
Position: Front and rear

Fitment

Direct fit for the 2010-2023 Lexus GX460. KDSS-equipped models are supported (front sway bar relocation brackets are not used). Models with factory rear air-ride suspension require ICON rear coil conversion kit #56110 (sold separately). Some model years may require minor trimming for front reservoir bracket clearance.

2010-2023 Lexus GX460 (front and rear)

FAQ

Does the ICON K53183 include upper control arms?

Yes. K53183 includes billet aluminum Delta Joint upper control arms plus adjustable billet rear lower links. K53183T is the same Stage 3 system with tubular steel arms and tubular rear links.

Are the ICON K53183 coilovers adjustable in damping?

No. Stage 3 uses non-adjustable vehicle-specific valving; the coilovers are height-adjustable but the damping is not.

Will the ICON K53183 fit a GX460 with factory rear air suspension?

Only with ICON's rear coil-conversion kit #56110 (sold separately).
