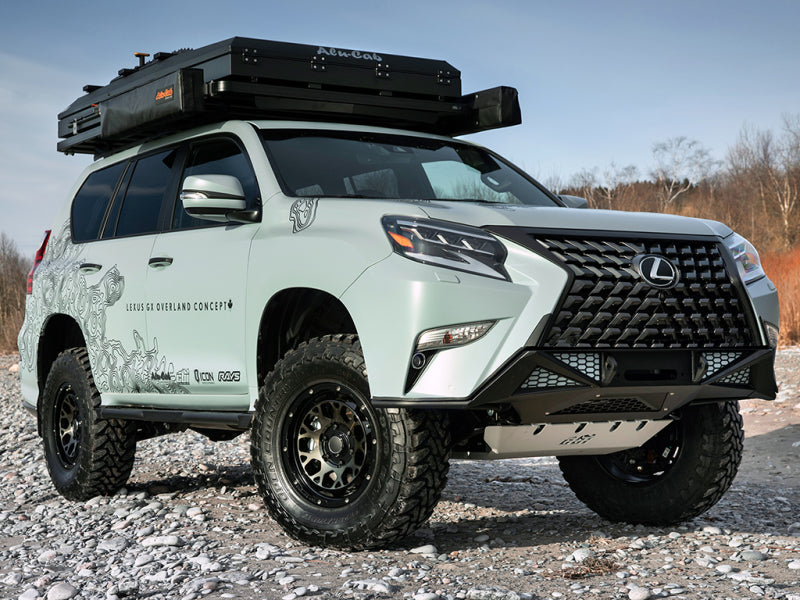

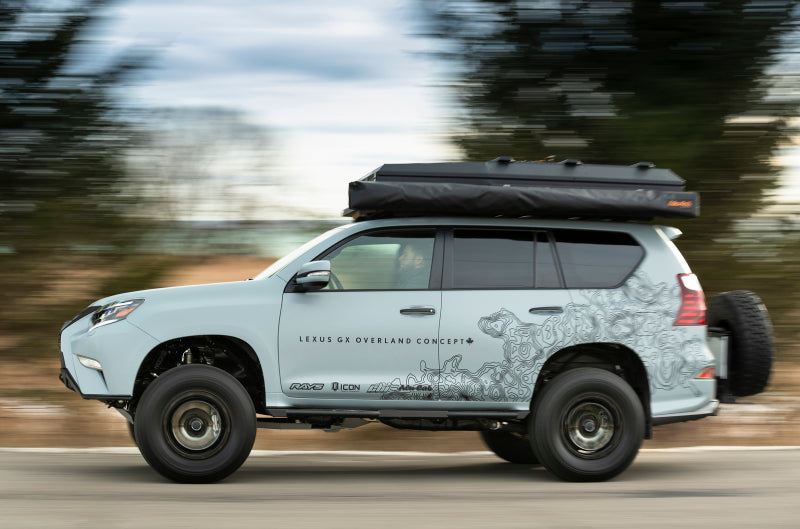

ICON Stage 2 Suspension System for 2010-2023 Lexus GX460

Transform your 2010-2023 Lexus GX460 with the ICON Stage 2 Suspension System (K53182T). This complete bolt-on package combines extended-travel 2.5" coilovers with tubular Delta Joint upper control arms and a matched rear package to deliver up to 3.5" of front lift, corrected suspension geometry, and confident control on the trail or the highway.

Key Benefits

• Adjustable 0-3.5" of front lift to clear larger, more aggressive wheel and tire combinations
• Vehicle-specific tuned 2.5" coilovers with internal reservoirs for fade-free damping and extended wheel travel
• Tubular steel upper control arms with ICON's patented Delta Joint for added articulation and durability
• Balanced front-to-rear ride with matched 2" rear coil springs and 2.0 Aluminum Series reservoir shocks
• Adjustable rear track bar maintains KDSS compatibility and corrects rear-end alignment
• Complete bolt-on installation with no cutting or welding required

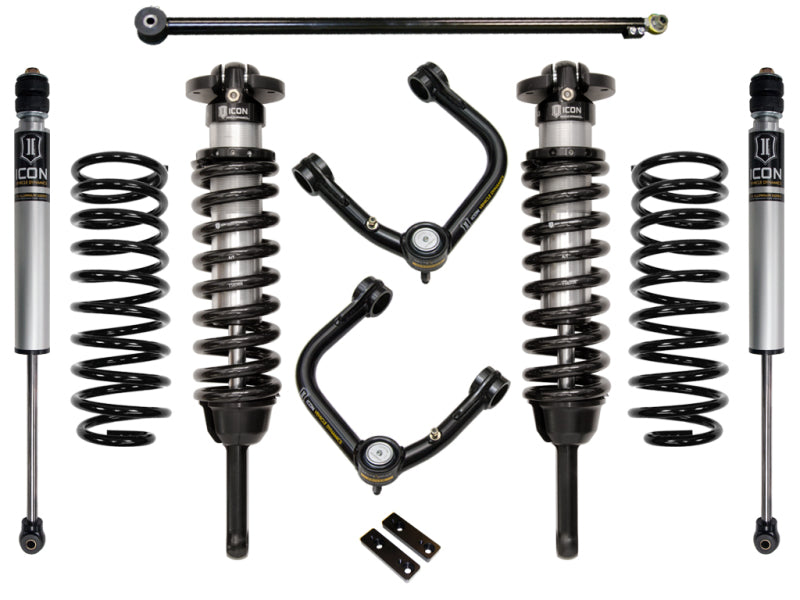

What's Included

• Pair of front 2.5" extended-travel coilovers with internal reservoirs (height-adjustable 0-3.5")
• Pair of tubular steel upper control arms with patented Delta Joint
• Rear 2" lift coil springs
• Rear 2.0 Aluminum Series internal-reservoir shocks
• Adjustable rear track bar (KDSS compatible)

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: K53182T
• Stage: Stage 2
• Front Lift: 0-3.5" (adjustable)
• Front Coilover: 2.5" diameter, internal reservoir, vehicle-specific valving
• Upper Control Arms: Tubular steel, patented Delta Joint (U.S. Pat. 10,731,700)
• Rear: 2" coil springs + 2.0 Aluminum Series reservoir shocks + adjustable track bar
• Adjustment: Manual coilover ride-height adjustment (CDCV)
• Position: Front and rear (complete system)

Fitment

Engineered specifically for the second-generation Lexus GX460 (2010-2023). Compatible with KDSS-equipped vehicles. Vehicles with factory rear air suspension require a separate rear coil conversion kit (#56110). Front reservoir brackets may require trimming on certain model years.

• 2010-2023 Lexus GX460
