ICON Stage 2 Suspension System for 2010-2023 Lexus GX460

Name: ICON Stage 2 Suspension System for 2010-2023 Lexus GX460
Brand: ICON
SKU: K53182
Price: 3699.7 USD
Availability: InStock

$3,699.70 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53182

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 0-3.5" of front lift for larger wheel and tire fitments
2.5" extended-travel front coilovers with internal reservoirs for fade-free damping
Billet aluminum Delta Joint upper control arms restore alignment and add durability
2" rear lift coils with 2.0 Aluminum Series reservoir shocks for a balanced stance
Adjustable rear track bar re-centers the axle and supports KDSS vehicles
Vehicle-specific tuned valving for confident on-road and off-road control
Complete bolt-on system requires no cutting or welding

The ICON K53182 Stage 2 Suspension System is a complete bolt-on kit for the 2010-2023 Lexus GX460, delivering 0-3.5 inches of front lift with non-adjustable vehicle-specific 2.5-inch front coilovers, billet aluminum Delta Joint upper control arms, rear coil springs, 2.0 Aluminum Series rear shocks, and an adjustable track bar.

Key Benefits

Adjustable 0-3.5" of front lift to clear larger, more aggressive wheel and tire combinations
Vehicle-specific tuned damping front and rear for a controlled ride on-road and off
Extended wheel travel for improved articulation on the trail
Billet aluminum Delta Joint upper control arms restore correct alignment geometry
Adjustable rear track bar keeps the rear axle centered, including on KDSS-equipped trucks
True bolt-on installation with no cutting or welding required

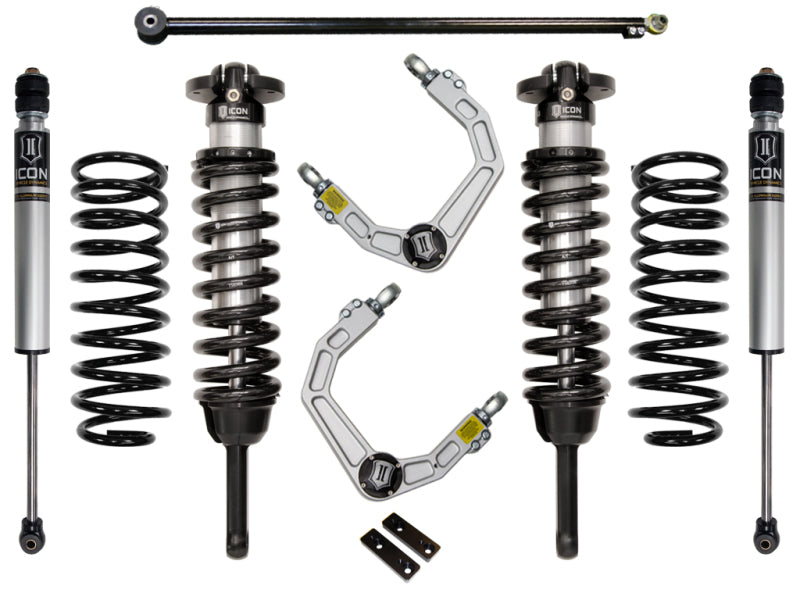

What's Included

Pair of 2.5" extended-travel front coilover shocks with internal reservoirs
Billet aluminum Delta Joint upper control arms
2" lift rear coil springs
2.0 Aluminum Series internal-reservoir rear shocks
Adjustable rear track bar
Mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53182
System Stage: Stage 2
Front Lift Range: 0-3.5 inches
Rear Lift: 2 inches
Front Shock: 2.5" coilover with internal reservoir
Valving: vehicle-specific (V.S.), non-adjustable damping
Upper Control Arms: Billet aluminum with Delta Joint
KDSS Compatible: Yes

Fitment

Engineered specifically for the first-generation Lexus GX460. Models equipped with factory rear air-ride suspension require ICON Rear Coil Conversion Kit #56110 (sold separately). Some model years may require minor trimming for front reservoir bracket clearance.

2010-2023 Lexus GX460 (front)

FAQ

Are the ICON K53182 coilovers adjustable in damping?

No. Stage 2 (K53182) uses non-adjustable vehicle-specific (V.S.) valving; the coilovers are height-adjustable but the damping is not. Only the Stage 7 K53187T adds CDC compression adjustment on the GX460.

Does the ICON K53182 include upper control arms?

Yes. K53182 includes billet aluminum Delta Joint upper control arms. K53182T is the same Stage 2 system with tubular steel Delta Joint arms.

Will the ICON K53182 fit a GX460 with factory rear air suspension?

Only with ICON's rear coil-conversion kit #56110 (sold separately).
