ICON Stage 1 Suspension System for 2010-2023 Lexus GX460

Name: ICON Stage 1 Suspension System for 2010-2023 Lexus GX460
Brand: ICON
SKU: K53181
Price: 2154.75 USD
Availability: InStock

$2,154.75 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53181

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5 inches of height-adjustable lift to fine-tune stance and tire clearance
Vehicle-specific 2.5 inch front coilovers with internal reservoir for consistent damping
ICON-engineered coil springs for superior feel through the full range of travel
Rear 2.0 Aluminum Series reservoir shocks balance performance front to rear
Adjustable rear track bar included for KDSS compatibility and alignment correction
Significantly reduces factory body roll for improved on- and off-road control
Complete front and rear system, no aftermarket upper control arms required

The ICON K53181 Stage 1 Suspension System is a complete bolt-on front-and-rear kit for the 2010-2023 Lexus GX460, delivering 0-3.5 inches of adjustable front lift with 2.5-inch front coilovers, 2.0 Aluminum Series rear shocks, rear coil springs, and an adjustable KDSS-compatible track bar.

Key Benefits

0-3.5 inches of height-adjustable lift to dial in your preferred stance and tire fitment
Vehicle-specific tuned 2.5 inch front coilovers with internal reservoir for superior heat management
Significantly reduces factory body roll for confident handling on the street and trail
Adjustable rear track bar included for KDSS compatibility and corrected rear-end alignment
Front-to-rear balanced valving for a controlled, planted ride

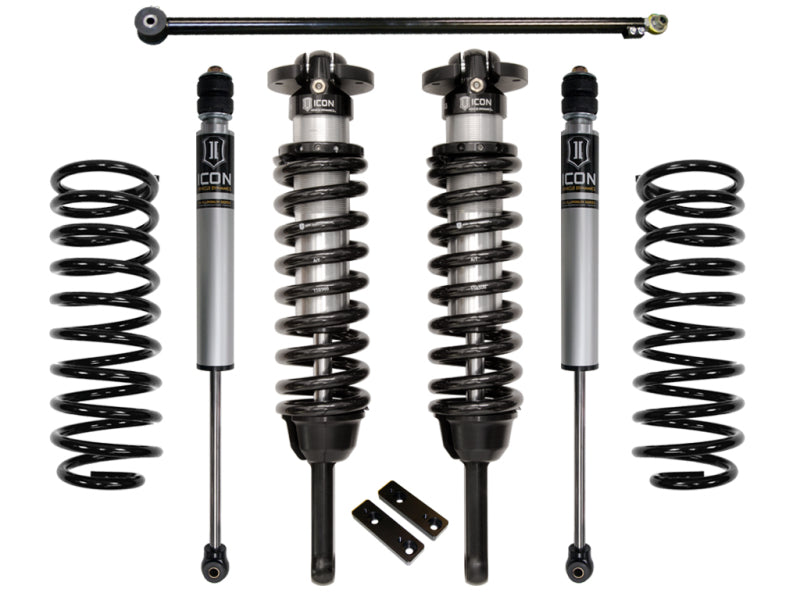

What's Included

Front: 2.5 inch coilover shocks with internal reservoir and ICON-engineered coil springs
Rear: ICON 2 inch lift coil springs
Rear: 2.0 Aluminum Series internal reservoir shocks with vehicle-specific valving
Adjustable rear track bar for KDSS-equipped vehicles
Mounting hardware

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53181
System: Stage 1
Lift Range: 0-3.5 inches adjustable (front)
Front Shocks: 2.5 inch coilover with internal reservoir
Rear Shocks: 2.0 Aluminum Series internal reservoir
Position: Front and Rear

Fitment

This kit is engineered specifically for the following vehicles:

2010-2023 Lexus GX460 (front and rear)

Note: Certain model years require minor trimming for front reservoir bracket fitment. GX460 models equipped with factory rear air-ride suspension require a separate rear coil conversion kit (ICON #56110), sold separately.

FAQ

Does the ICON K53181 require aftermarket upper control arms?

No. Stage 1 (K53181) uses 2.5-inch front coilovers with rear shocks, springs, and an adjustable track bar, and retains the factory upper control arms.

Will the ICON K53181 fit a GX460 with factory rear air suspension?

Only with ICON's rear coil-conversion kit #56110 (sold separately), which replaces the factory air bags.

Are the ICON K53181 shocks adjustable?

The coilovers are height-adjustable from 0-3.5 inches but use non-adjustable vehicle-specific damping.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010	Lexus	GX460	—	Front
2010	Lexus	GX460	—	Rear
2011	Lexus	GX460	—	Front
2011	Lexus	GX460	—	Rear
2012	Lexus	GX460	—	Front
2012	Lexus	GX460	—	Rear
2013	Lexus	GX460	—	Front
2013	Lexus	GX460	—	Rear
2014	Lexus	GX460	—	Front
2014	Lexus	GX460	—	Rear
2015	Lexus	GX460	—	Front
2015	Lexus	GX460	—	Rear
2016	Lexus	GX460	—	Front
2016	Lexus	GX460	—	Rear
2017	Lexus	GX460	—	Front
2017	Lexus	GX460	—	Rear
2018	Lexus	GX460	—	Front
2018	Lexus	GX460	—	Rear
2019	Lexus	GX460	—	Front
2019	Lexus	GX460	—	Rear
2020	Lexus	GX460	—	Front
2020	Lexus	GX460	—	Rear
2021	Lexus	GX460	—	Front
2021	Lexus	GX460	—	Rear
2022	Lexus	GX460	—	Front
2022	Lexus	GX460	—	Rear
2023	Lexus	GX460	—	Front
2023	Lexus	GX460	—	Rear
