2.5in remote-reservoir shocks front and rear stay cooler and damp consistently on long trails
CDCV manual valving offers 10 settings from soft street to firm off-road
One-piece impact-extruded aluminum cylinders resist corrosion and dissipate heat
FK rod-end bearings minimize deflection and extend longevity
6061 aircraft-grade CNC-machined components for precise fit
Tunable 0-3in lift without any electronic controller
No cutting or welding required for installation
The ICON K53083 Stage 3 Suspension System is a bolt-on CDCV shock system for the 1998-2007 Toyota Land Cruiser 100 Series and Lexus LX470, with 2.5 Series remote-reservoir CDCV shocks front and rear offering 10 external compression settings for up to 3 inches of lift; an aftermarket upper control arm is required.
Key Benefits
2.5in remote-reservoir shocks front and rear for cooler, more consistent damping on extended off-road runs
ICON CDCV valving with 10 manual settings dials ride quality from soft street comfort to firm trail control
One-piece impact-extruded aluminum cylinders resist corrosion and shed heat better than steel bodies
FK rod-end bearings reduce deflection and extend service life under abuse
6061 aircraft-grade CNC-machined components for precision fit and durability
No electronic controller required - all tuning is done by hand at the shock
What's Included

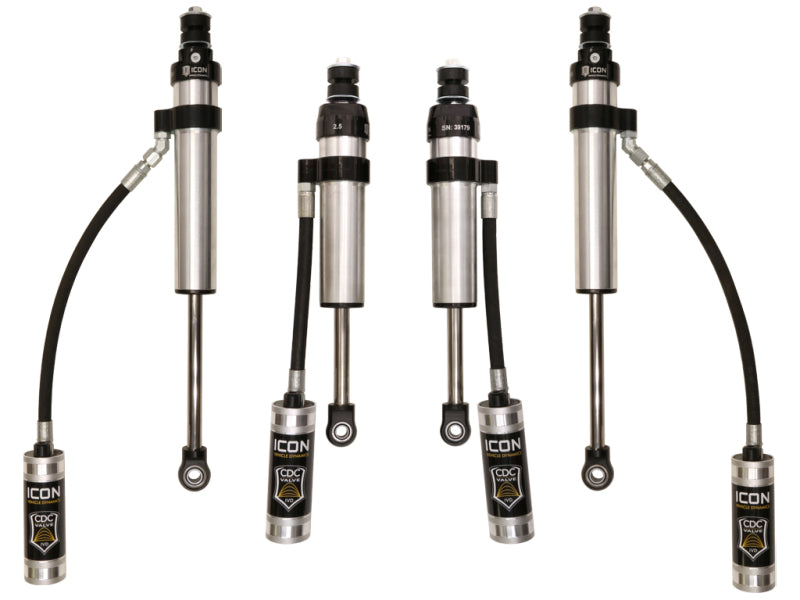

Pair of 2.5in CDCV remote-reservoir front shocks
Pair of 2.5in CDCV remote-reservoir rear shocks
ICON hardware and installation instructions
Fitment
Direct fit for the following vehicles. This is a shocks-only kit; aftermarket upper control arms are required for clearance, and additional components are needed to achieve lift height over stock.
1998-2007 Toyota Land Cruiser (100 Series)
1998-2007 Lexus LX470
FAQ
Does the ICON K53083 include upper control arms?
No. K53083 is a CDCV shock system (2.5 remote-reservoir shocks front and rear). An aftermarket upper control arm is required for clearance, and additional components are needed to reach the 3-inch lift.
Are the ICON K53083 shocks adjustable?
Yes. All four shocks are CDCV-equipped with 10 external compression-damping settings from soft to firm, adjusted by hand with no tools or electronics.
What is the difference between K53083 and K53082?
Both fit the 98-07 Land Cruiser 100 and LX470 and require an aftermarket upper control arm. Stage 2 (K53082) uses non-adjustable vehicle-specific shocks; Stage 3 (K53083) uses CDCV adjustable shocks front and rear.
Vehicle Fitment
Years
Make
Model
Submodel
Position
1998–2007
Lexus
LX470
—
Front
1998–2007
Toyota
Land Cruiser
—
Front
Specifications
notes
No cutting or welding necessary
stage
Stage 3
valve
CDCV
coverage
front and rear
lift range
0-3in
shock body
2.5in aluminum remote reservoir
valve type
CDCV (manual knob, 10 settings)
shocks only
yes
uca required
yes (aftermarket upper control arm for clearance)
controller required
no
