ICON Stage 2 Suspension System for 98-07 Land Cruiser 100/LX470

The ICON K53082 Stage 2 Suspension System is a bolt-on shock system for the 1998-2007 Toyota Land Cruiser 100 Series and Lexus LX470, using non-adjustable vehicle-specific 2.5 Series remote-reservoir shocks front and rear for up to 3 inches of lift; an aftermarket upper control arm is required.

Key Benefits

• Vehicle-specific 2.5-inch front and rear shocks tuned for the Land Cruiser 100 / LX470 chassis
• Remote reservoirs increase oil capacity and keep shocks cooler for extended off-road performance
• Supports up to 3 inches of lift for added ground clearance and larger tires
• 6061 aircraft-grade CNC-machined aluminum components resist corrosion and shed heat
• One-piece impact-extruded aluminum shock cylinders for strength and durability
• Lower spherical rod-end bearings and heavy-duty upper stem bushings minimize deflection
• No cutting or welding required for installation

What's Included

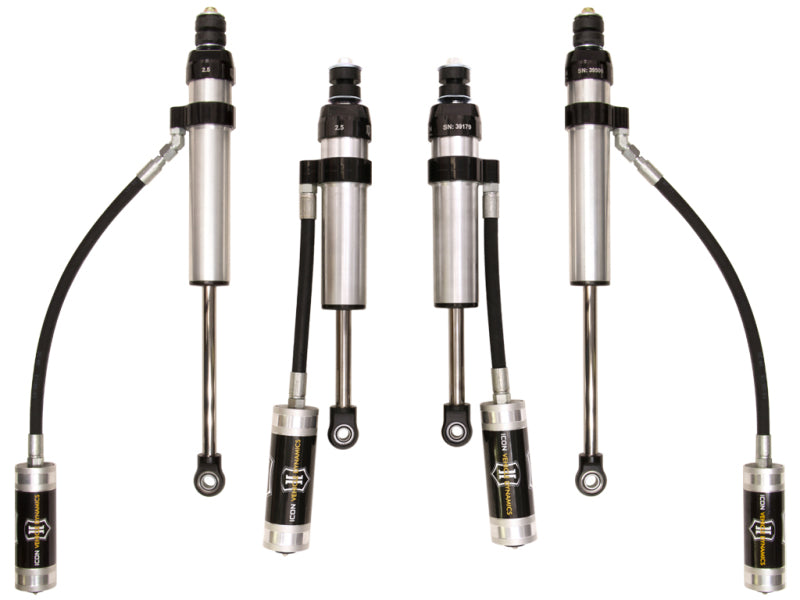

• Front 2.5-inch remote reservoir shocks (P/N 57807P)
• Rear 2.5-inch remote reservoir shocks (P/N 57802P)
• Remote reservoirs and mounting hardware

Specifications

• Lift range: 0-3 inches
• Shock body: 2.5-inch diameter, 2.5 Aluminum Series, remote reservoir (front and rear)
• Construction: 6061 aircraft-grade aluminum, one-piece impact-extruded cylinders
• Bearings: lower spherical rod end, heavy-duty upper stem bushings
• Aftermarket upper control arms required (see ICON Application Note #73)
• NOT compatible with AHC-equipped vehicles

Fitment

This system is engineered specifically for the following vehicles. Aftermarket upper control arms are required for proper clearance and alignment, and additional lift components are needed to reach the full 3 inches of height.

• 1998-2007 Toyota Land Cruiser (100 Series)
• 1998-2007 Lexus LX470
