ICON Stage 7 CDCV Suspension System for 2010-2024 Toyota 4Runner / FJ

Name: ICON Stage 7 CDCV Suspension System for 2010-2024 Toyota 4Runner / FJ
Brand: ICON
SKU: K53067T
Price: 6419.96 USD
Availability: InStock

$6,419.96 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53067T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0 to 3.5 inches of adjustable front lift to clear larger tires and level the stance
Extended-travel 2.5 Series remote-reservoir front coilovers for smooth, controlled damping
CDCV valving lets you adjust compression damping by hand for street or trail
Tubular-steel ICON Delta Joint upper control arms restore correct front geometry and add durable, high-angle articulation
Full billet rear-link package with adjustable track bar recenters and squares the rear axle
Complete bolt-on system with no cutting or welding required
6061 aircraft-grade aluminum CNC-machined components, rebuildable and serviceable

The ICON Vehicle Dynamics K53067T Stage 7 Suspension System is a complete bolt-on front-and-rear lift system for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460, delivering 0 to 3.5 inches of adjustable front lift with 2 inches of rear lift.

Key Benefits

0 to 3.5 inches of adjustable front lift to clear larger tires and level the stance
Extended-travel 2.5 Series remote-reservoir front coilovers for smooth, controlled damping
CDCV valving lets you adjust compression damping by hand for street or trail
Tubular-steel ICON Delta Joint upper control arms restore correct front geometry and add durable, high-angle articulation
Full billet rear-link package with adjustable track bar recenters and squares the rear axle
Complete bolt-on system with no cutting or welding required
6061 aircraft-grade aluminum CNC-machined components, rebuildable and serviceable

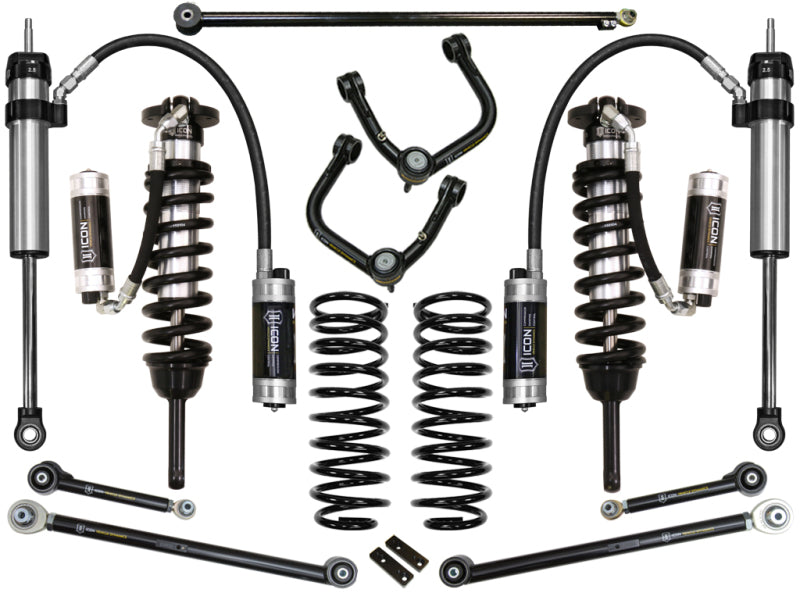

What's Included

Front extended-travel 2.5 Series remote-reservoir coilovers with CDCV manually adjustable valving (0 to 3.5 inches of adjustable lift)
Tubular-steel ICON Delta Joint upper control arms
Billet aluminum rear lower trailing arm kit
Billet aluminum rear upper trailing arm kit
Adjustable rear track bar (KDSS-compatible)
Rear 2.5 Aluminum Series remote-reservoir shocks with CDCV
Rear 2-inch lift coil springs
Mounting hardware

Sold as one complete Stage 7 front-and-rear suspension system for a single vehicle.

Fitment

The K53067T Stage 7 system is engineered specifically for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. All years share this ICON application; the front coilovers are matched to this chassis and the rear springs, shocks, and links are shared across the GX460 and 4Runner/FJ platforms.

2010-2024 Toyota 4Runner
2010-2014 Toyota FJ Cruiser
2010-2023 Lexus GX460

Does not fit the 2003-2009 Toyota 4Runner, 2007-2009 FJ Cruiser, or 2003-2009 Lexus GX470 (those use the K5305x series). It does not fit the 2024 Lexus GX550, which is a different platform. The K53067T ships with tubular-steel upper control arms; the K53067 is the identical system with billet aluminum Delta Joint upper control arms instead.

FAQ

Does the K53067T fit my GX460?

Yes. The K53067T Stage 7 system fits the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. It is a single ICON application covering all three vehicles for those years.

What is the difference between the K53067T and the K53067?

Both are the same Stage 7 system with the same coilovers, shocks, and springs. The K53067T includes tubular-steel ICON Delta Joint upper control arms, while the K53067 uses billet aluminum Delta Joint upper control arms.

Are the coilovers adjustable?

Yes. This system uses ICON CDCV (Compression Damping Control Valve) coilovers, so you can manually adjust compression damping to firm up the ride for the street or soften it for the trail.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010–2023	Lexus	GX460	—	Front
2010–2024	Toyota	4Runner	—	Front
2010–2014	Toyota	FJ Cruiser	—	Front

Specifications

material: 6061 aircraft-grade aluminum, CAD-plated coilover bodies, FK rod-end bearings
valve: CDCV
series: Stage 7
system: Stage 7 complete front-and-rear suspension system
install: bolt-on, no cutting or welding
rear lift: ~2 in
reservoir: remote
front lift: 0-3.5 in
rear links: billet aluminum upper and lower trailing arms plus adjustable track bar
rear shocks: 2.5 Aluminum Series remote-reservoir shocks with CDCV (CDCV adjustable)
system scope: complete front and rear
front coilover: extended-travel 2.5 Series remote-reservoir coilovers with CDCV manually adjustable valving
shock diameter: 2.5 in
kdss compatible: yes
recommended tire: 33 x 11.50
upper control arms: tubular-steel ICON Delta Joint upper control arms (included)
