ICON Stage 6 Tubular Suspension System for 2010-2024 Toyota 4Runner FJ

The ICON K53066T Stage 6 Suspension System transforms the on- and off-road performance of your 2010-2024 Toyota 4Runner or 2010-2014 FJ Cruiser. This complete front-and-rear package pairs height-adjustable 2.5" remote reservoir coilovers with tubular Delta Joint upper control arms and a fully tuned rear link setup for serious capability without cutting or welding.

Key Benefits

• Height-adjustable front coilovers deliver 0-3.5" of lift to clear larger tires and level the stance
• 2.5" remote reservoir shocks resist heat fade for consistent damping on long off-road runs
• Tubular Delta Joint upper control arms add caster, retain alignment, and survive high-angle abuse
• Adjustable rear track bar and tubular links recenter and control the rear axle at lift height
• Bolt-on installation with no cutting or welding required

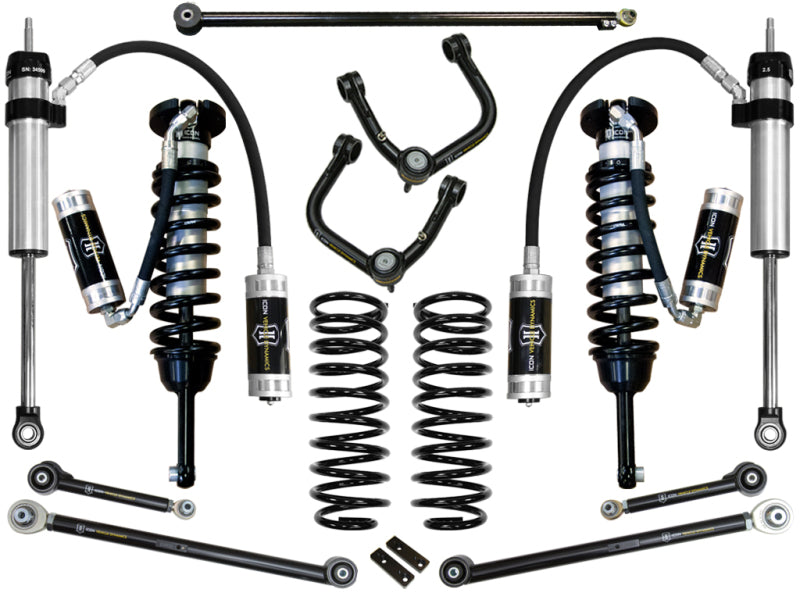

What's Included

• Two 2.5" remote reservoir front coilover shocks with ICON-tuned coil springs
• Two 2.5 Aluminum Series remote reservoir rear shocks
• Tubular Delta Joint upper control arm kit
• Rear coil springs (2" lift)
• Tubular rear upper and lower link arm kits
• Adjustable rear track bar

Specifications

• Front lift: 0-3.5" (adjustable)
• Rear lift: 2"
• Shock type: 2.5" remote reservoir, passive (non-electronic)
• Upper control arms: tubular Delta Joint (included)
• Materials: 6061 aircraft-grade aluminum CNC components, CAD-plated 7/8" shafts, FK rod end bearings
• Recommended tire: 33" x 11.50"

Fitment

Direct fit for the following Toyota models (front and rear):

• 2010-2024 Toyota 4Runner
• 2010-2014 Toyota FJ Cruiser
