ICON Stage 6 0-3.5in Suspension System for 2010-2024 Toyota 4Runner FJ

Take your 2010-2024 Toyota 4Runner or 2010-2014 FJ Cruiser to the next level of on- and off-road capability with ICON Vehicle Dynamics' top-tier Stage 6 Suspension System. This complete front-and-rear package combines tunable ride height, race-bred remote-reservoir damping, and fully adjustable billet rear geometry for a planted, level stance and serious trail performance.

Key Benefits

• 0-3.5in of adjustable front lift and 2in of rear lift for a level, aggressive stance
• 2.5 Series remote-reservoir coilovers and rear shocks for superior heat management and fade-free off-road control
• Billet aluminum Delta Joint upper control arms retain factory alignment and add strength over stock
• Fully adjustable rear billet links and track bar to dial in axle position and pinion angle
• Room for larger, more aggressive wheel and tire combinations (up to 33in with trimming)

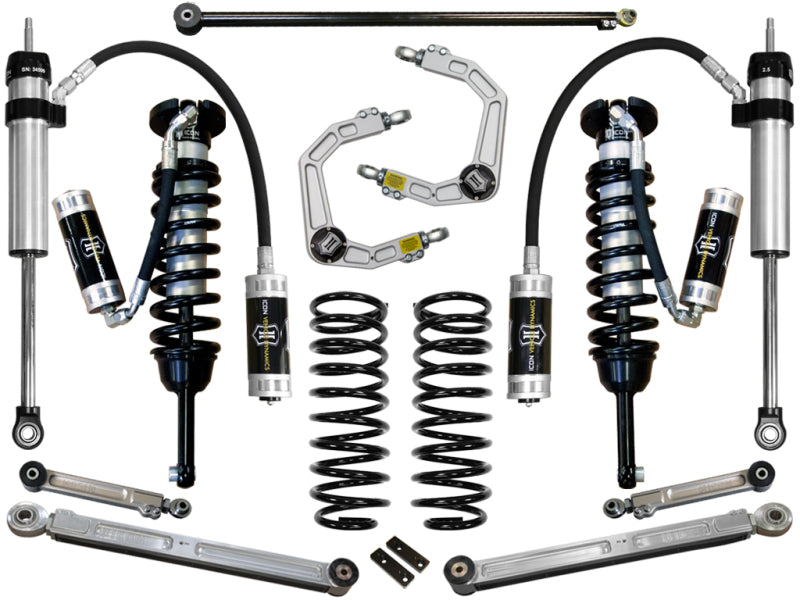

What's Included

• Extended-travel 2.5 Series remote-reservoir front coilovers (pair)
• Billet aluminum Delta Joint upper control arm kit
• 2.5 Aluminum Series remote-reservoir rear shocks (pair)
• Rear coil springs (2in lift)
• Billet aluminum rear upper and lower link kits
• Adjustable rear track bar
• Vehicle-specific mounting hardware

Specifications

• Front lift: 0-3.5in (height adjustable)
• Rear lift: 2in
• Damping: 2.5 Series remote-reservoir, vehicle-specific tuned, fully serviceable
• Upper control arms: billet aluminum with Delta Joint (included)
• KDSS compatible (front sway bar relocation brackets not used on KDSS vehicles)
• No electronic controller required

Fitment

Confirmed for the exact ICON part number K53066. Bolt-on installation with no cutting or welding required; professional alignment recommended after install.

• 2010-2024 Toyota 4Runner
• 2010-2014 Toyota FJ Cruiser
