ICON Stage 5 0-3.5in Suspension System for 2010-2024 Toyota 4Runner/FJ

Name: ICON Stage 5 0-3.5in Suspension System for 2010-2024 Toyota 4Runner/FJ
Brand: ICON
SKU: K53065
Price: 5855.21 USD
Availability: InStock

$5,855.21 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53065

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0 to 3.5 inches of adjustable front lift to clear larger tires and level the stance
Extended-travel 2.5 Series remote-reservoir front coilovers for smooth, controlled damping
2.5 Series remote-reservoir rear shocks with Bump Zone resist fade and control bottom-out
Billet aluminum ICON Delta Joint upper control arms restore correct front geometry and add durable, high-angle articulation
Billet aluminum rear lower trailing arms add strength and pinion-angle adjustment
Complete bolt-on system with no cutting or welding required
6061 aircraft-grade aluminum CNC-machined components, rebuildable and serviceable

The ICON Vehicle Dynamics K53065 Stage 5 Suspension System is a complete bolt-on front-and-rear lift system for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460, delivering 0 to 3.5 inches of adjustable front lift with 2 inches of rear lift.

Key Benefits

0 to 3.5 inches of adjustable front lift to clear larger tires and level the stance
Extended-travel 2.5 Series remote-reservoir front coilovers for smooth, controlled damping
2.5 Series remote-reservoir rear shocks with Bump Zone resist fade and control bottom-out
Billet aluminum ICON Delta Joint upper control arms restore correct front geometry and add durable, high-angle articulation
Billet aluminum rear lower trailing arms add strength and pinion-angle adjustment
Complete bolt-on system with no cutting or welding required
6061 aircraft-grade aluminum CNC-machined components, rebuildable and serviceable

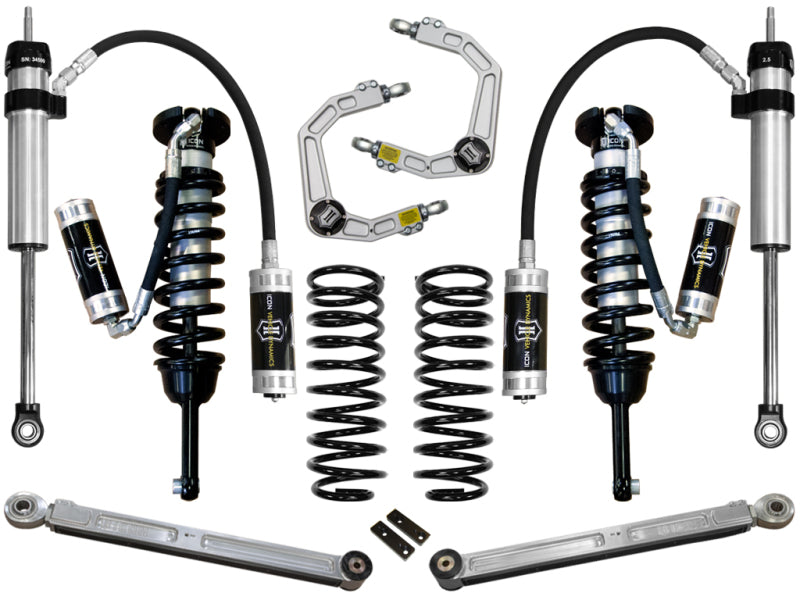

What's Included

Front extended-travel 2.5 Series remote-reservoir coilovers with vehicle-specific tuned (V.S.) valving (0 to 3.5 inches of adjustable lift)
Billet aluminum ICON Delta Joint upper control arms
Billet aluminum rear lower trailing arm kit (adjustable)
Rear 2.5 Aluminum Series remote-reservoir shocks with Bump Zone
Rear 2-inch lift coil springs
Mounting hardware

Sold as one complete Stage 5 front-and-rear suspension system for a single vehicle.

Fitment

The K53065 Stage 5 system is engineered specifically for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. All years share this ICON application; the front coilovers are matched to this chassis and the rear springs, shocks, and links are shared across the GX460 and 4Runner/FJ platforms.

2010-2024 Toyota 4Runner
2010-2014 Toyota FJ Cruiser
2010-2023 Lexus GX460

Does not fit the 2003-2009 Toyota 4Runner, 2007-2009 FJ Cruiser, or 2003-2009 Lexus GX470 (those use the K5305x series). It does not fit the 2024 Lexus GX550, which is a different platform. The K53065 ships with billet aluminum upper control arms; the K53065T is the identical system with tubular-steel Delta Joint upper control arms instead.

FAQ

Does the K53065 fit my GX460?

Yes. The K53065 Stage 5 system fits the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. It is a single ICON application covering all three vehicles for those years.

What is the difference between the K53065 and the K53065T?

Both are the same Stage 5 system with the same coilovers, shocks, and springs. The K53065 includes billet aluminum ICON Delta Joint upper control arms, while the K53065T uses tubular-steel Delta Joint upper control arms.

Do I need to cut or weld to install this system?

No. This is a complete bolt-on system that installs with hand tools using factory mounting points; no cutting or welding is required.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010–2023	Lexus	GX460	—	Front
2010–2024	Toyota	4Runner	—	Front
2010–2014	Toyota	FJ Cruiser	—	Front

Specifications

material: 6061 aircraft-grade aluminum, CAD-plated coilover bodies, FK rod-end bearings
valve: standard (2.5 Series remote reservoir, non-electronic)
system: Stage 5 complete front-and-rear suspension system
install: bolt-on, no cutting or welding; aftermarket UCAs included
max tire: 33 x 11.50
uca type: billet aluminum Delta Joint (included)
rear lift: 2 inches
front lift: 0 to 3.5 inches (adjustable)
lift range: 0-3.5 in front
rear links: billet 6061 aluminum adjustable lower links
rear shock: 2.5 Aluminum Series remote reservoir, 7/8in shaft
rear shocks: 2.5 Aluminum Series remote-reservoir shocks with Bump Zone
system scope: complete front and rear
front coilover: extended-travel 2.5 Series remote-reservoir coilovers with vehicle-specific tuned (V.S.) valving
upper control arms: billet aluminum ICON Delta Joint upper control arms (included)
