ICON Stage 4 Suspension System for 2010-2024 Toyota 4Runner FJ

Name: ICON Stage 4 Suspension System for 2010-2024 Toyota 4Runner FJ
Brand: ICON
SKU: K53064T
Price: 4471.85 USD
Availability: InStock

$4,471.85 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53064T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0 to 3.5 inches of adjustable front lift to clear larger tires and level the stance
Extended-travel 2.5 Series internal-reservoir front coilovers for smooth, controlled damping
2.5 Series remote-reservoir rear shocks with Bump Zone resist fade and control bottom-out
Tubular-steel ICON Delta Joint upper control arms restore correct front geometry and add durable, high-angle articulation
Billet aluminum rear lower trailing arms add strength and pinion-angle adjustment
Complete bolt-on system with no cutting or welding required
6061 aircraft-grade aluminum CNC-machined components, rebuildable and serviceable

The ICON Vehicle Dynamics K53064T Stage 4 Suspension System is a complete bolt-on front-and-rear lift system for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460, delivering 0 to 3.5 inches of adjustable front lift with 2 inches of rear lift.

Key Benefits

0 to 3.5 inches of adjustable front lift to clear larger tires and level the stance
Extended-travel 2.5 Series internal-reservoir front coilovers for smooth, controlled damping
2.5 Series remote-reservoir rear shocks with Bump Zone resist fade and control bottom-out
Tubular-steel ICON Delta Joint upper control arms restore correct front geometry and add durable, high-angle articulation
Billet aluminum rear lower trailing arms add strength and pinion-angle adjustment
Complete bolt-on system with no cutting or welding required
6061 aircraft-grade aluminum CNC-machined components, rebuildable and serviceable

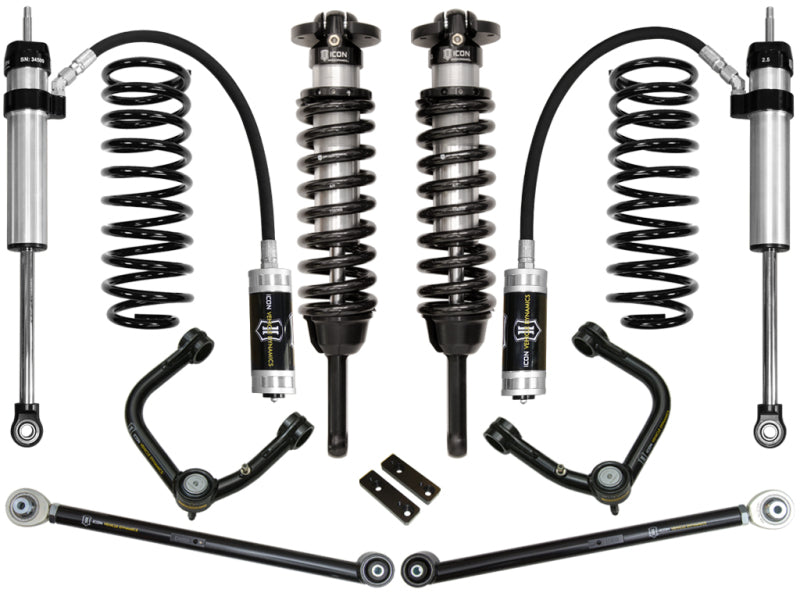

What's Included

Front extended-travel 2.5 Series internal-reservoir coilovers with vehicle-specific tuned (V.S.) valving (0 to 3.5 inches of adjustable lift)
Tubular-steel ICON Delta Joint upper control arms
Billet aluminum rear lower trailing arm kit (adjustable)
Rear 2.5 Aluminum Series remote-reservoir shocks with Bump Zone
Rear 2-inch lift coil springs
Mounting hardware

Sold as one complete Stage 4 front-and-rear suspension system for a single vehicle.

Specifications

Brand: ICON Vehicle Dynamics
Part number: K53064T
System: Stage 4 complete front-and-rear suspension system
Front lift: 0 to 3.5 inches (adjustable)
Rear lift: 2 inches
Front coilover: extended-travel 2.5 Series internal-reservoir coilovers with vehicle-specific tuned (V.S.) valving
Upper control arms: tubular-steel ICON Delta Joint upper control arms (included)
Rear links: billet aluminum lower trailing arms
Rear shocks: 2.5 Aluminum Series remote-reservoir shocks with Bump Zone
Construction: 6061 aircraft-grade aluminum, CAD-plated coilover bodies, FK rod-end bearings
Installation: bolt-on, no cutting or welding

Fitment

The K53064T Stage 4 system is engineered specifically for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. All years share this ICON application; the front coilovers are matched to this chassis and the rear springs, shocks, and links are shared across the GX460 and 4Runner/FJ platforms.

2010-2024 Toyota 4Runner
2010-2014 Toyota FJ Cruiser
2010-2023 Lexus GX460

Does not fit the 2003-2009 Toyota 4Runner, 2007-2009 FJ Cruiser, or 2003-2009 Lexus GX470 (those use the K5305x series). It does not fit the 2024 Lexus GX550, which is a different platform. The K53064T ships with tubular-steel upper control arms; the K53064 is the identical system with billet aluminum Delta Joint upper control arms instead.

FAQ

Does the K53064T fit my GX460?

Yes. The K53064T Stage 4 system fits the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. It is a single ICON application covering all three vehicles for those years.

What is the difference between the K53064T and the K53064?

Both are the same Stage 4 system with the same coilovers, shocks, and springs. The K53064T includes tubular-steel ICON Delta Joint upper control arms, while the K53064 uses billet aluminum Delta Joint upper control arms.

Do I need to cut or weld to install this system?

No. This is a complete bolt-on system that installs with hand tools using factory mounting points; no cutting or welding is required.
