ICON Stage 4 2.5 Suspension System for 2010-2024 Toyota 4Runner/FJ

Build a do-it-all overlanding and trail machine with ICON Vehicle Dynamics' Stage 4 Suspension System for the 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser. This complete front-and-rear package transforms ride quality on pavement while unlocking serious wheel travel and damping control when the road ends.

Key Benefits

• 0-3.5 inches of height-adjustable front lift to clear larger tires and level the stance
• Extended-travel 2.5 Series front coilovers with internal reservoir for cooler, fade-resistant performance
• Billet aluminum Delta Joint upper control arms restore proper alignment geometry and add caster/camber adjustment at lift height
• 2.5 Series remote-reservoir rear shocks with Bump Zone technology prevent harsh bottom-out
• True bolt-on install with no cutting or welding required

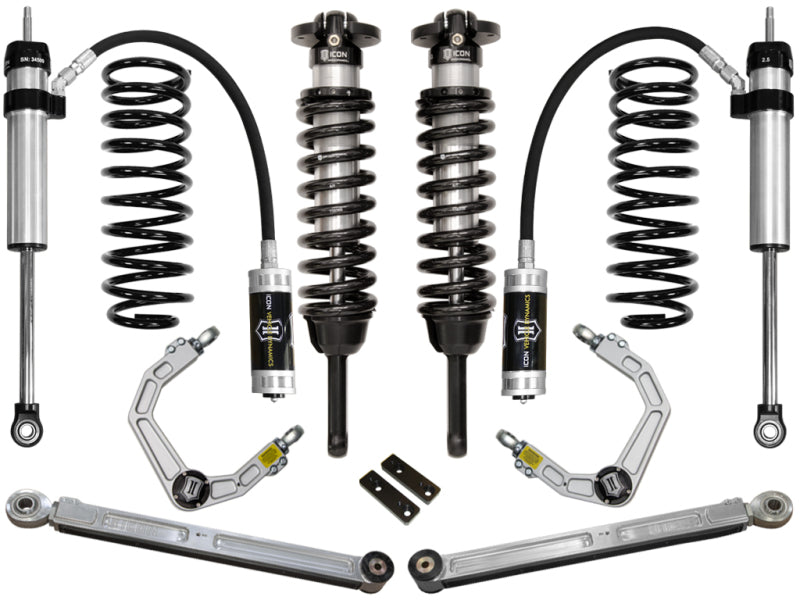

What's Included

• Extended-travel 2.5 Series front coilover shocks with ICON-engineered coil springs
• Billet aluminum Delta Joint upper control arm kit
• 2.5 Series aluminum remote-reservoir rear shocks
• Rear coil spring kit (2 inch rear lift)
• Billet aluminum rear lower link arm kit

Specifications

• Front lift: 0-3.5 inches (height adjustable)
• Rear lift: approximately 2 inches
• Front shock: 2.5 Series extended-travel coilover, internal reservoir, standard CDC valving (non-adjustable)
• Rear shock: 2.5 Series aluminum remote reservoir with Bump Zone
• UCA: billet aluminum Delta Joint, 6061 aircraft-grade CNC-machined
• Position: front coilovers and UCAs plus matched rear shocks, springs, and links

Fitment

Verified for the exact part number K53064 (billet UCA). Does not fit Lexus GX (separate ICON part numbers). KDSS-equipped vehicles require rear track bar P/N 54200; GX air-ride conversion does not apply to this Toyota kit.

• 2010-2024 Toyota 4Runner (5th generation)
• 2010-2014 Toyota FJ Cruiser
