ICON Stage 3 Tubular UCA System for 2010-24 Toyota 4Runner/FJ

Take your 2010-2024 Toyota 4Runner or 2010-2014 FJ Cruiser to the next level with the ICON K53063T Stage 3 Suspension System. This complete, bolt-on package delivers up to 3.5 inches of front lift and 2 inches of rear lift while dramatically increasing wheel travel, damping, and on- and off-road control. No cutting or welding required.

Key Benefits

• Height-adjustable 2.5 in front coilovers dial in 0-3.5 in of front lift to clear larger, more aggressive wheel and tire combinations
• Internal-reservoir shocks add fluid capacity for superior cooling and consistent damping during hard use
• Tubular Delta Joint upper control arms add strength, retain factory alignment specs, and add caster over stock
• Rear coil springs and tubular steel lower links level the stance and allow pinion-angle adjustment
• Vehicle-specific valving balances ride quality front to rear for a refined daily-driver feel

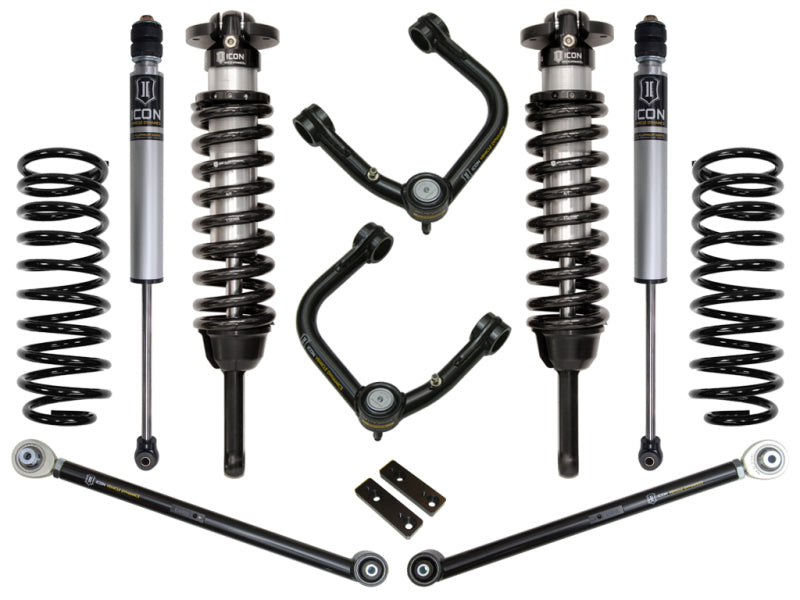

What's Included

• Pair of extended-travel 2.5 in front coilover shocks with internal reservoir
• ICON-engineered front coil springs
• Tubular Delta Joint upper control arms (UCAs)
• 2.0 Aluminum Series internal-reservoir rear shocks
• ICON rear coil springs (2 in lift)
• Tubular steel rear lower links with multi-durometer bushings

Specifications

• Front lift: 0-3.5 in (adjustable)
• Rear lift: 2 in
• Front shock: 2.5 in coilover, internal reservoir, manual height adjustment
• Rear shock: 2.0 Aluminum Series, internal reservoir
• Upper control arms: tubular Delta Joint
• Install: bolt-on, no cutting or welding

Fitment

Verified for ICON part number K53063T:

• 2010-2024 Toyota 4Runner (front and rear)
• 2010-2014 Toyota FJ Cruiser (front and rear)
