ICON Stage 1 0-3.5" Suspension System for 10-24 4Runner/FJ

Take your 5th-gen Toyota 4Runner or FJ Cruiser to the next level with the ICON Vehicle Dynamics Stage 1 Suspension System. This complete front-and-rear package replaces tired, body-rolling factory shocks with race-bred ICON components for a smoother ride on the street and confident control off the pavement.

Key Benefits

• Levels the front end and adds up to 3.5" of adjustable lift for larger tires
• Vehicle-specific shock tuning dials out factory body roll and nose-dive
• Improves on-road comfort and high-speed stability while boosting off-road wheel travel
• Matched front and rear damping for balanced, predictable handling
• Clears up to 33x11.50 tires (minor trimming may be required for larger sizes)

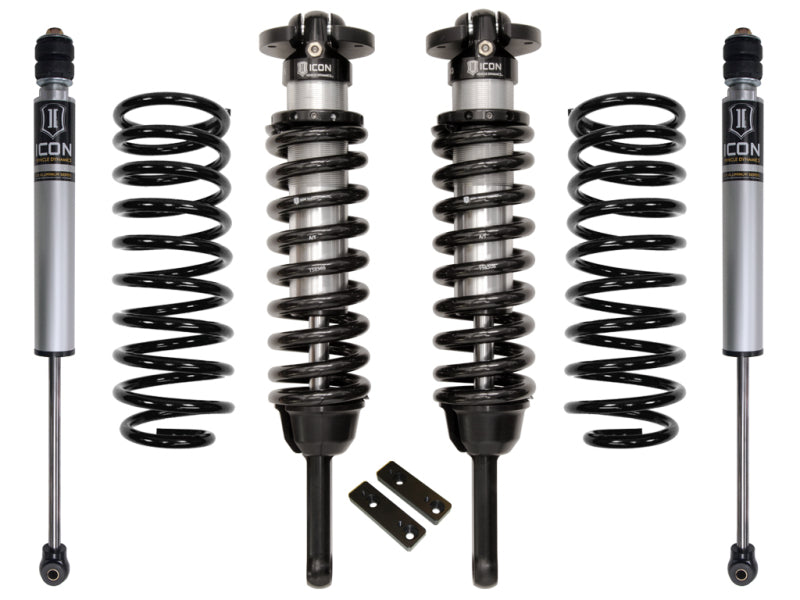

What's Included

• Pair of front 2.5 Series IR coilover shocks with vehicle-specific tune (adjustable 0-3.5")
• Pair of rear 2.0 Aluminum Series IR shocks
• Pair of 2" lift rear coil springs
• Mounting hardware

Specifications

• Front: 2.5 Series Internal Reservoir coilover, adjustable 0-3.5" lift
• Rear: 2.0 Aluminum Series Internal Reservoir shock with 2" lift springs
• Valving: Standard ICON vehicle-specific tune (non-electronic)
• Recommended max tire: 33x11.50
• Adjustable rear track bar recommended (App Note #30), not required

Fitment

Direct fit for the following Toyota models:

• 2010-2024 Toyota 4Runner
• 2010-2014 Toyota FJ Cruiser
