ICON Stage 10 CDCV Suspension System for 05-23 Toyota Tacoma

Name: ICON Stage 10 CDCV Suspension System for 05-23 Toyota Tacoma
Brand: ICON
SKU: K53010T
Price: 6333.53 USD
Availability: InStock

$6,333.53 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53010T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete front-and-rear ICON Stage 10 system tuned for the Tacoma chassis
CDCV manual compression adjuster with 10 levels of front damping control
Tubular upper control arms with patented Delta Joint for travel and durability
RXT multi-rate rear leaf springs ride smooth empty and firm up under load
Rear 2.5 Series Omega bypass shocks for fade-free off-road control
Remote-reservoir front coilovers manage heat for consistent damping
0-3.5 in (05-15) and 0-2.75 in (16-23) adjustable front lift clears 33 in tires

Take your Toyota Tacoma to the highest tier of ICON's bolt-on performance with the Stage 10 Suspension System. This complete front-and-rear package is engineered to maximize wheel travel and damping control, delivering outstanding stability and ride quality whether you're commuting, towing, or pushing hard off-road.

Key Benefits

Complete front and rear system tuned specifically for the Tacoma chassis
End-user adjustable CDCV compression damping with 10 levels of front control for any terrain or load
Tubular upper control arms with patented Delta Joint for added travel, durability, and correct geometry
RXT multi-rate rear leaf springs and Omega bypass shocks for a smooth empty ride that firms up under load
Remote-reservoir 2.5 Series coilovers for superior heat management and consistent damping

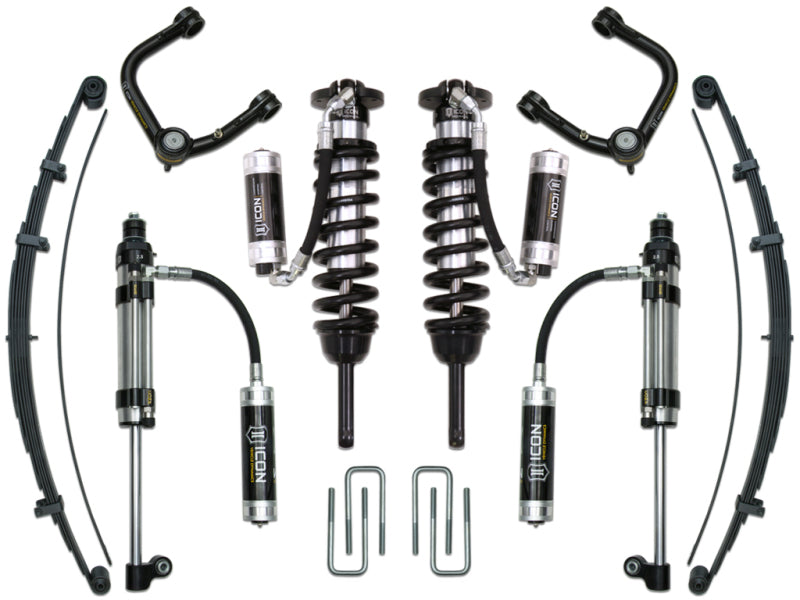

What's Included

Front 2.5 Series Extended Travel coilover shocks with remote reservoirs and CDCV adjusters
Tubular Delta Joint upper control arms

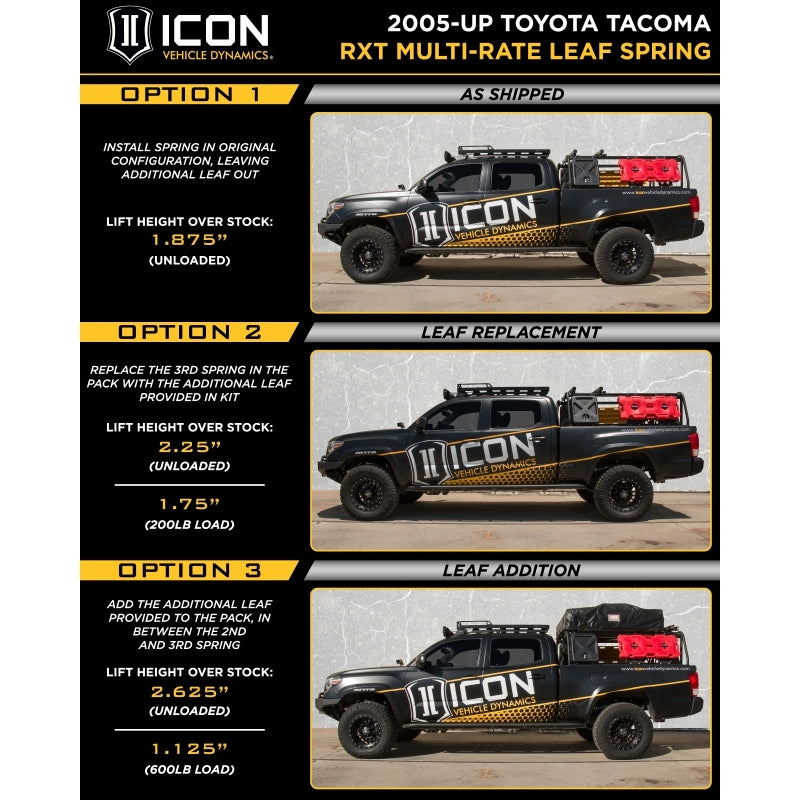

Rear RXT multi-rate leaf springs with adjustable add-in leaf
Rear 2.5 Aluminum Series RXT Omega bypass shocks

Specifications

Series: ICON 2.5 / Stage 10
Valve type: CDCV (Compression Damping Control Valve, manually adjustable, 10 front levels)
Front lift: 0-3.5 in (2005-2015), 0-2.75 in (2016-2023)
Upper control arms: Tubular steel with Delta Joint
Recommended tire: 33 x 11.50 in
Position: Front and rear

Fitment

Fits 2005-2023 Toyota Tacoma, 6-lug models only. Not compatible with 2WD 5-lug Tacoma. Installation of the complete ICON system is required to achieve advertised wheel travel; mixing other manufacturers' components is not supported. Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install.

2005-2015 Toyota Tacoma - front and rear (0-3.5 in front lift)
2016-2023 Toyota Tacoma - front and rear (0-2.75 in front lift)

FAQ

Will this ICON Stage 10 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53010T provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 10 system and the other ICON Tacoma stages?

Stage 10 tops the range with CDCV front coilovers and 2.5 Series RXT Omega bypass rear shocks plus the RXT multi-rate leaf pack. This complete system includes ICON tubular Delta Joint upper control arms. This is the tubular upper-control-arm version; ICON K53010 is the billet-UCA version.
