ICON Stage 10 CDCV Suspension System for 05-23 Toyota Tacoma

Name: ICON Stage 10 CDCV Suspension System for 05-23 Toyota Tacoma
Brand: ICON
SKU: K53010
Price: 6913.53 USD
Availability: InStock

$6,913.53 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53010

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

CDC Valve front coilovers give 10 levels of tool-free, end-user compression adjustment
2.5 Series extended-travel coilovers add front droop travel for better high-speed control
Billet aluminum upper control arms with Delta Joints restore geometry and clear bigger tires
RXT multi-rate rear leaf springs balance load capacity with an unloaded comfortable ride
Remote-reservoir front and rear shocks dissipate heat and resist fade off-road
Adjustable front lift up to 3.5 in. (05-15) or 2.75 in. (16-23) fits larger wheel/tire combos
Complete bolt-on Stage 10 system addresses both front and rear suspension

Transform your Toyota Tacoma's ride and capability with the ICON Vehicle Dynamics Stage 10 Suspension System (K53010). This complete front-and-rear package delivers race-bred damping control, increased wheel travel, and a level, aggressive stance for 2005-2023 6-lug Tacoma 4WD and PreRunner trucks.

Key Benefits

End-user adjustable front damping with ICON's CDC Valve - 10 levels of compression control with no tools required
2.5 Series extended-travel front coilovers add droop travel and soak up rough terrain at speed
Billet aluminum upper control arms with Delta Joints correct geometry and clear larger tires
RXT multi-rate rear leaf springs carry loads while keeping an unloaded ride comfortable
Remote-reservoir front and rear shocks resist heat fade on long off-road runs
Adjustable ride height to dial in 0-3.5 in. (05-15) or 0-2.75 in. (16-23) of front lift

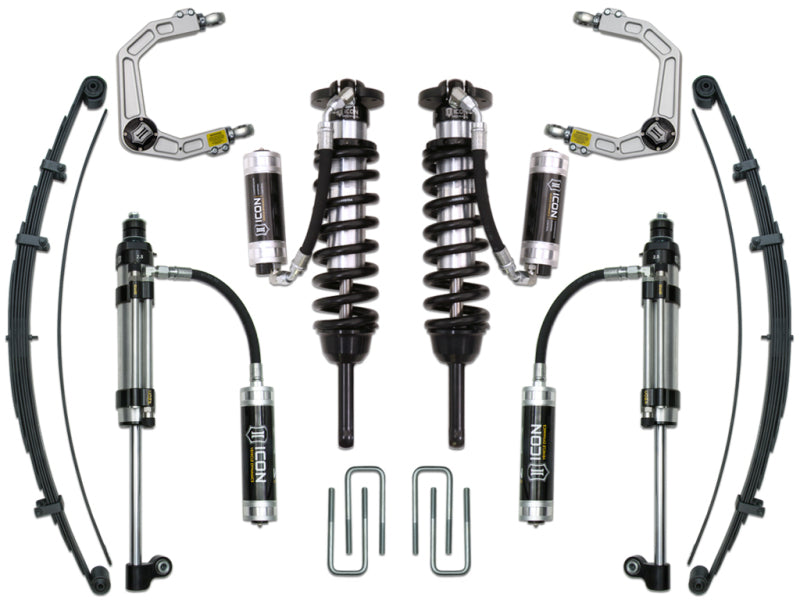

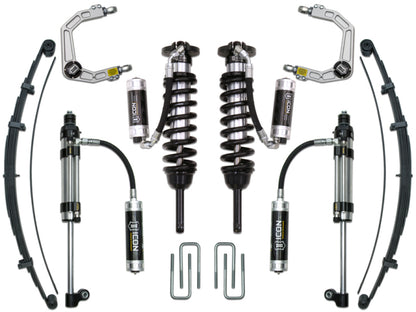

What's Included

Pair of 2.5 Series Extended Travel front coilovers with remote reservoirs and CDCV adjusters
Billet aluminum upper control arm kit with Delta Joints

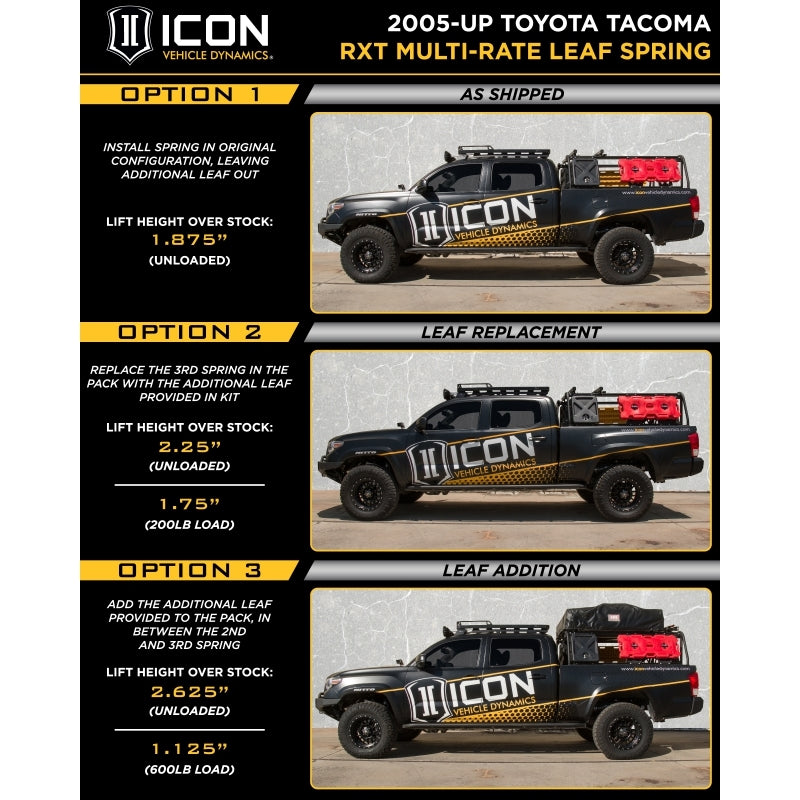

RXT multi-rate rear leaf springs with add-a-leaf and U-bolt kit
2.5 Aluminum Series RXT Omega bypass rear shocks with 10 in. remote reservoirs
Mounting hardware and bushings

Specifications

Brand: ICON Vehicle Dynamics
System: Stage 10 (complete front and rear)
Front valve: CDCV (manual CDC compression knob, 10 levels)
Upper control arms: Billet aluminum with Delta Joints
Front lift: 0-3.5 in. (2005-2015) / 0-2.75 in. (2016-2023)
Fits 6-lug 4WD and PreRunner Tacoma only

Fitment

Fits 2005-2023 Toyota Tacoma 6-lug 4WD and PreRunner trucks. This is the billet upper control arm version (K53010); a tubular UCA version is sold separately. 2024+ Tacoma uses a different ICON system.

2005-2023 Toyota Tacoma (6-lug 4WD / PreRunner), front and rear

FAQ

Will this ICON Stage 10 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53010 provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 10 system and the other ICON Tacoma stages?

Stage 10 tops the range with CDCV front coilovers and 2.5 Series RXT Omega bypass rear shocks plus the RXT multi-rate leaf pack. This complete system includes ICON billet Delta Joint upper control arms. This is the billet upper-control-arm version; ICON K53010T is the tubular-UCA version.
