ICON Stage 9 CDCV Suspension System for 2005-2023 Toyota Tacoma

Name: ICON Stage 9 CDCV Suspension System for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: K53009T
Price: 5690.43 USD
Availability: InStock

$5,690.43 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53009T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete front and rear Stage 9 system - factory-matched components in one kit
2.5 Series extended-travel coilovers add lift and front droop travel
CDCV manual compression valving with 10 levels of on-the-fly adjustment
Delta Joint tubular upper control arms restore alignment and add articulation
RXT multi-rate rear leaf springs balance load capacity with ride comfort
Rear 2.5 Series aluminum remote-reservoir shocks for fade-free cooling
Fully rebuildable and serviceable for long-term durability

Take your Toyota Tacoma from stock to trail-ready with the ICON Stage 9 Suspension System (K53009T) - a complete, factory-engineered front and rear package that delivers increased lift, dramatically more wheel travel, and tunable on-road comfort for 2005-2023 4WD Tacomas.

Key Benefits

Complete front and rear system - no guesswork matching components
2.5 Series extended-travel coilovers add lift and significant front droop travel
CDCV manually adjustable compression valving lets you dial in ride quality on the fly
Tubular upper control arms with the patented Delta Joint correct alignment and add high-angle articulation
RXT multi-rate rear leaf springs improve load handling without a harsh empty ride
Fully rebuildable and serviceable shocks protect your investment

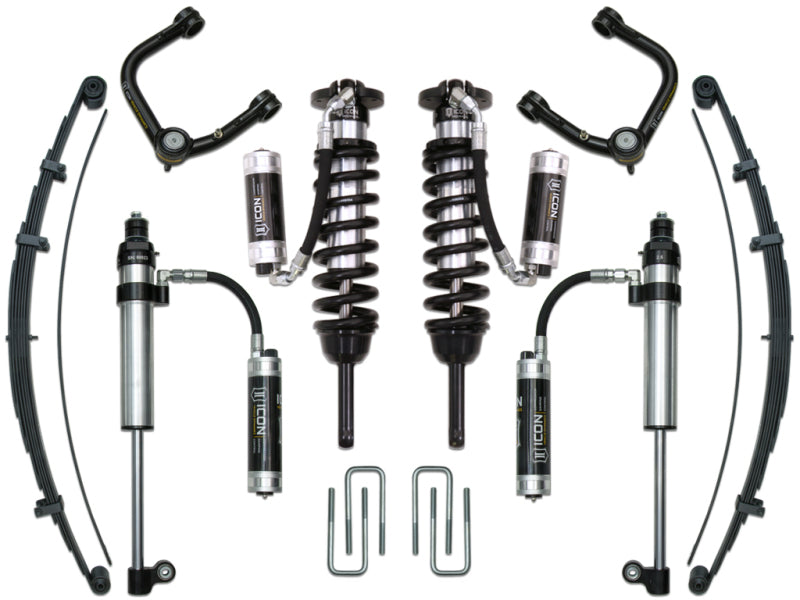

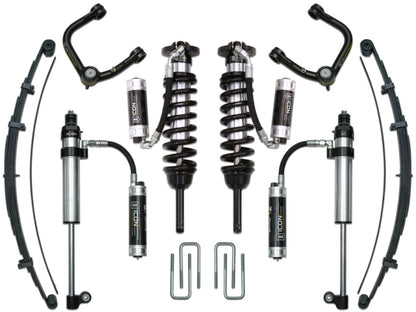

What's Included

Front 2.5 Series extended-travel coilovers with remote reservoirs and CDCV valving
Tubular upper control arms with Delta Joint technology
RXT multi-rate rear leaf springs with add-in leaf
Rear 2.5 Series aluminum remote-reservoir shocks
U-bolt and mounting hardware kit

Specifications

Front lift: 0-3.5 in (2005-2015), 0-2.75 in (2016-2023)
TRD Pro front lift: 0-1.25 in (reduced range)

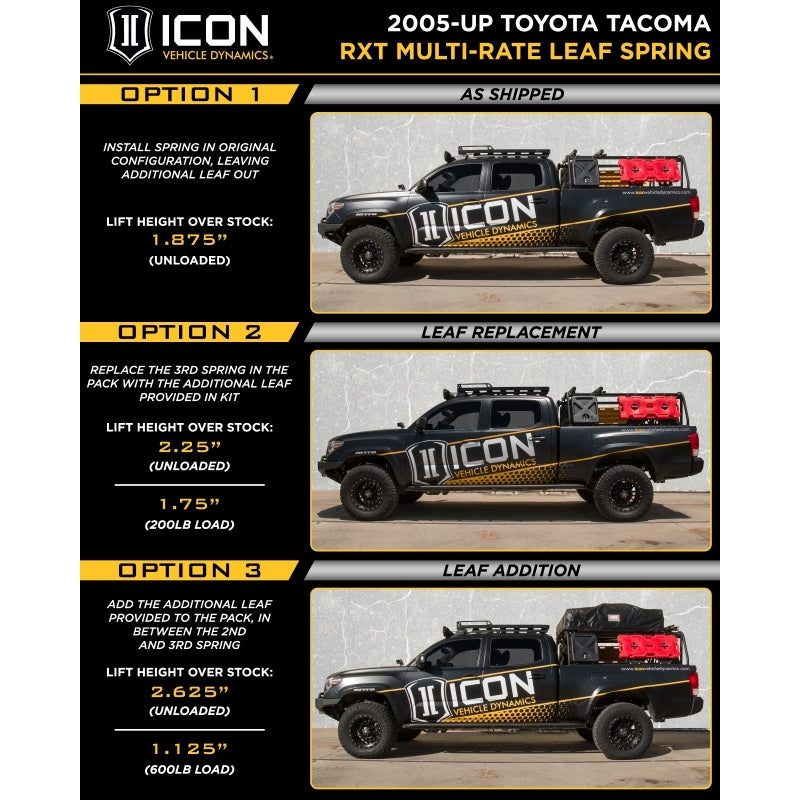

Rear lift: approximately 1.875-2.625 in depending on configuration
Coilover series: 2.5 Series extended travel, remote reservoir
Valve type: CDCV manual compression adjuster (10 levels)
Upper control arms: tubular with Delta Joint
Drivetrain: 4WD / 6-lug models only

Fitment

Engineered specifically for the 2005-2023 Toyota Tacoma 4WD (6-lug). Does not fit 2WD 5-lug models. TRD Pro models have reduced lift ranges. Recommended 33x11.50 tires may require fender trimming; ADAS recalibration is advised after installation.

2005-2015 Toyota Tacoma 4WD - front, 0-3.5 in
2016-2023 Toyota Tacoma 4WD - front, 0-2.75 in

FAQ

Will this ICON Stage 9 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53009T provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 9 system and the other ICON Tacoma stages?

Stage 9 adds CDCV compression adjustment front and rear on top of the Stage 8 RXT multi-rate leaf pack. This complete system includes ICON tubular Delta Joint upper control arms. This is the tubular upper-control-arm version; ICON K53009 is the billet-UCA version.
