ICON Stage 9 CDCV Suspension System for 2005-2023 Toyota Tacoma

Name: ICON Stage 9 CDCV Suspension System for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: K53009
Price: 6270.43 USD
Availability: InStock

$6,270.43 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53009

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Up to 3.5 in. of adjustable front lift clears larger tires and adds ground clearance
2.5 Series extended-travel front coilovers boost wheel travel and ride control over stock
CDCV adjusters dial in compression damping by hand with no tools
Billet aluminum upper control arms with Delta Joint correct geometry and add alignment range
RXT multi-rate rear leaf springs improve load capacity and ride quality
Matched 2.5 Series rear shocks keep the rear planted on rough terrain
Complete bolt-on system requires no cutting or welding

Take your Toyota Tacoma from stock to trail-ready with the ICON Stage 9 Suspension System (K53009), a complete front-and-rear package engineered for the 2005-2023 Tacoma. It delivers serious wheel travel, ride-height adjustability and tuned damping front and rear, all backed by ICON's race-bred 2.5 Series hardware.

Key Benefits

Up to 3.5 inches of front lift (2005-2015) or 2.75 inches (2016-2023) for larger tires and added ground clearance
2.5 Series extended-travel front coilovers add wheel travel and control over stock
CDCV (Compression Damping Control Valve) lets you fine-tune ride firmness by hand, no tools required
Billet aluminum upper control arms with Delta Joint correct front-end geometry and add camber/caster adjustment
RXT multi-rate rear leaf springs and matched 2.5 Series rear shocks improve load capacity and ride quality
Bolt-on installation with no cutting or welding required

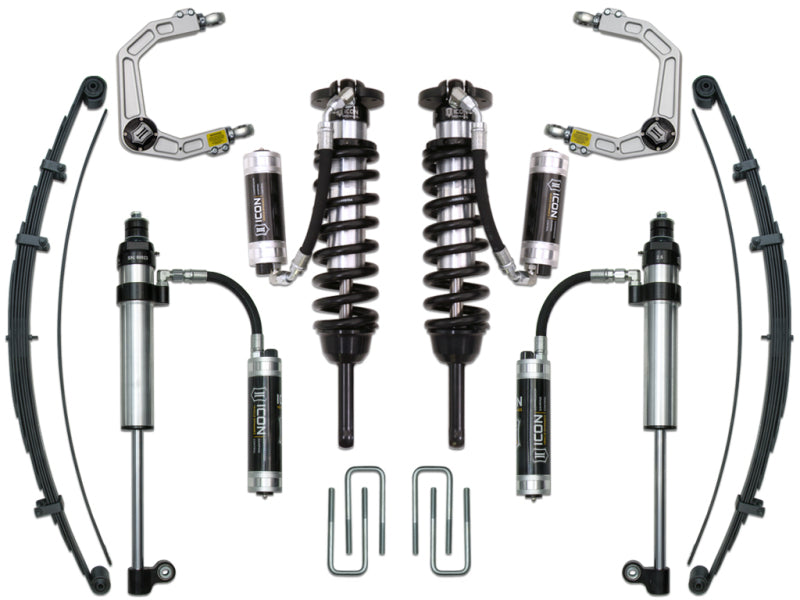

What's Included

Pair of 2.5 Series Extended Travel front coilovers with remote reservoirs, 7/8 in. shaft and CDCV adjusters
ICON-engineered front coil springs
Pair of billet aluminum upper control arms with Delta Joint

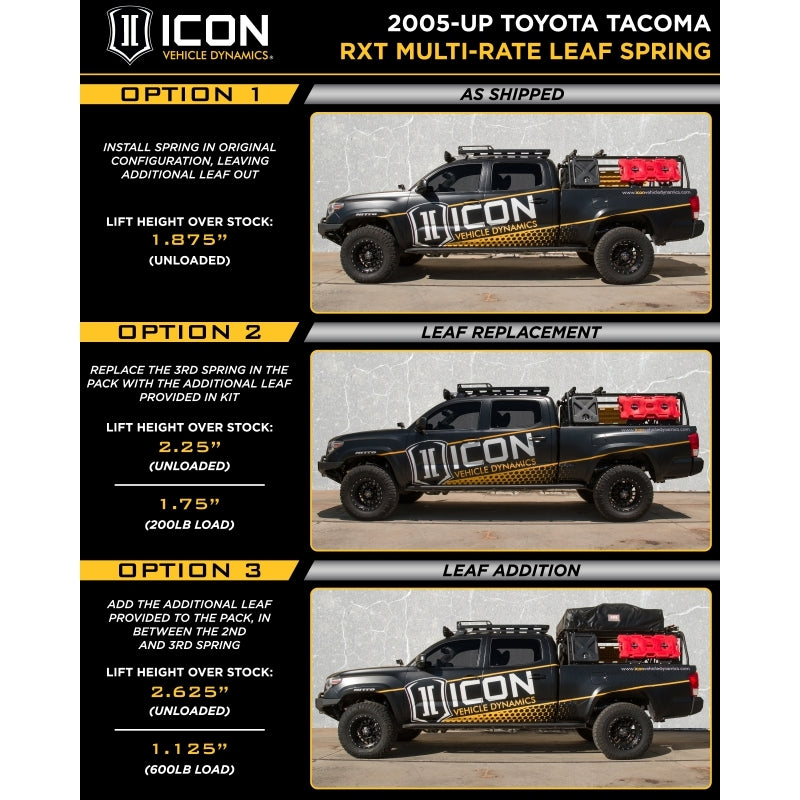

ICON RXT multi-rate rear leaf springs
Pair of 2.5 Series remote-reservoir RXT rear shocks with CDCV
Mounting hardware

Fitment

Fits 6-lug 4WD and PreRunner Toyota Tacoma. Fender trimming may be required when running 33-inch tires.

2005-2023 Toyota Tacoma (front and rear)

FAQ

Will this ICON Stage 9 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53009 provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 9 system and the other ICON Tacoma stages?

Stage 9 adds CDCV compression adjustment front and rear on top of the Stage 8 RXT multi-rate leaf pack. This complete system includes ICON billet Delta Joint upper control arms. This is the billet upper-control-arm version; ICON K53009T is the tubular-UCA version.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

rear: RXT multi-rate leaf springs with 2.5 Series remote reservoir shocks
valve: CDCV
system: Stage 9 (complete front and rear)
install: Bolt-on, no cutting or welding
drivetrain: 6-lug 4WD / PreRunner
front lift: 0-3.5 in. (2005-2015), 0-2.75 in. (2016-2023)
front shock: 2.5 Series extended travel coilover, remote reservoir, 7/8 in shaft
system stage: Stage 9
front lift 05 15: 0-3.5 in
front lift 16 23: 0-2.75 in
damping adjustment: CDCV (manual compression knob)
upper control arms: Billet aluminum with Delta Joint
