ICON Stage 8 Suspension System Tubular UCA for 2005-2023 Toyota Tacoma

Name: ICON Stage 8 Suspension System Tubular UCA for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: K53008T
Price: 5099.23 USD
Availability: InStock

$5,099.23 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53008T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete bolt-on Stage 8 front and rear suspension system, no cutting or welding
Height-adjustable front lift up to 3.5 in. (2005-2015) or 2.75 in. (2016-2023)
ICON-tuned velocity-sensitive valving balances on-road comfort with off-road control
2.5 Series Extended Travel coilovers with remote reservoirs resist heat and fade
Tubular upper control arms with ICON Delta Joint correct geometry and add caster

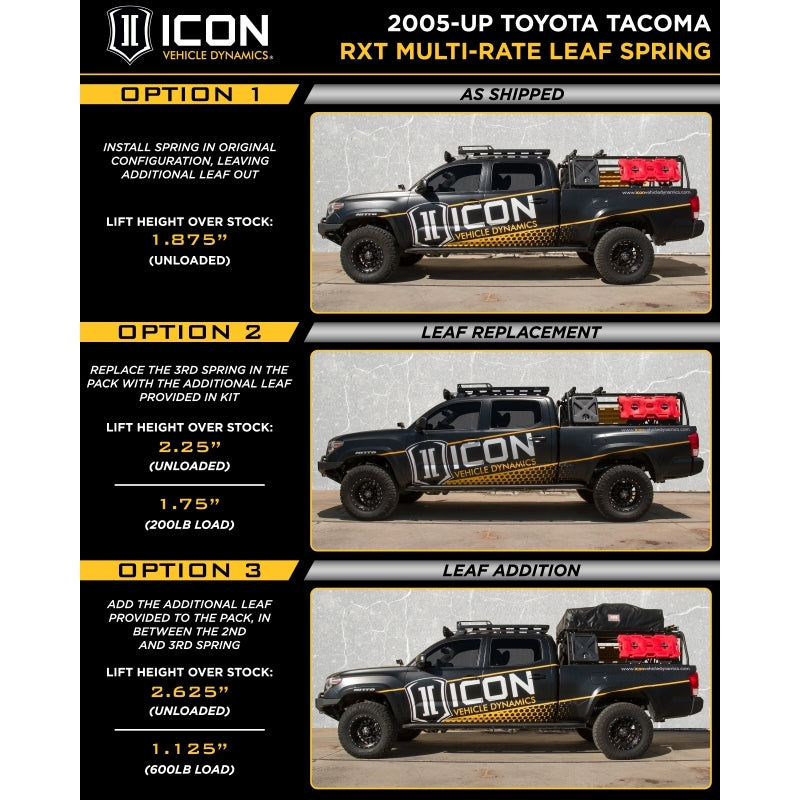

RXT multi-rate rear leaf springs offer three user-selectable spring rates
Matched RXT-specific 2.5 Aluminum Series rear shocks complete the system
Fully rebuildable and revalveable for long-term serviceability

Transform the ride and capability of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics Stage 8 Suspension System (K53008T). This complete front and rear package delivers premium on-road comfort and serious off-road performance in a fully bolt-on kit that requires no cutting or welding.

Key Benefits

Height-adjustable front lift: 0-3.5 in. on 2005-2015 models, 0-2.75 in. on 2016-2023 models, for larger wheel and tire fitment
ICON-tuned velocity-sensitive (V.S.) 2.5 Series Extended Travel coilovers deliver controlled, fade-resistant damping
2.5 Series Extended Travel coilovers with remote reservoirs run cooler and resist fade on long off-road runs
Tubular upper control arms with ICON's Delta Joint correct front-end geometry and add caster for confident high-speed handling
RXT multi-rate leaf springs with three user-adjustable rates plus matched rear shocks complete the system front-to-rear
Fully rebuildable and revalveable shocks protect your investment for the long haul

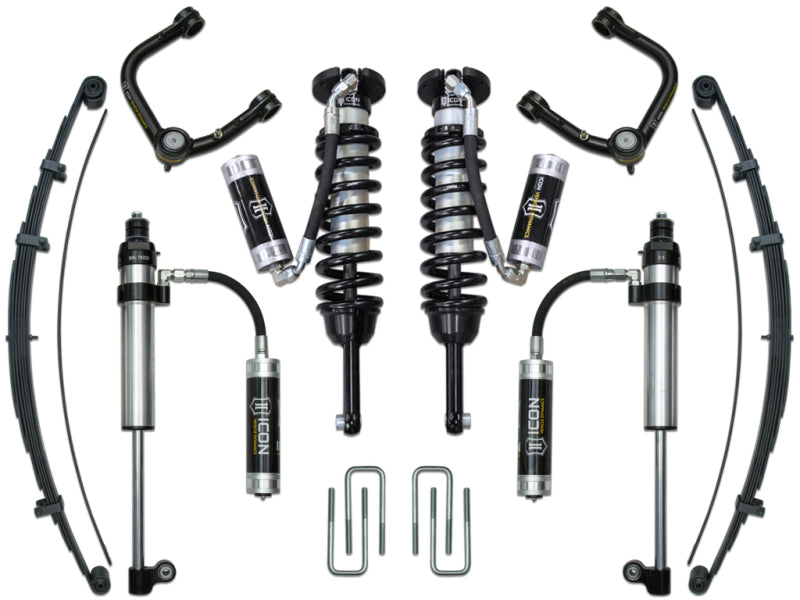

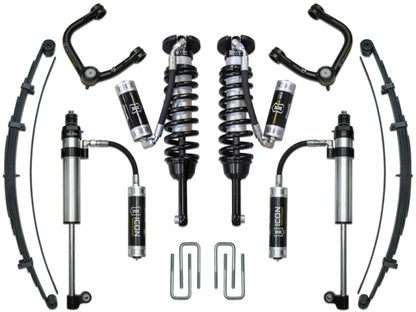

What's Included

Pair of front 2.5 Series Extended Travel coilovers with remote reservoirs and ICON coil springs
Pair of tubular steel upper control arms with Delta Joint
ICON RXT multi-rate rear leaf springs (three adjustable rates)
Pair of RXT-specific 2.5 Aluminum Series rear shocks with remote reservoir
Mounting hardware

Fitment

This exact part (K53008T) is engineered for the Toyota Tacoma across the 2nd and 3rd generations. 2017+ TRD Pro models use reduced lift ranges. Front coilovers and tubular UCAs address the front; RXT leaf springs and rear shocks address the rear.

2005-2023 Toyota Tacoma (front and rear)

FAQ

Will this ICON Stage 8 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53008T provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 8 system and the other ICON Tacoma stages?

Stage 8 swaps the add-a-leaf for a full RXT multi-rate leaf pack with matched RXT 2.5 rear shocks; the front coilovers remain non-adjustable V.S. This complete system includes ICON tubular Delta Joint upper control arms. This is the tubular upper-control-arm version; ICON K53008 is the billet-UCA version.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005	Toyota	Tacoma	—	Front
2005	Toyota	Tacoma	—	Rear
2006	Toyota	Tacoma	—	Front
2006	Toyota	Tacoma	—	Rear
2007	Toyota	Tacoma	—	Front
2007	Toyota	Tacoma	—	Rear
2008	Toyota	Tacoma	—	Front
2008	Toyota	Tacoma	—	Rear
2009	Toyota	Tacoma	—	Front
2009	Toyota	Tacoma	—	Rear
2010	Toyota	Tacoma	—	Front
2010	Toyota	Tacoma	—	Rear
2011	Toyota	Tacoma	—	Front
2011	Toyota	Tacoma	—	Rear
2012	Toyota	Tacoma	—	Front
2012	Toyota	Tacoma	—	Rear
2013	Toyota	Tacoma	—	Front
2013	Toyota	Tacoma	—	Rear
2014	Toyota	Tacoma	—	Front
2014	Toyota	Tacoma	—	Rear
2015	Toyota	Tacoma	—	Front
2015	Toyota	Tacoma	—	Rear
2016	Toyota	Tacoma	—	Front
2016	Toyota	Tacoma	—	Rear
2017	Toyota	Tacoma	—	Front
2017	Toyota	Tacoma	—	Rear
2018	Toyota	Tacoma	—	Front
2018	Toyota	Tacoma	—	Rear
2019	Toyota	Tacoma	—	Front
2019	Toyota	Tacoma	—	Rear
2020	Toyota	Tacoma	—	Front
2020	Toyota	Tacoma	—	Rear
2021	Toyota	Tacoma	—	Front
2021	Toyota	Tacoma	—	Rear
2022	Toyota	Tacoma	—	Front
2022	Toyota	Tacoma	—	Rear
2023	Toyota	Tacoma	—	Front
2023	Toyota	Tacoma	—	Rear

Specifications

rear: RXT multi-rate leaf spring + 2.5 Aluminum Series remote reservoir shock
valve: CDCV
system: Stage 8 complete front and rear suspension system
coilover: 2.5 Series Extended Travel, remote reservoir, CDCV adjustable
front lift: 0-3.5 in (2005-2015) / 0-2.75 in (2016-2023)
rebuildable: Yes, fully rebuildable and revalveable
installation: Bolt-on, no cutting or welding
system stage: Stage 8
upper control arm: Tubular steel with ICON Delta Joint
