ICON Stage 8 CDCV Billet UCA Suspension for 05-23 Toyota Tacoma

Name: ICON Stage 8 CDCV Billet UCA Suspension for 05-23 Toyota Tacoma
Brand: ICON
SKU: K53008
Price: 5679.23 USD
Availability: InStock

$5,679.23 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53008

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete front-and-rear system: 2.5 coilovers, billet UCAs, RXT leaf springs and reservoir rear shocks
Height-adjustable front coilovers provide up to 3.5 inches of lift for larger tires
Remote-reservoir 2.5 Series shocks resist fade on long, hot trail runs
Billet aluminum upper control arms with patented Delta Joint add strength and high-angle articulation
RXT multi-rate rear leaf springs offer three user-adjustable spring rates
CDCV manual compression adjusters let you dial in damping for the terrain
Fully rebuildable and revalveable for long-term serviceability
Bolt-on installation with no cutting or welding required

Built for drivers who push their Tacoma hard on and off the pavement, the ICON Stage 8 Suspension System (K53008) is a complete, bolt-on front-and-rear package engineered to maximize wheel travel, damping control, and ride quality.

Key Benefits

Height-adjustable front coilovers deliver 0-3.5 inches of lift on 2005-2015 and 0-2.75 inches on 2016-2023 Tacomas for aggressive wheel and tire fitment
2.5 Series remote-reservoir shocks add fluid capacity for fade-free damping on long, rough trails
Billet 6061 aircraft-grade aluminum upper control arms with the patented Delta Joint restore correct geometry and add high-angle articulation

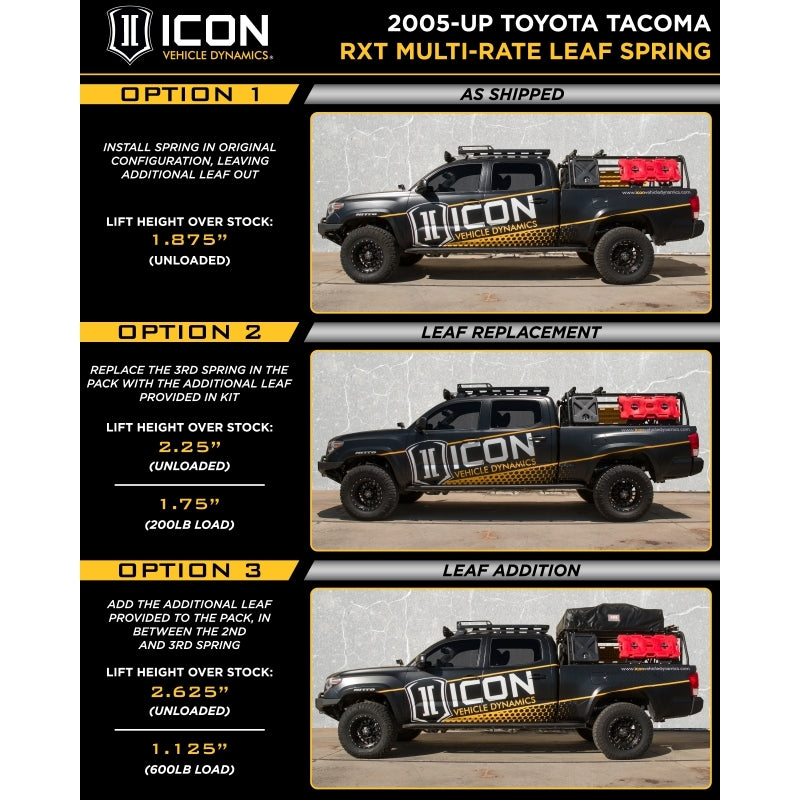

RXT multi-rate rear leaf springs with three user-adjustable rates tune the rear for load and ride preference
Fully rebuildable and revalveable shocks protect your investment for the long haul

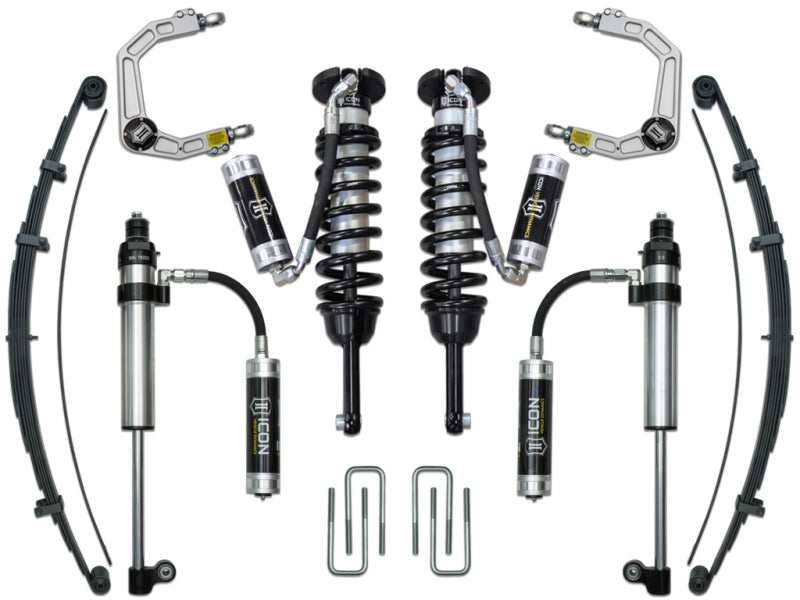

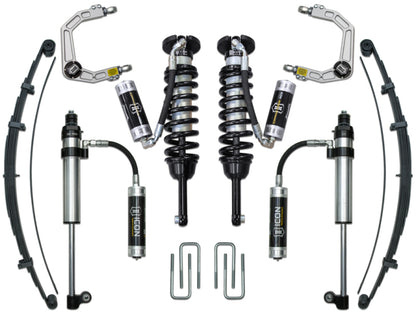

What's Included

Pair of front 2.5 Series Extended Travel coilovers with remote reservoirs and ICON-tuned Eibach coil springs
Pair of billet aluminum upper control arms with patented Delta Joint
ICON RXT multi-rate rear leaf springs (3 adjustable rates)
Pair of 2.5 Aluminum Series remote-reservoir RXT rear shocks
Vehicle-specific mounting hardware

Specifications

Front lift: 0-3.5 in (2005-2015), 0-2.75 in (2016-2023); 2017+ TRD Pro 0-1.25 in
Rear lift: approximately 1.875-2.625 in over stock
Valve type: V.S. velocity-sensitive (non-adjustable damping)
Coilover: 2.5 Series, CAD-plated body, 7/8 in shaft, remote reservoir
Upper control arms: billet 6061 aircraft-grade aluminum, Delta Joint
Recommended tire: 33 x 11.50 in
Installation: bolt-on, no cutting or welding

Fitment

Fits 2005-2023 Toyota Tacoma 6-lug models (4WD and 6-lug PreRunner). Will not fit 5-lug 2WD Tacoma. ADAS recalibration is recommended after installation.

2005-2023 Toyota Tacoma - Front and Rear

FAQ

Will this ICON Stage 8 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53008 provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 8 system and the other ICON Tacoma stages?

Stage 8 swaps the add-a-leaf for a full RXT multi-rate leaf pack with matched RXT 2.5 rear shocks; the front coilovers remain non-adjustable V.S. This complete system includes ICON billet Delta Joint upper control arms. This is the billet upper-control-arm version; ICON K53008T is the tubular-UCA version.
