ICON Stage 6 CDC Suspension System for 05-23 Toyota Tacoma

Name: ICON Stage 6 CDC Suspension System for 05-23 Toyota Tacoma
Brand: ICON
SKU: K53006T
Price: 4912.6 USD
Availability: InStock

$4,912.60 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53006T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

User-adjustable CDC Valve dials in compression damping for any terrain by hand
2.5 Series Extended Travel front coilovers with remote reservoirs resist heat fade
Tubular Delta Joint upper control arms correct alignment and outlast factory UCAs
Progressive add-a-leaf pack matches rear ride height to the front lift
Complete vehicle-specific system tuned for the Tacoma chassis
Up to 3.5 in. of lift on 05-15 trucks, up to 2.75 in. on 16-23 trucks
Remote-reservoir rear shocks with 7/8 in. shafts for added damping control

Transform your Toyota Tacoma's on- and off-road performance with the ICON Vehicle Dynamics Stage 6 Suspension System. This complete, vehicle-specific package pairs ICON's 2.5 Series Extended Travel coilovers and rear reservoir shocks with tubular Delta Joint upper control arms and a progressive add-a-leaf pack for a balanced, fully tuned ride.

Key Benefits

User-adjustable CDC (Compression Damping Control) Valve lets you dial in ride quality for any terrain or cargo load by hand, no tools required
2.5 Series Extended Travel front coilovers with remote reservoirs and 7/8" shafts for fade-free damping and increased wheel travel
Tubular steel upper control arms with the patented Delta Joint correct alignment geometry and add durability over the factory UCAs
Progressive add-a-leaf pack restores rear ride height and load capacity to match the front lift
Bolt-on complete system engineered and tuned specifically for the Tacoma chassis

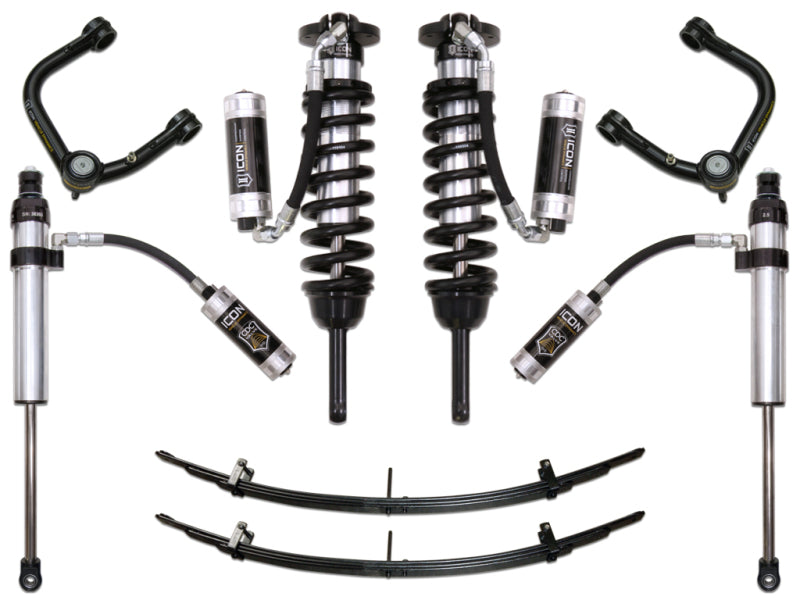

What's Included

2.5 Series CDC Valve front coilovers (remote reservoir, 7/8" shaft)
2.5 Series rear remote-reservoir shocks (7/8" shaft, FK rod-end bearings)
Tubular Delta Joint upper control arm kit
Progressive add-a-leaf rear spring pack

Specifications

Brand: ICON Vehicle Dynamics
Part Number: K53006T
Series: Stage 6
Front: 2.5 Series Extended Travel coilover, CDC Valve, remote reservoir
Rear: 2.5 Series remote-reservoir shocks plus add-a-leaf
Upper Control Arms: Tubular steel, Delta Joint
Position: Front and rear (complete system)
Lift: up to 3.5 in. (2005-2015) / up to 2.75 in. (2016-2023)
Wheel Lug: 6-lug models only

Fitment

Fits 6-lug 2WD and 4WD (including PreRunner) Toyota Tacoma. Will not fit 5-lug Tacoma models. TRD Pro models net approximately 1.25 in. front / 1 in. rear due to their factory lift.

2005-2015 Toyota Tacoma (up to 3.5 in. lift)
2016-2023 Toyota Tacoma (up to 2.75 in. lift)

FAQ

Will this ICON Stage 6 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53006T provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 6 system and the other ICON Tacoma stages?

Stage 6 adds CDCV (CDC Valve) 10-setting compression adjustment to the front coilovers and rear shocks over the non-adjustable Stage 5. This complete system includes ICON tubular Delta Joint upper control arms. This is the tubular upper-control-arm version; ICON K53006 is the billet-UCA version.
