ICON Stage 6 CDCV Suspension System for 2005-2023 Toyota Tacoma

Name: ICON Stage 6 CDCV Suspension System for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: K53006
Price: 5492.6 USD
Availability: InStock

$5,492.60 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53006

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete Stage 6 front-and-rear suspension system for the 2005-2023 Tacoma
2.5 VS extended-travel front coilovers with cooling remote reservoirs
CDCV manual compression adjusters with 10 levels of damping tuning
Billet aluminum upper control arms with patented Delta Joint
Height-adjustable 0-3.5in front lift clears larger wheel and tire setups
Rear 2.5 reservoir shocks plus add-a-leaf for a balanced stance
Vehicle-tuned valving for refined on-road and capable off-road performance

Transform your Toyota Tacoma with the ICON Vehicle Dynamics Stage 6 Suspension System, a complete front-and-rear package engineered for maximum wheel travel, control, and ride quality on and off the trail. Built around ICON's 2.5 Series Extended Travel coilovers and billet Delta Joint upper control arms, this is the flagship bolt-on suspension for the 2nd- and 3rd-generation Tacoma.

Key Benefits

Height-adjustable front lift of 0-3.5in (2005-2015) or 0-2.75in (2016-2023) to clear larger wheel and tire combinations
CDCV manual compression adjusters give 10 levels of on-the-fly damping tuning for any terrain or cargo load
Extended-travel 2.5 coilovers paired with billet UCAs add front droop travel for superior wheel control
Remote reservoirs keep shock oil cool during hard, sustained off-road use
Billet aluminum Delta Joint UCAs combine ball-joint durability with uniball articulation

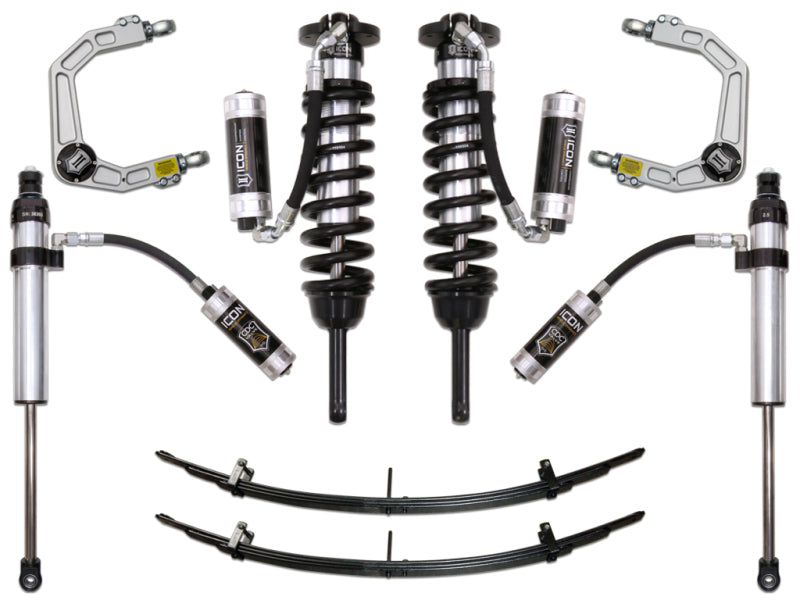

What's Included

Pair of 2.5 VS Extended Travel front coilovers with remote reservoirs and CDCV
Pair of billet aluminum upper control arms with patented Delta Joint
Pair of 2.5 Series rear remote-reservoir shocks
Rear add-a-leaf kit (approx. 1.5in rear lift)

Specifications

Brand: ICON Vehicle Dynamics
Part number: K53006
Stage: 6 (complete system)
Front lift: 0-3.5in (05-15) / 0-2.75in (16-23)
Rear lift: approx. 1.5in over stock
Valve: CDCV manual compression damping control (10 settings)
Upper control arms: billet aluminum, Delta Joint
Position: front and rear

Fitment

Fits 2005-2023 Toyota Tacoma (2nd and 3rd generation). Does not fit 2024+ 4th-generation Tacoma. Will not fit 2WD Tacoma equipped with 5-lug wheels. Recalibration of Advanced Driver Assistance Systems (ADAS) is recommended after installation.

2005-2015 Toyota Tacoma (0-3.5in front lift)
2016-2023 Toyota Tacoma (0-2.75in front lift)

FAQ

Will this ICON Stage 6 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53006 provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 6 system and the other ICON Tacoma stages?

Stage 6 adds CDCV (CDC Valve) 10-setting compression adjustment to the front coilovers and rear shocks over the non-adjustable Stage 5. This complete system includes ICON billet Delta Joint upper control arms. This is the billet upper-control-arm version; ICON K53006T is the tubular-UCA version.
