ICON Stage 5 Suspension System for 05-23 Toyota Tacoma w/Tubular UCA

Name: ICON Stage 5 Suspension System for 05-23 Toyota Tacoma w/Tubular UCA
Brand: ICON
SKU: K53005T
Price: 4348.65 USD
Availability: InStock

$4,348.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53005T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Height-adjustable 2.5 Series front coilovers tune 0-3.5 inches of lift for big tire clearance
Tubular Delta Joint upper control arms restore correct alignment and add high-angle durability
Remote-reservoir front and rear shocks run cooler and resist fade on long off-road runs
Vehicle-specific Eibach springs deliver a controlled, planted ride on and off pavement
Rear add-a-leaf kit levels the truck and supports added load and lift
Complete bolt-on system installs with no cutting or welding required
Backed by ICON's race-proven engineering and premium CNC-machined components

Take your Toyota Tacoma from stock to trail-ready with the ICON Vehicle Dynamics Stage 5 Suspension System. This complete front-and-rear package combines ICON's race-proven 2.5 Series coilovers, tuned springs, remote-reservoir rear shocks, and tubular upper control arms to deliver a refined on-road ride and serious off-road capability without cutting or welding.

Key Benefits

Height-adjustable front coilovers dial in 0-3.5 inches of lift (0-2.75 inches on 2016+ trucks) for larger wheel and tire combinations
Tubular Delta Joint upper control arms add strength, durability, and alignment correction for better drivability
2.5 Series remote-reservoir rear shocks improve cooling and balance front-to-rear performance
Vehicle-specific Eibach coil springs deliver superior feel through the full range of travel
Complete bolt-on system requires no cutting or welding for installation

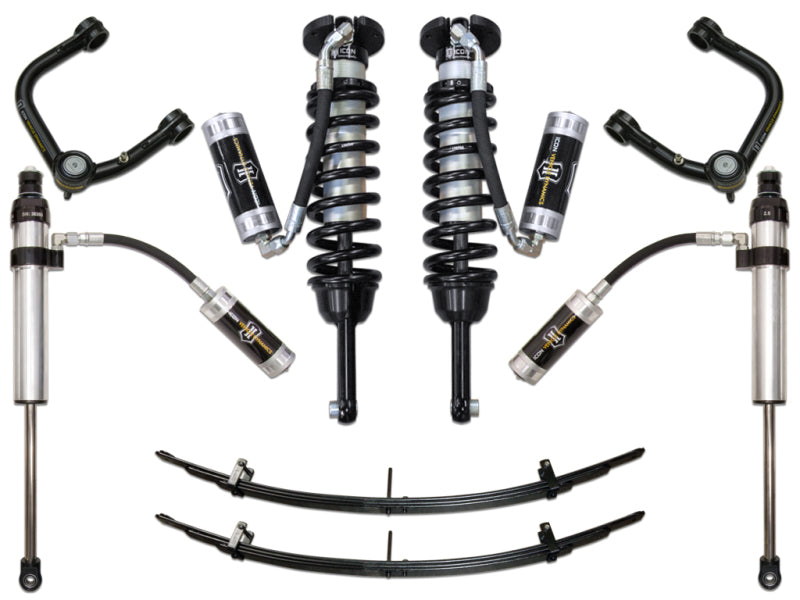

What's Included

Front 2.5 Series extended-travel coilover shocks with remote reservoirs
ICON-tuned Eibach coil springs
Rear 2.5 Series remote-reservoir shocks
Rear add-a-leaf kit
Tubular aluminum upper control arms with patented Delta Joint

Fitment

Engineered specifically for the Toyota Tacoma (part number K53005T). Verified application:

2005-2015 Toyota Tacoma (2nd gen) - 0-3.5 in front lift
2016-2023 Toyota Tacoma (3rd gen) - 0-2.75 in front lift

FAQ

Will this ICON Stage 5 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53005T provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 5 system and the other ICON Tacoma stages?

Stage 5 upgrades the rear shocks to the 2.5 Aluminum Series over Stage 4's 2.0, keeping the V.S. front coilovers and rear add-a-leaf. This complete system includes ICON tubular Delta Joint upper control arms. This is the tubular upper-control-arm version; ICON K53005 is the billet-UCA version.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

valve: standard (non-adjustable)
install: bolt-on, no cutting or welding
valving: Standard ICON vehicle-specific tune (non-adjustable)
includes: front coilovers, Eibach springs, rear shocks, add-a-leaf, tubular UCAs
front lift: 0-3.5 in (2005-2015) / 0-2.75 in (2016-2023)
rear shock: 2.5 Series Aluminum remote reservoir
front shock: 2.5 Series extended-travel coilover, remote reservoir, 7/8 in shaft
system stage: Stage 5
front lift 05 15: 0-3.5 in
front lift 16 23: 0-2.75 in
mounting position: Front and rear
upper control arm: tubular with Delta Joint
upper control arms: Tubular with Delta Joint
