ICON Stage 5 Billet UCA Suspension System for 05-23 Toyota Tacoma

Name: ICON Stage 5 Billet UCA Suspension System for 05-23 Toyota Tacoma
Brand: ICON
SKU: K53005
Price: 4928.65 USD
Availability: InStock

$4,928.65 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53005

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete Stage 5 bolt-on suspension system, no cutting or welding required
Height-adjustable 2.5 Extended Travel front coilovers with remote reservoirs
Billet aluminum upper control arms with patented Delta Joint for corrected geometry
ICON-engineered Eibach coil springs tuned for the Tacoma platform
Rear Add-A-Leaf plus 2.5 Aluminum Series remote-reservoir shocks for a compliant ride
6061 aircraft-grade CNC-machined aluminum construction with FK rod-end bearings
Adds camber and caster adjustment for proper alignment at ride height
Vehicle-specific valving for improved on- and off-road control

Take your 2005-2023 Toyota Tacoma from stock to trail-ready with the ICON Vehicle Dynamics Stage 5 Suspension System. This complete bolt-on package delivers increased wheel travel, dialed-in ride quality, and corrected front-end geometry with no cutting or welding required.

Key Benefits

Height-adjustable front coilovers deliver 0-3.5" of lift on 2005-2015 models and 0-2.75" on 2016-2023 models
Billet aluminum upper control arms with ICON's patented Delta Joint correct front-end geometry and add camber/caster adjustment
Vehicle-specific tuned front and rear shocks improve damping and control over stock
Remote-reservoir coilovers and rear shocks add fluid capacity for cooler, more consistent performance
True bolt-on installation requires no cutting or welding

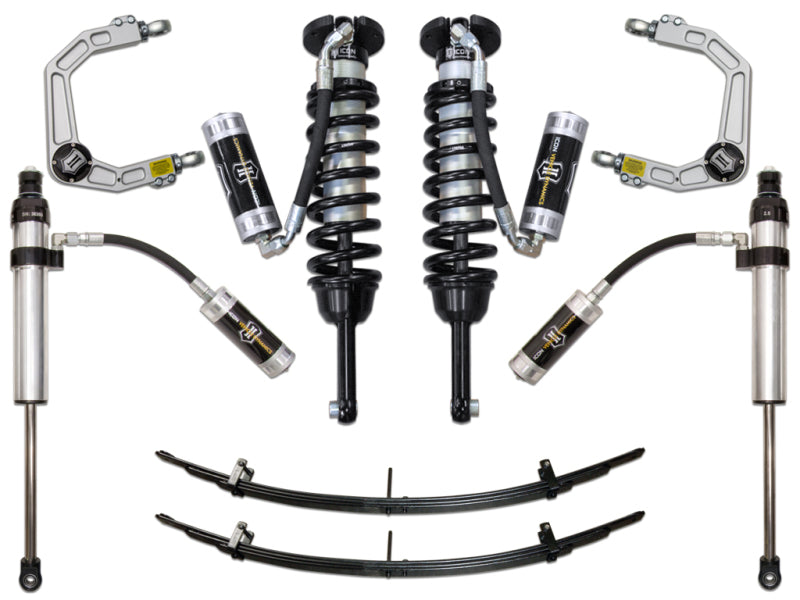

What's Included

2.5 Extended Travel front coilover shocks with remote reservoirs and ICON-engineered Eibach coil springs
Billet aluminum upper control arms with patent-pending Delta Joint ball joints
Rear Add-A-Leaf kit (approximately 1.5" of rear lift, replaces factory overload leaves)
2.5 Aluminum Series remote-reservoir rear shocks
Mounting hardware

Fitment

Engineered for the exact application below. ICON specifies aftermarket upper control arms for this system (billet UCAs are included). Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install. Does not fit 2WD Tacoma with 5-lug wheel studs. TRD Pro models net reduced lift (0-1.25" front, 1" rear).

2005-2015 Toyota Tacoma (front, 0-3.5")
2016-2023 Toyota Tacoma (front, 0-2.75")

FAQ

Will this ICON Stage 5 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53005 provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 5 system and the other ICON Tacoma stages?

Stage 5 upgrades the rear shocks to the 2.5 Aluminum Series over Stage 4's 2.0, keeping the V.S. front coilovers and rear add-a-leaf. This complete system includes ICON billet Delta Joint upper control arms. This is the billet upper-control-arm version; ICON K53005T is the tubular-UCA version.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

valve: non-adjustable (manual coilover height adjust, not CDCV/CDEV)
install: bolt-on, no cut/weld; ADAS recalibration required; not for 2WD 5-lug
rear kit: Add-A-Leaf
rear lift: ~1.5" over stock
adjustment: manual coilover ride-height (non-electronic)
front lift: 0-3.5" (2005-2015) / 0-2.75" (2016-2023), height adjustable
rear shock: 2.5 Aluminum Series remote reservoir
front shock: 2.5 Extended Travel coilover, remote reservoir
construction: 6061 aircraft-grade CNC aluminum, FK rod-end bearings
front coilover: 2.5 Extended Travel, remote reservoir, 7/8" shaft, CAD-plated body
upper control arm: 6061 billet aluminum, Delta Joint (included)
