ICON Stage 4 Suspension System for 05-23 Toyota Tacoma

Name: ICON Stage 4 Suspension System for 05-23 Toyota Tacoma
Brand: ICON
SKU: K53004T
Price: 3740.35 USD
Availability: InStock

$3,740.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53004T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Complete front and rear suspension system tuned for the Toyota Tacoma
2.5 Series VS RR remote-reservoir coilovers resist heat fade on long trails
ICON-tuned velocity-sensitive valving balances street comfort and off-road control
Tubular upper control arms with patented Delta Joint restore alignment and add strength
Rear add-a-leaf and reservoir shocks level the truck and add load capacity
Adjustable front ride height up to 3.5 in. on 05-15 trucks
Fits 4x4 and PreRunner 6-lug Tacoma trucks

Take your 2005-2023 Toyota Tacoma from stock to trail-ready with the ICON Vehicle Dynamics Stage 4 Suspension System. This complete front-and-rear package delivers vehicle-specific tuning, adjustable ride height, and the durability to handle washboard, whoops, and weekend overland duty.

Key Benefits

Complete front and rear system tuned specifically for the Tacoma chassis
2.5 Series VS RR coilovers with remote reservoirs run cooler and resist fade on long, fast trails
ICON-tuned velocity-sensitive (V.S.) valving delivers controlled, fade-resistant damping on street and dirt
Tubular upper control arms with the patented Delta Joint restore alignment and add strength over factory rubber-bushed arms
Rear add-a-leaf plus reservoir rear shocks level the truck and add load capacity
Adjustable front ride height supports 0-3.5 in. of lift on 05-15 trucks and 0-2.75 in. on 16-23 trucks

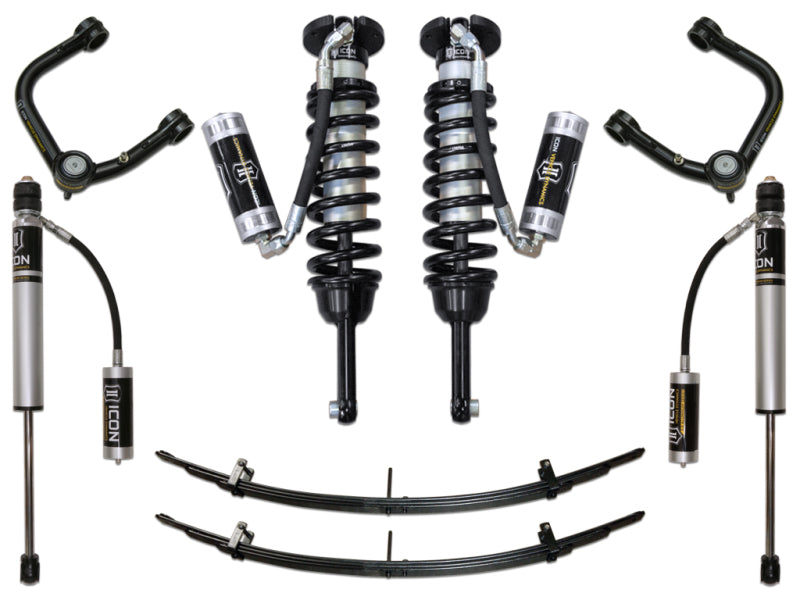

What's Included

Front 2.5 Series VS RR extended-travel coilovers with remote reservoirs (pair)
Tubular upper control arm kit with patented Delta Joint
Rear add-a-leaf spring kit
2.0 Aluminum Series remote-reservoir rear shocks (pair)
Mounting hardware

Specifications

Front coilover: ICON 2.5 Series VS RR, remote reservoir, extended travel
Valve type: V.S. velocity-sensitive (non-adjustable damping)
Front lift: 0-3.5 in. (2005-2015) / 0-2.75 in. (2016-2023)
Rear lift: approximately 1.5 in. over stock
Upper control arms: tubular with patented Delta Joint
Position: front and rear

Fitment

Fits 4x4 and PreRunner 6-lug Toyota Tacoma trucks. Will NOT fit 2WD Tacoma equipped with 5-lug wheels. TRD Pro models (2017-2023) achieve a reduced range of roughly 0-1.25 in. front and 1 in. rear. ADAS recalibration is required after installation.

2005-2015 Toyota Tacoma (4x4 / PreRunner, 6-lug)
2016-2023 Toyota Tacoma (4x4 / PreRunner, 6-lug)

FAQ

Will this ICON Stage 4 system fit a 2WD Tacoma?

No. It fits 4x4 and 6-lug PreRunner Toyota Tacoma only and will not fit 2WD Tacoma with 5-lug wheels. It also does not fit the 2024 and newer fourth-generation Tacoma.

How much lift does the ICON K53004T provide?

The 2.5 Series front coilovers are height-adjustable from 0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 Tacoma. 2017-2023 TRD Pro models net a reduced 0-1.25 inch front range. ICON recommends recalibrating ADAS after installation.

What is the difference between this Stage 4 system and the other ICON Tacoma stages?

Stage 4 uses 2.5 Series V.S. front coilovers, Delta Joint upper control arms, 2.0 Series reservoir rear shocks and a rear add-a-leaf. This complete system includes ICON tubular Delta Joint upper control arms. This is the tubular upper-control-arm version; ICON K53004 is the billet-UCA version.
