ICON Stage 4 Suspension System for 05-23 Toyota Tacoma

Name: ICON Stage 4 Suspension System for 05-23 Toyota Tacoma
Brand: ICON
SKU: K53004
Price: 4320.35 USD
Availability: InStock

$4,320.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53004

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

2.5-inch extended-travel remote-reservoir front coilovers for maximum travel and cooling
Billet aluminum upper control arms with the patented Delta Joint
2.0 Aluminum Series remote-reservoir rear shocks
Rear Add-A-Leaf adds 1.5 inches of rear lift
Top-tier Stage 4; upgrades Stage 3 coilovers to remote reservoirs
4WD only; fits 2005-2023 Toyota Tacoma

The ICON Vehicle Dynamics K53004 is a Stage 4 suspension system for the 2005-2023 Toyota Tacoma (4WD), combining 2.5 Series extended-travel remote-reservoir front coilovers, billet aluminum upper control arms with the Delta Joint, 2.0 Aluminum Series remote-reservoir rear shocks, and a rear Add-A-Leaf.

Key Benefits

2.5-inch extended-travel front coilovers with remote reservoirs for maximum wheel travel and cooling
Billet aluminum upper control arms with the patented ICON Delta Joint for corrected geometry
2.0 Aluminum Series remote-reservoir rear shocks with vehicle-specific valving
Rear Add-A-Leaf replaces the factory overload leaves for 1.5 inches of rear lift
Top-tier Tacoma Stage system for aggressive off-road use

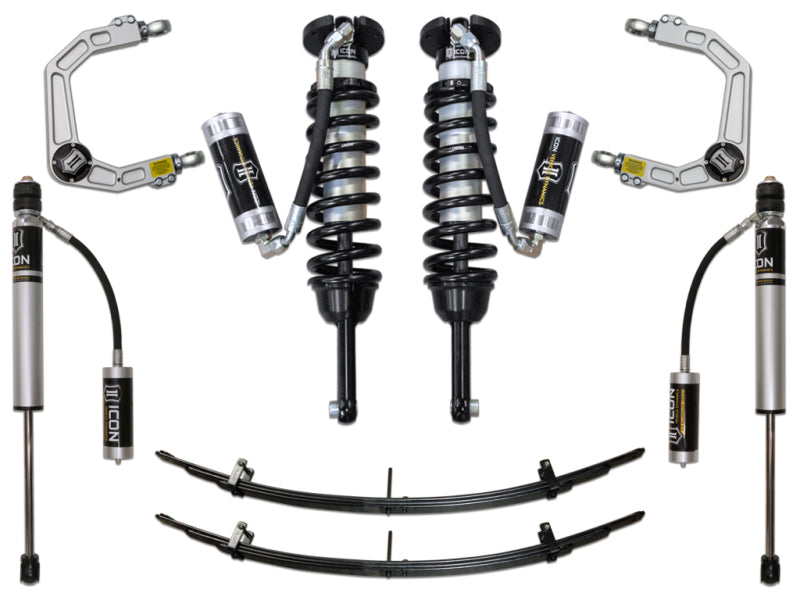

What's Included

Pair of ICON 2.5 Series extended-travel remote-reservoir front coilovers
Pair of ICON billet aluminum upper control arms with Delta Joint
Pair of ICON 2.0 Aluminum Series remote-reservoir rear shocks
ICON rear Add-A-Leaf kit

Specifications

Brand: ICON Vehicle Dynamics
System: Stage 4 (remote-reservoir extended-travel coilovers + billet UCAs + rear shocks + Add-A-Leaf)
Front: 2.5 Series extended-travel remote-reservoir coilovers
Upper control arms: Billet aluminum with Delta Joint
Rear: 2.0 Aluminum Series remote-reservoir shocks + Add-A-Leaf (1.5 in rear lift)
Front lift: 0-3.5 in (2005-2015), 0-2.75 in (2016-2023); TRD Pro 0-1.25 in
Drivetrain: 4WD only

Fitment

Fits the 2005-2015 and 2016-2023 Toyota Tacoma in 4WD. Front lift is 0-3.5 inches on 2005-2015 models and 0-2.75 inches on 2016-2023 models, with 1.5 inches of rear lift from the Add-A-Leaf; 2017-2023 TRD Pro models are limited to 0-1.25 inches front and 1 inch rear. Does not fit 2WD Tacoma models with 5-lug wheel studs. Stage 4 upgrades the front coilovers to remote reservoirs over the Stage 3 (K53003) internal-reservoir coilovers; both use billet UCAs.

FAQ

What makes Stage 4 different from Stage 3?

Stage 4 uses 2.5 Series extended-travel remote-reservoir front coilovers for added cooling and travel, while Stage 3 (K53003) uses internal-reservoir front coilovers. Both include billet UCAs and a rear Add-A-Leaf.

What is included in the Stage 4 system?

It includes remote-reservoir extended-travel front coilovers, billet UCAs with Delta Joint, 2.0 Aluminum Series remote-reservoir rear shocks, and a rear Add-A-Leaf.

How much lift does it provide?

Front lift is 0-3.5 inches on 2005-2015 Tacomas and 0-2.75 inches on 2016-2023 Tacomas, plus 1.5 inches of rear lift.

Does it fit a 2WD Tacoma?

No. The K53004 fits 4WD models only and will not fit 2WD Tacomas with 5-lug wheel studs.
