ICON Stage 3 Suspension System for 2005-2023 Toyota Tacoma

Name: ICON Stage 3 Suspension System for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: K53003T
Price: 3256.75 USD
Availability: InStock

$3,256.75 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53003T

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

2.5-inch extended-travel front coilovers for increased wheel travel
Tubular upper control arms with the patented Delta Joint
2.0 Aluminum Series remote-reservoir rear shocks
Rear Add-A-Leaf adds 1.5 inches of rear lift
Tubular-UCA version; K53003 is the billet-UCA version
4WD only; fits 2005-2023 Toyota Tacoma

The ICON Vehicle Dynamics K53003T is a Stage 3 suspension system for the 2005-2023 Toyota Tacoma (4WD), combining 2.5 Series extended-travel front coilovers, tubular upper control arms with the patented Delta Joint, 2.0 Aluminum Series remote-reservoir rear shocks, and a rear Add-A-Leaf.

Key Benefits

2.5-inch extended-travel front coilovers with internal reservoir for increased wheel travel
Tubular upper control arms with the patented ICON Delta Joint for corrected geometry and durability
2.0 Aluminum Series remote-reservoir rear shocks with vehicle-specific valving
Rear Add-A-Leaf replaces the factory overload leaves for 1.5 inches of rear lift
0-3.5 inches of front lift on 2005-2015 models, 0-2.75 inches on 2016-2023 models

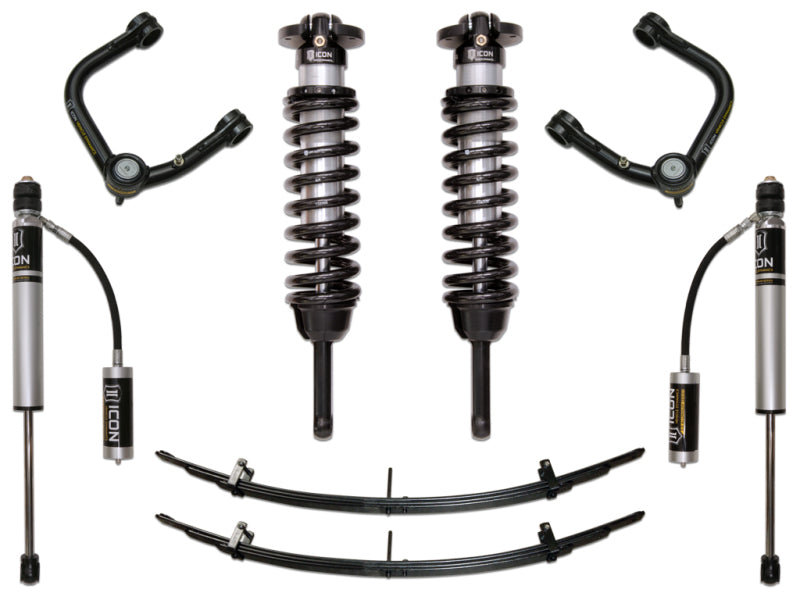

What's Included

Pair of ICON 2.5 Series extended-travel front coilovers with internal reservoir
Pair of ICON tubular upper control arms with Delta Joint
Pair of ICON 2.0 Aluminum Series remote-reservoir rear shocks
ICON rear Add-A-Leaf kit

Fitment

Fits the 2005-2015 and 2016-2023 Toyota Tacoma in 4WD. Front lift is 0-3.5 inches on 2005-2015 models and 0-2.75 inches on 2016-2023 models, with 1.5 inches of rear lift from the Add-A-Leaf; 2017-2023 TRD Pro models are limited to 0-1.25 inches front and 1 inch rear. Does not fit 2WD Tacoma models with 5-lug wheel studs. This Stage 3 uses tubular upper control arms; the K53003 is the same Stage 3 with billet aluminum upper control arms. Stage 4 (K53004) upgrades the front coilovers to remote reservoirs.

FAQ

What upper control arms come in the K53003T?

The K53003T includes tubular upper control arms with the patented ICON Delta Joint. The K53003 is the same Stage 3 built with billet aluminum upper control arms.

What is included in this Stage 3 system?

It includes 2.5 Series extended-travel front coilovers, tubular UCAs with Delta Joint, 2.0 Aluminum Series remote-reservoir rear shocks, and a rear Add-A-Leaf.

How much lift does it provide?

Front lift is 0-3.5 inches on 2005-2015 Tacomas and 0-2.75 inches on 2016-2023 Tacomas, plus 1.5 inches of rear lift.

How is Stage 3 different from Stage 4?

Stage 3 uses internal-reservoir front coilovers; Stage 4 (K53004) upgrades to remote-reservoir front coilovers.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

rear: 2.0 Aluminum Series remote-reservoir shocks + Add-A-Leaf (1.5 in rear lift)
front: 2.5 Series extended-travel internal-reservoir coilovers
valve: CDCV
system: Stage 3 (extended-travel coilovers + tubular UCAs + rear shocks + Add-A-Leaf)
install: Bolt-on, no cutting or welding
rear lift: approx 1.5 in
drivetrain: 4WD only
front lift: 0-3.5 in (2005-2015) / 0-2.75 in (2016-2023)
control arms: Tubular UCA with Delta Joint
coilover series: 2.5 Series Extended Travel
rear shock series: 2.0 Aluminum Series remote reservoir
upper control arms: Tubular with Delta Joint
