ICON Stage 2 Suspension System for 05-23 Toyota Tacoma

Name: ICON Stage 2 Suspension System for 05-23 Toyota Tacoma
Brand: ICON
SKU: K53002
Price: 2406.8 USD
Availability: InStock

$2,406.80 USD

Sale Sold out

Shipping calculated at checkout.

SKU:K53002

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

2.5-inch front coilovers plus 2.0 Aluminum Series rear shocks
Rear Add-A-Leaf adds 1.5 inches of rear lift
0-3.5 in front lift (05-15), 0-2.75 in (16-23); TRD Pro 0-1.25 in
4WD only; will not fit 2WD 5-lug Tacoma
No UCAs included; step up to Stage 3 or 4 for control arms
Fits 2005-2023 Toyota Tacoma

The ICON Vehicle Dynamics K53002 is a Stage 2 suspension system for the 2005-2023 Toyota Tacoma (4WD), adding a rear Add-A-Leaf to the Stage 1 front coilovers and rear shocks for a level, load-ready stance.

Key Benefits

Height-adjustable 2.5-inch front coilovers with internal reservoir and ICON-engineered springs
2.0 Aluminum Series rear shocks with 5/8-inch shafts
Rear Add-A-Leaf kit replaces the factory overload leaves for 1.5 inches of rear lift
0-3.5 inches of front lift on 2005-2015 models, 0-2.75 inches on 2016-2023 models
Bolt-on install with no cutting or welding

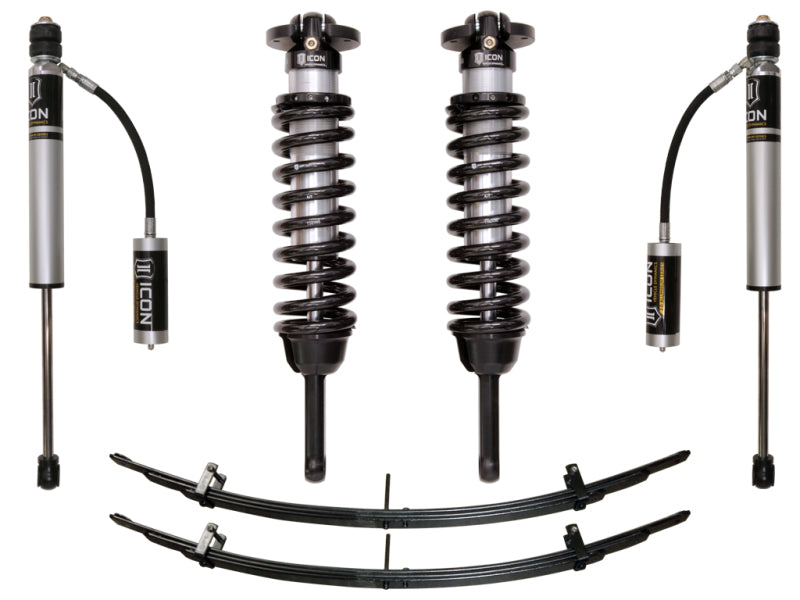

What's Included

Pair of ICON 2.5 Series front coilovers with internal reservoir and ICON-engineered springs
Pair of ICON 2.0 Aluminum Series rear shocks
ICON rear Add-A-Leaf kit

Specifications

Brand: ICON Vehicle Dynamics
System: Stage 2 (front coilovers + rear shocks + Add-A-Leaf)
Front: 2.5 Series internal-reservoir coilovers, height-adjustable
Rear: 2.0 Aluminum Series shocks + Add-A-Leaf (1.5 in rear lift)
Front lift: 0-3.5 in (2005-2015), 0-2.75 in (2016-2023); TRD Pro 0-1.25 in
Drivetrain: 4WD only

Fitment

Fits the 2005-2015 and 2016-2023 Toyota Tacoma in 4WD. Front lift is 0-3.5 inches on 2005-2015 models and 0-2.75 inches on 2016-2023 models, with 1.5 inches of rear lift from the Add-A-Leaf; 2017-2023 TRD Pro models are limited to 0-1.25 inches front and 1 inch rear. Does not fit 2WD Tacoma models with 5-lug wheel studs. Stage 2 does not include upper control arms; step up to Stage 3 (K53003/K53003T) for billet or tubular UCAs, or Stage 4 (K53004) for remote-reservoir front coilovers.
