ICON VS 2.5 CDXS Front Coilover Kit for 2024-2025 Lexus GX550

Name: ICON VS 2.5 CDXS Front Coilover Kit for 2024-2025 Lexus GX550
Brand: ICON
SKU: 58790X
Price: 2399.95 USD
Availability: InStock

$2,399.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58790X

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

CDXS dual-speed valving with independent low- and high-speed compression knobs
1.25-3 inches of adjustable front lift for the GX550
2.5-inch remote-reservoir shocks for fade-free damping
Requires ICON Delta Joint Pro UCAs; 4WD/AWD needs diff drop #55156
Will not fit GX550 Overtrail or AVS-equipped vehicles; ADAS recal required
Fits 2024-2025 Lexus GX550

The ICON Vehicle Dynamics 58790X is a 2.5 Series VS remote-reservoir CDXS front coilover kit for the 2024-2025 Lexus GX550, offering 1.25-3 inches of adjustable lift with dual-speed compression tuning.

Key Benefits

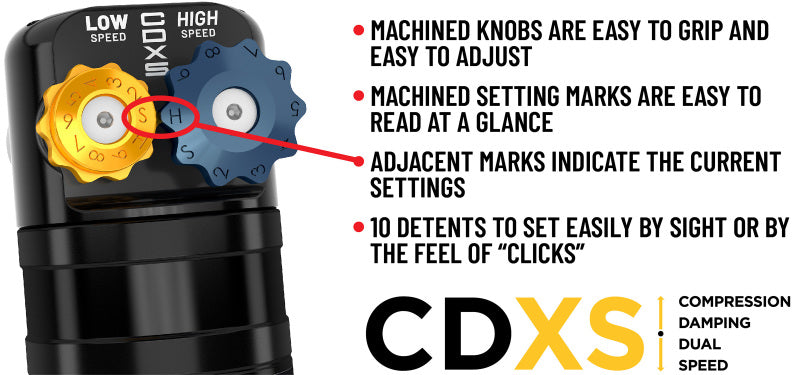

CDXS dual-speed valving with independent low-speed and high-speed compression knobs, 10 settings each
1.25-3 inches of adjustable front lift
2.5-inch remote-reservoir shocks with increased piston area for controlled damping
ICON-engineered springs with vehicle-specific valving for the GX550 platform
Fine on-road control plus big-hit off-road control from one shock

What's Included

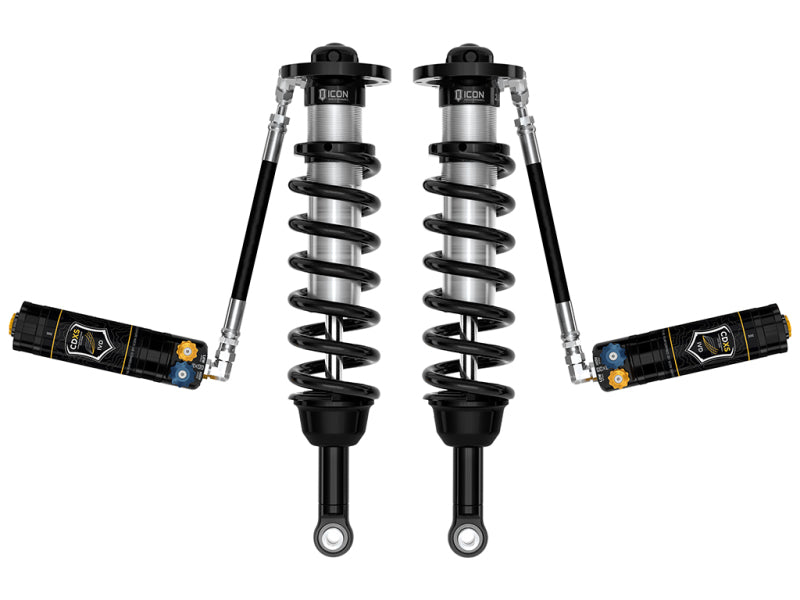

Pair of ICON 2.5 Series VS remote-reservoir CDXS front coilovers (driver and passenger)
ICON-engineered coil springs, preassembled

Fitment

Fits the 2024-2025 Lexus GX550. ICON Delta Joint Pro upper control arms are required, 4WD/AWD models require the front differential drop kit #55156 (sold separately), and ADAS recalibration is required after installation. Does not fit the GX550 Overtrail trim and is not compatible with vehicles equipped with Adaptive Variable Suspension (AVS). Does not fit the Toyota Land Cruiser; the GX550/Land Cruiser CDCV option is the 58791C. Does not fit the 2003-2023 GX460/GX470.

FAQ

Does the 58790X fit the GX550 Overtrail?

No. ICON states this kit will not fit the GX550 Overtrail. It is also not compatible with vehicles equipped with Adaptive Variable Suspension (AVS).

Do I need upper control arms?

Yes. ICON Delta Joint Pro upper control arms are required with this coilover.

What else does the install require?

4WD/AWD models require the front differential drop kit #55156, and ADAS recalibration is required after installation.

What is CDXS?

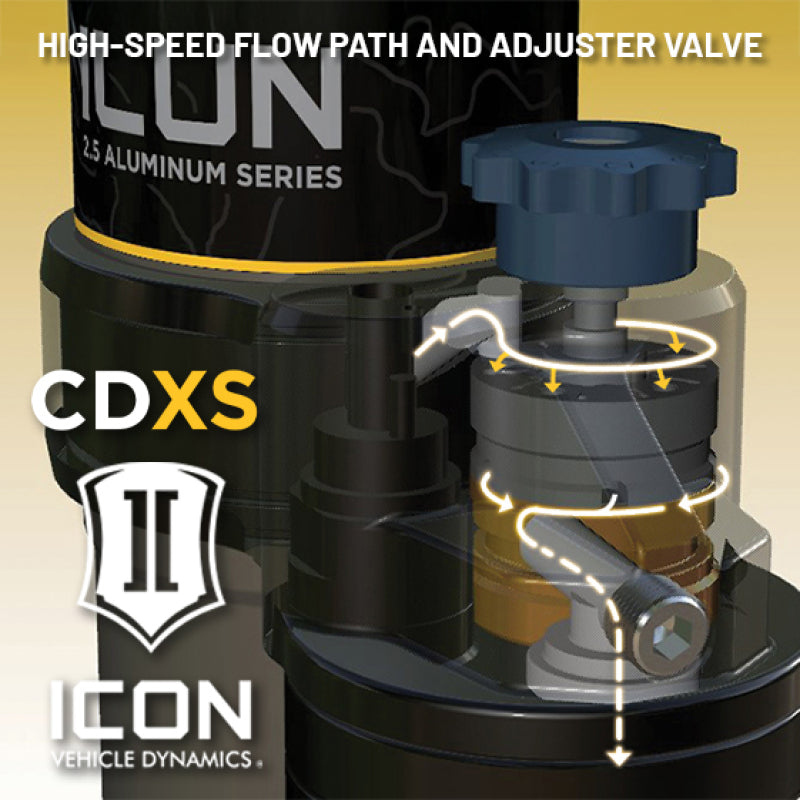

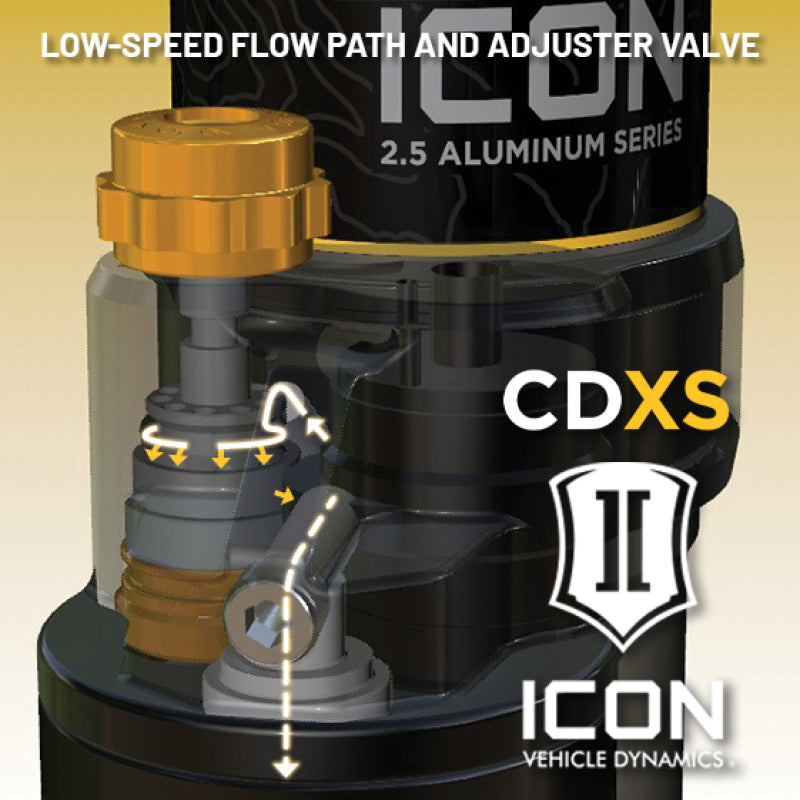

CDXS uses two knobs to independently tune low-speed compression (ride and body control) and high-speed compression (big impacts), each with 10 settings.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2024–2025	Lexus	GX550	—	Front

Specifications

material: CNC-machined 6061 aluminum bodies, 7/8-inch induction-hardened chrome shafts, and FK rod-end bearings
valve: CDXS
series: V.S. 2.5 Series
sold as: pair
valving: ICON CDXS dual-speed valving with independent low-speed and high-speed compression knobs (10 settings each)
requires: ICON front diff drop #55156 for 4WD/AWD (sold separately)
lift range: 1.25-3 inches of front lift over stock
shock body: 2.5 inch remote reservoir
4wd awd note: Front differential drop kit #55156 required (sold separately)
adjustability: 10 high-speed + 10 low-speed detented settings
install notes: Not compatible with AVS; ADAS recalibration required after install
mounting position: Front (sold as a pair)
upper control arms: ICON Delta Joint Pro UCAs required
