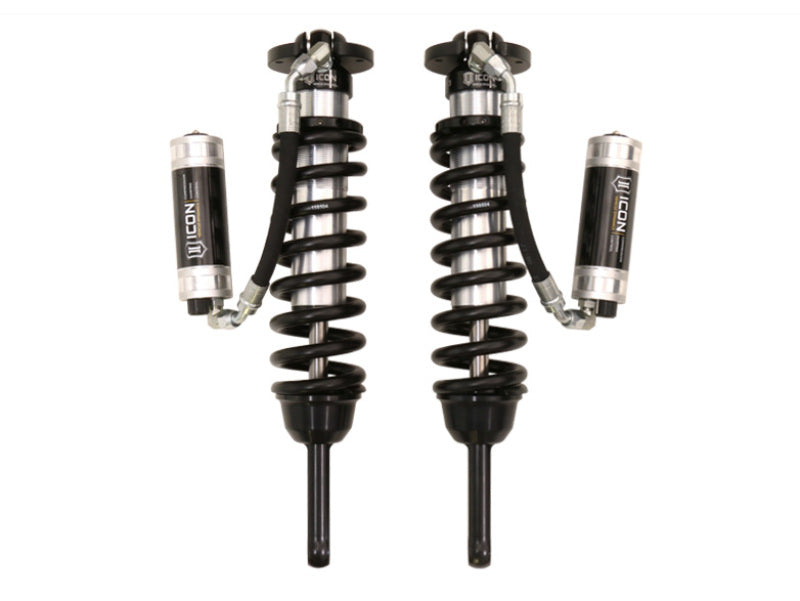

ICON 2.5 VS RR CDCV Front Coilovers for 10-24 Toyota 4Runner FJ

Name: ICON 2.5 VS RR CDCV Front Coilovers for 10-24 Toyota 4Runner FJ
Brand: ICON
SKU: 58747C-700
Price: 2423.15 USD
Availability: InStock

$2,423.15 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58747C-700

Available to order — typically ships in ~1–2 weeks

Calculated shipping — oversized item
Typically ships in ~1–2 weeks
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir extended-travel CDCV front coilover kit (MPN 58747C-700) is a bolt-in front suspension upgrade for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460, providing 0-3.5 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring CDCV manual compression adjuster with 10 levels of adjustment for improved ride quality and control on-road and off.

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

What's Included

Sold as a front pair of CDCV coilovers with 700 lb/in coil springs.

Fitment

This kit is a direct front-suspension fit for 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. Its extended-travel length requires aftermarket front upper control arms. This is the front coilover kit only; rear shocks are sold separately.

FAQ

How much lift does the ICON 58747C-700 provide?

It provides 0-3.5 inches of front lift, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

Yes. The extended-travel length of the 58747C-700 requires aftermarket front upper control arms for correct alignment and clearance.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010–2023	Lexus	GX460	—	Front
2010–2024	Toyota	4Runner	—	Front
2010–2014	Toyota	FJ Cruiser	—	Front

Specifications

material: a corrosion-resistant CAD-plated 2.5-inch shock body, 7/8-inch shaft, and FK rod-end bearings
side: pair
valve: CDCV
series: V.S. 2.5 Extended Travel
travel: Extended travel
damping: CDCV manual compression adjuster with 10 levels of adjustment
sold as: front pair
reservoir: Remote Reservoir
lift range: 0-3.5 in
spring rate: 700 lb/in
uca required: yes - aftermarket upper control arms required
front lift range: 0-3.5 inches of front lift
mounting position: Front (sold as a pair)
