ICON 2.5 VS RR CDCV Front Coilovers 10-24 4Runner FJ GX460

Name: ICON 2.5 VS RR CDCV Front Coilovers 10-24 4Runner FJ GX460
Brand: ICON
SKU: 58747C
Price: 2235.95 USD
Availability: InStock

$2,235.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58747C

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

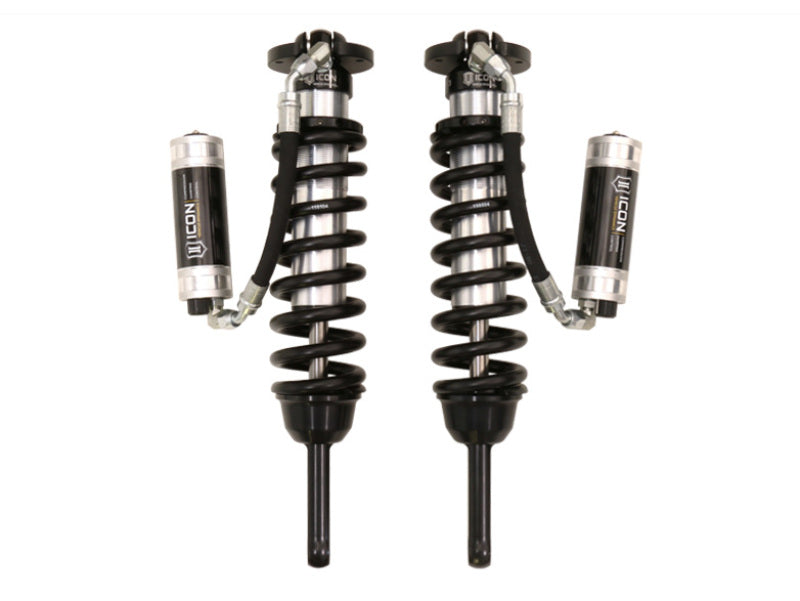

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir extended-travel CDCV front coilover kit (MPN 58747C) is a bolt-in front suspension upgrade for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460, providing 0-3.5 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring CDCV manual compression adjuster with 10 levels of adjustment for improved ride quality and control on-road and off.

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

Specifications

Brand: ICON Vehicle Dynamics
Part number (MPN): 58747C
Series: ICON V.S. 2.5 Series
Reservoir: Remote Reservoir
Front lift range: 0-3.5 inches of front lift
Damping: CDCV manual compression adjuster with 10 levels of adjustment
Position: Front (sold as a pair)
Travel: Extended travel
Construction: a corrosion-resistant CAD-plated 2.5-inch shock body and 7/8-inch shaft

What's Included

Sold as a front pair of CDCV coilovers (shock and coil spring per side).

Fitment

This kit is a direct front-suspension fit for 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. Its extended-travel length requires aftermarket front upper control arms. This is the front coilover kit only; rear shocks are sold separately.
