ICON 2.5 VS RR Front Coilover Kit for 2010-2024 Toyota 4Runner

Name: ICON 2.5 VS RR Front Coilover Kit for 2010-2024 Toyota 4Runner
Brand: ICON
SKU: 58747
Price: 1903.15 USD
Availability: InStock

$1,903.15 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58747

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

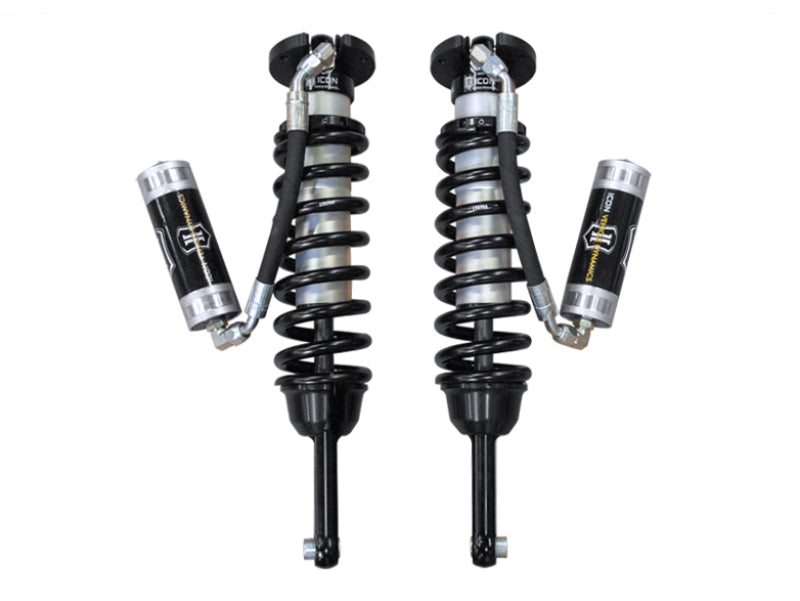

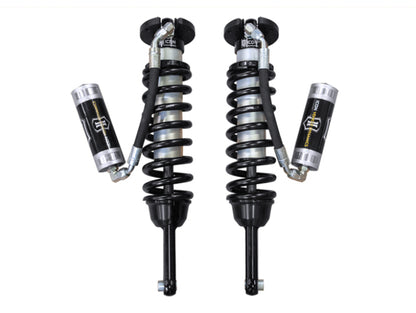

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir extended-travel front coilover kit (MPN 58747) is a bolt-in front suspension upgrade for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460, providing 0-3.5 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring velocity-sensitive (V.S.) non-adjustable valving for improved ride quality and control on-road and off.

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

What's Included

Sold as a front pair of preassembled coilovers with 700 lb/in coil springs.

Fitment

This kit is a direct front-suspension fit for 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. Its extended-travel length requires aftermarket front upper control arms. This is the front coilover kit only; rear shocks are sold separately.

FAQ

How much lift does the ICON 58747 provide?

It provides 0-3.5 inches of front lift, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

Yes. The extended-travel length of the 58747 requires aftermarket front upper control arms for correct alignment and clearance.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010–2023	Lexus	GX460	—	Front
2010–2024	Toyota	4Runner	—	Front
2010–2014	Toyota	FJ Cruiser	—	Front

Specifications

material: a corrosion-resistant CAD-plated 2.5-inch shock body, 7/8-inch shaft, and FK rod-end bearings
valve: VS (vehicle-specific, non-adjustable)
series: 2.5 VS RR Extended Travel
travel: Extended travel
damping: Velocity-sensitive (V.S.) non-adjustable valving
reservoir: Remote Reservoir
lift range: 0-3.5 in front
shock body: 2.5 inch remote reservoir
rear shocks: sold separately
spring rate: 700 lb/in
uca required: yes (aftermarket front upper control arms, sold separately)
front lift range: 0-3.5 inches of front lift
springs included: yes (standard rate)
mounting position: Front (sold as a pair)
