ICON 2.5 VS RR CDCV Coilover for 10-24 4Runner FJ GX460

Name: ICON 2.5 VS RR CDCV Coilover for 10-24 4Runner FJ GX460
Brand: ICON
SKU: 58746C
Price: 2215.15 USD
Availability: InStock

$2,215.15 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58746C

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Runs with the factory upper control arms — installs with no drilling, cutting, or welding

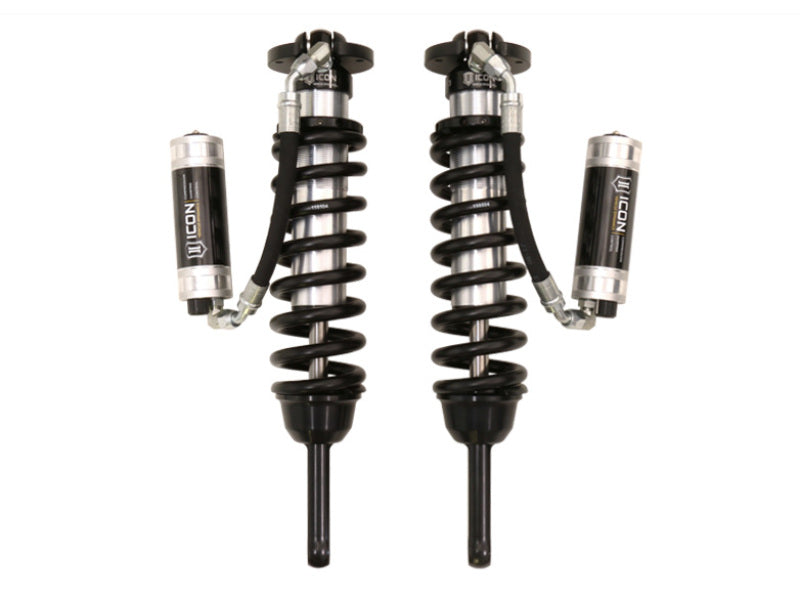

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir CDCV front coilover kit (MPN 58746C) is a bolt-in front suspension upgrade for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460, providing 0-3.5 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring CDCV manual compression adjuster with 10 external settings for improved ride quality and control on-road and off.

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Runs with the factory upper control arms — installs with no drilling, cutting, or welding

What's Included

Sold as a front pair of CDCV coilovers (shock and coil spring per side).

Fitment

This kit is a direct front-suspension fit for 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. It is engineered to run with the factory front upper control arms and installs with no drilling, cutting, or welding. This is the front coilover kit only; rear shocks are sold separately.

FAQ

How much lift does the ICON 58746C provide?

It provides 0-3.5 inches of front lift, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

No. The 58746C is engineered to run with the factory upper control arms, so no aftermarket arms are required for a bolt-in install.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010–2023	Lexus	GX460	—	Front
2010–2024	Toyota	4Runner	—	Front
2010–2014	Toyota	FJ Cruiser	—	Front

Specifications

material: billet 6061 aircraft-grade aluminum components with a corrosion-resistant CAD-plated 2.5-inch shock body and 7/8-inch shaft
valve: CDCV
travel: Standard travel
damping: CDCV manual compression adjuster with 10 external settings
sold as: front pair
reservoir: Remote Reservoir
lift range: 0-3.5 in
product line: ICON V.S. 2.5 Series
front lift range: 0-3.5 inches of front lift
mounting position: Front (sold as a pair)
upper control arms: stock UCA compatible (aftermarket not required)
