ICON 2.5 VS RR CDEV Front Coilover Kit for 2005-2023 Toyota Tacoma

Name: ICON 2.5 VS RR CDEV Front Coilover Kit for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: 58735E
Price: 2785.07 USD
Availability: InStock

$2,785.07 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58735E

Available to order — typically ships in ~1–2 weeks

Calculated shipping — oversized item
Typically ships in ~1–2 weeks
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3.5 inches of front lift (0-2.75 inches on 2016-2023 models) with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDEV electronic compression valve adjusts damping in-vehicle and actively via the IIC system
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

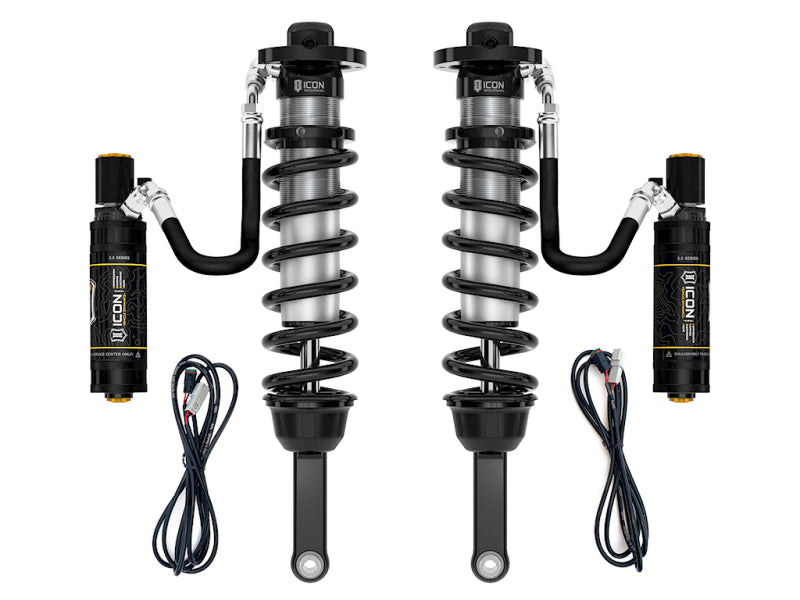

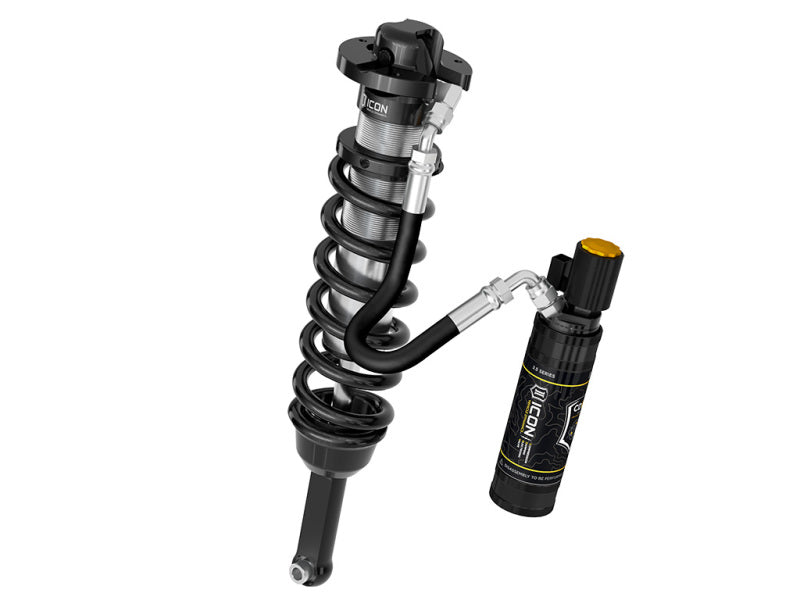

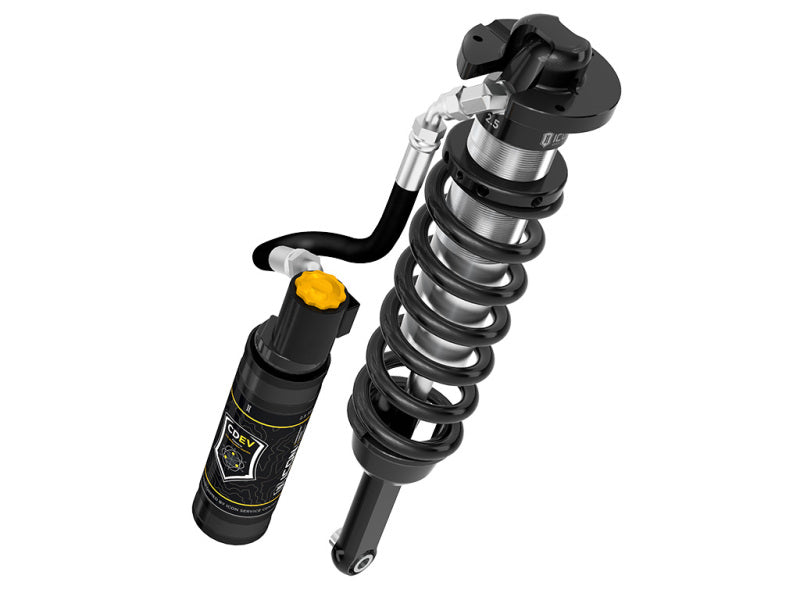

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir extended-travel CDEV front coilover kit (MPN 58735E) is a bolt-in front suspension upgrade for the 2005-2023 Toyota Tacoma, providing 0-3.5 inches of front lift (0-2.75 inches on 2016-2023 models). It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring CDEV electronic compression valve, adjustable in-vehicle and actively through ICON's Intelligent Control (IIC) system for improved ride quality and control on-road and off.

Key Features

Provides 0-3.5 inches of front lift (0-2.75 inches on 2016-2023 models) with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDEV electronic compression valve adjusts damping in-vehicle and actively via the IIC system
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

Specifications

Brand: ICON Vehicle Dynamics
Part number (MPN): 58735E
Series: ICON V.S. 2.5 Series
Reservoir: Remote Reservoir
Front lift range: 0-3.5 inches on 2005-2015 models and 0-2.75 inches on 2016-2023 models
Damping: CDEV electronic compression valve, adjustable in-vehicle and actively through ICON's Intelligent Control (IIC) system
Position: Front (sold as a pair)
Travel: Extended travel
Spring rate: 700 lb/in
Construction: a CAD-plated 2.5-inch shock body with a billet aluminum upper mount, on ICON-engineered Eibach springs

What's Included

Sold as a front pair of CDEV coilovers with ICON-engineered Eibach springs; the ICON Intelligent Control (IIC) kit is required and sold separately.

Fitment

This kit is a direct front-suspension fit for 2005-2023 Toyota Tacoma. Its extended-travel length requires aftermarket front upper control arms. This is the front coilover kit only; rear shocks are sold separately. Does not fit 2005-2015 2WD 5-lug Tacoma models.

FAQ

How much lift does the ICON 58735E provide?

It provides 0-3.5 inches on 2005-2015 models and 0-2.75 inches on 2016-2023 models, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

Yes. The extended-travel length of the 58735E requires aftermarket front upper control arms for correct alignment and clearance.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Does the CDEV version need any extra parts?

Yes. The CDEV electronic valve is controlled by ICON's Intelligent Control (IIC) kit, which is required and sold separately.
