ICON 2.5 VS RR CDCV Front Coilover Kit for 2005-2023 Toyota Tacoma

Name: ICON 2.5 VS RR CDCV Front Coilover Kit for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: 58735C-700
Price: 2423.15 USD
Availability: InStock

$2,423.15 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58735C-700

Available to order — typically ships in ~1–2 weeks

Calculated shipping — oversized item
Typically ships in ~1–2 weeks
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3.5 inches of front lift (0-2.75 inches on 2016-2023 models) with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

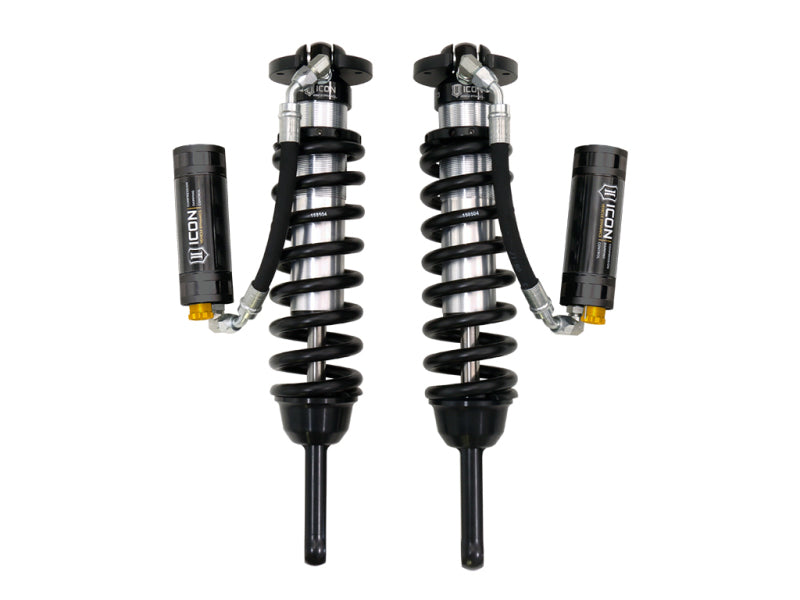

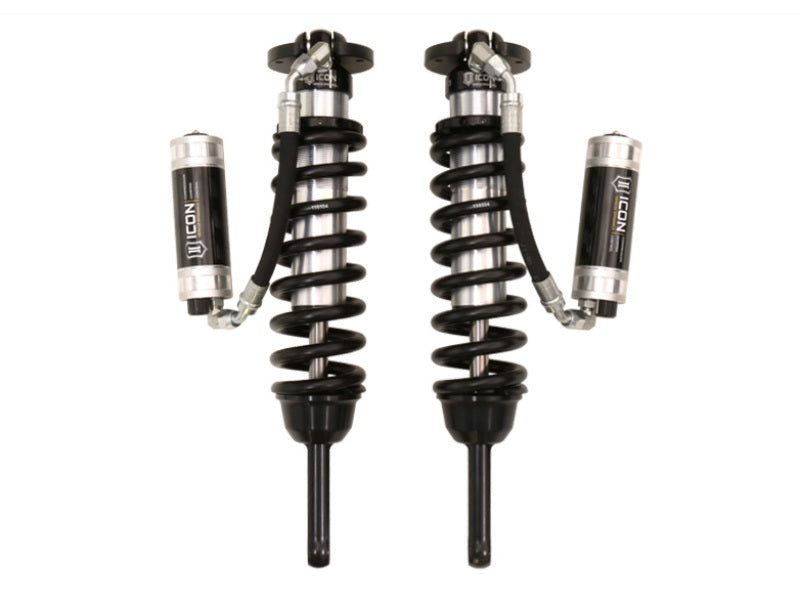

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir extended-travel CDCV front coilover kit (MPN 58735C-700) is a bolt-in front suspension upgrade for the 2005-2023 Toyota Tacoma, providing 0-3.5 inches of front lift (0-2.75 inches on 2016-2023 models). It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring CDCV manual compression adjuster with 10 external settings for improved ride quality and control on-road and off.

Key Features

Provides 0-3.5 inches of front lift (0-2.75 inches on 2016-2023 models) with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

What's Included

Sold as a front pair of CDCV coilovers with 700 lb/in springs and includes sway bar relocation and reservoir mounting brackets.

Fitment

This kit is a direct front-suspension fit for 2005-2023 Toyota Tacoma. Its extended-travel length requires aftermarket front upper control arms. This is the front coilover kit only; rear shocks are sold separately. Does not fit 2005-2015 2WD 5-lug Tacoma models.

FAQ

How much lift does the ICON 58735C-700 provide?

It provides 0-3.5 inches on 2005-2015 models and 0-2.75 inches on 2016-2023 models, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

Yes. The extended-travel length of the 58735C-700 requires aftermarket front upper control arms for correct alignment and clearance.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

material: a CAD-plated 2.5-inch shock body with a billet aluminum upper mount and a 5/8-inch PTFE-lined spherical bearing
valve: CDCV
series: 2.5 Series V.S. Extended Travel
travel: Extended travel
damping: CDCV manual compression adjuster with 10 external settings
sold as: front pair
requires: aftermarket upper control arms
reservoir: Remote Reservoir
exclusions: Will not fit 2WD Tacoma with 5-lug wheel studs
lift range: 0-3.5in (2005-2015) / 0-2.75in (2016-2023) / 0-1.25in TRD Pro
rear shocks: sold separately
spring rate: 700 lb/in
valve detail: Manual compression damping control valve, 10 settings
front lift range: 0-3.5 inches on 2005-2015 models and 0-2.75 inches on 2016-2023 models
mounting position: Front (sold as a pair)
