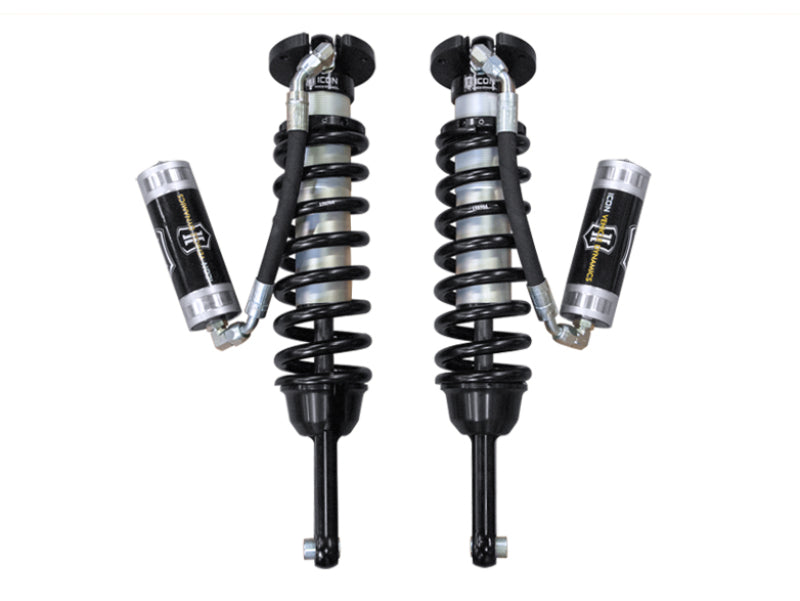

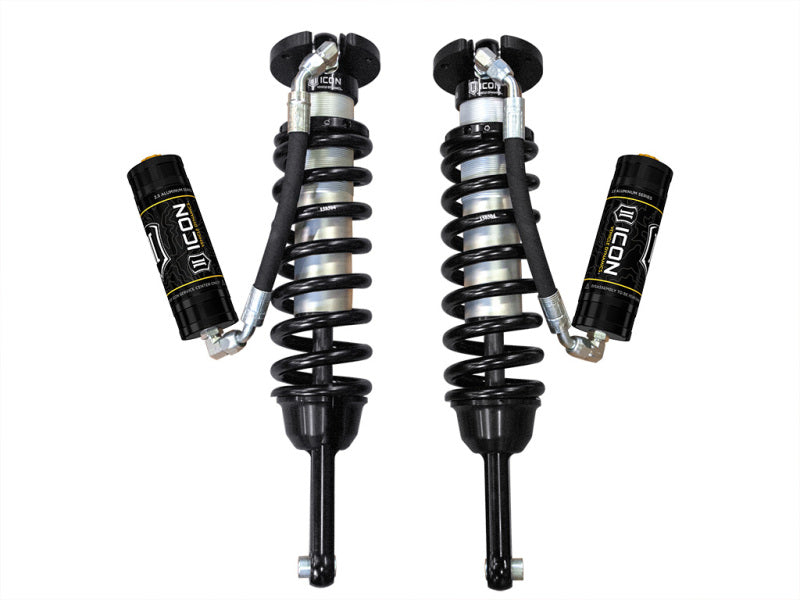

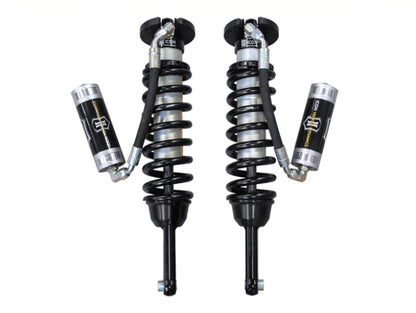

ICON 2.5 VS RR Front Coilover Kit for 2005-2023 Toyota Tacoma

Upgrade your 2005-2023 Toyota Tacoma's front suspension with the ICON Extended Travel 2.5 VS Remote Reservoir Coilover Kit. Engineered for serious off-road performance and on-road comfort, this front coilover system replaces the factory struts with a larger 2.5-inch shock body, increased piston area, and a remote reservoir for superior heat management and consistent damping.

Key Benefits

• Adjustable ride height from 0 to 3.5 inches to dial in your stance and clear larger tires
• Larger 2.5-inch shock body with increased piston area for more control and reduced fade
• Remote reservoir adds oil capacity to keep damping consistent on long, hot trail runs
• Extended-travel design delivers more usable front wheel travel than stock
• Includes a sway bar relocation bracket kit and reservoir mounting brackets for a clean install

What's Included

• Pair of front 2.5 VS remote-reservoir coilover assemblies (driver and passenger)
• Chrome-silicon coil springs
• Sway bar relocation bracket kit
• Reservoir mounting brackets and installation hardware

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: 58735
• Series: Extended Travel 2.5 VS Remote Reservoir
• Valve Type: Standard VS (non-adjustable; CDCV and CDEV sold separately)
• Position: Front
• Lift Range: 0-3.5 inches adjustable
• Requires aftermarket front upper control arms (sold separately)

Fitment

Fits 2005-2023 Toyota Tacoma, 6-lug models only. Does not fit 2WD 5-lug Tacoma models. This is a front-only kit; rear shocks are sold separately. Aftermarket uniball upper control arms are required to ensure proper wheel travel and prevent premature ball joint wear.

• 2005-2023 Toyota Tacoma (6-lug) - Front
