ICON 2.5 VS RR CDCV Front Coilovers for 05-23 Tacoma ProComp 6" Lift

Name: ICON 2.5 VS RR CDCV Front Coilovers for 05-23 Tacoma ProComp 6" Lift
Brand: ICON
SKU: 58731C-700-CB
Price: 2527.15 USD
Availability: InStock

$2,527.15 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58731C-700-CB

Available to order — typically ships in ~1–2 weeks

Calculated shipping — oversized item
Typically ships in ~1–2 weeks
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Coilover length optimized for an existing Pro Comp 6-inch lift kit (sold separately) — these do not lift the truck on their own
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life

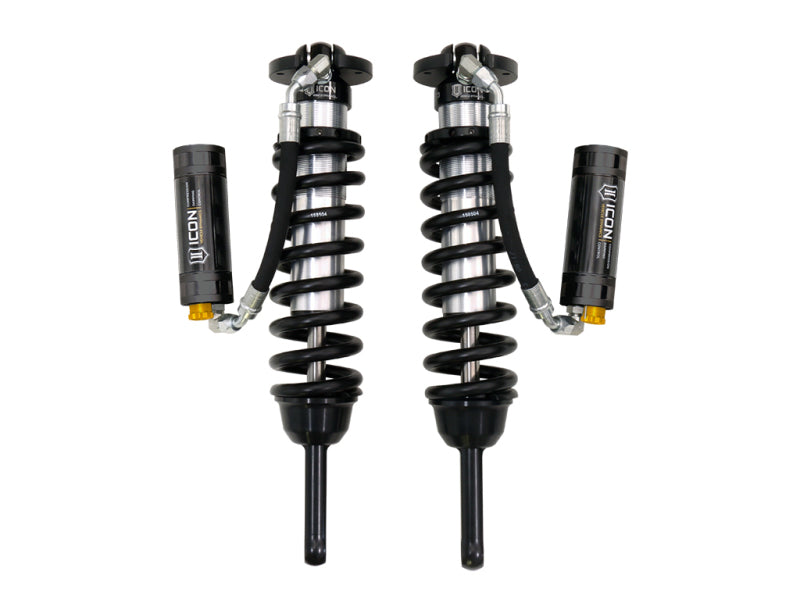

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir CDCV front coilover set optimized for a Pro Comp 6-inch lift (MPN 58731C-700-CB) is a bolt-in front suspension upgrade for the 2005-2023 Toyota Tacoma already running a Pro Comp 6-inch lift kit. It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring CDCV manual compression adjuster with 10 external settings for improved ride quality and control on-road and off.

Key Features

Coilover length optimized for an existing Pro Comp 6-inch lift kit (sold separately) — these do not lift the truck on their own
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
ICON CDCV manual adjuster gives 10 external compression settings to tune the ride by hand
100% rebuildable and revalveable for long service life

What's Included

Sold as a front pair of CDCV coilovers with 700 lb/in springs; the Pro Comp 6-inch lift kit is sold separately.

Fitment

This kit is a direct front-suspension fit for 2005-2023 Toyota Tacoma. This is the front coilover kit only; rear shocks are sold separately. Does not fit 2005-2015 2WD 5-lug Tacoma models.

FAQ

Do these coilovers lift my truck on their own?

No. The ICON 58731C-700-CB is a companion coilover set whose length is optimized for an existing Pro Comp 6-inch lift kit, which is sold separately.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

material: billet 6061 aircraft-grade aluminum components with a corrosion-resistant CAD-plated 2.5-inch shock body and 7/8-inch shaft
lug: 6-lug only
damping: CDCV manual compression adjuster with 10 external settings
sold as: pair (front)
reservoir: Remote Reservoir
shock body: 2.5 inch V.S. Series
spring rate: 700 lb/in
designed for: Pro Comp 6in lift (sold separately)
product line: ICON V.S. 2.5 Series
mounting position: Front (sold as a pair)
