ICON 2.5 VS RR Front Coilover Kit for 2005-2023 Toyota Tacoma

Name: ICON 2.5 VS RR Front Coilover Kit for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: 58730
Price: 1975.95 USD
Availability: InStock

$1,975.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58730

Available to order — typically ships in ~1–2 weeks

Calculated shipping — oversized item
Typically ships in ~1–2 weeks
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3.5 inches of front lift (0-2.75 inches on 2016-2023 models) with on-vehicle ride-height adjustment to clear larger tires
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life

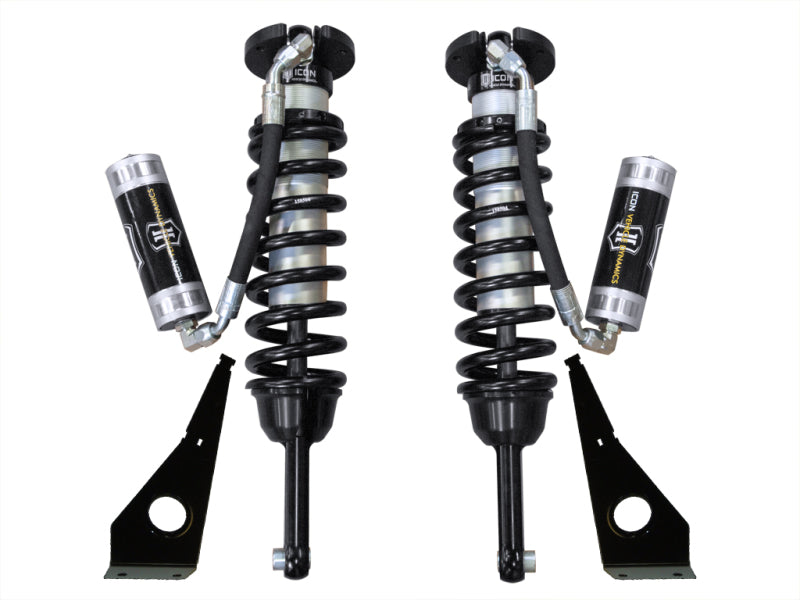

The ICON Vehicle Dynamics V.S. 2.5 Series remote-reservoir front coilover kit (MPN 58730) is a bolt-in front suspension upgrade for the 2005-2023 Toyota Tacoma, providing 0-3.5 inches of front lift (0-2.75 inches on 2016-2023 models). It replaces the factory front struts with rebuildable, 2.5-inch remote reservoir shocks featuring velocity-sensitive (V.S.) non-adjustable valving for improved ride quality and control on-road and off.

Key Features

Provides 0-3.5 inches of front lift (0-2.75 inches on 2016-2023 models) with on-vehicle ride-height adjustment to clear larger tires
2.5-inch remote reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life

What's Included

Sold as a front pair and includes sway bar relocation brackets and reservoir mounting brackets.

Fitment

This kit is a direct front-suspension fit for 2005-2023 Toyota Tacoma. It is engineered to work within the factory suspension geometry. This is the front coilover kit only; rear shocks are sold separately. Does not fit 2005-2015 2WD 5-lug Tacoma models.

FAQ

How much lift does the ICON 58730 provide?

It provides 0-3.5 inches on 2005-2015 models and 0-2.75 inches on 2016-2023 models, with 2017-2023 TRD Pro models limited to 0-1.25 inches, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

No. The 58730 is engineered to run with the factory upper control arms, so no aftermarket arms are required for a bolt-in install.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

material: a CAD-plated 2.5-inch shock body with a billet aluminum upper mount and a 5/8-inch PTFE-lined spherical bearing
body: 2.5in
travel: Standard travel
damping: Velocity-sensitive (V.S.) non-adjustable valving
valving: Velocity Sensitive
reservoir: Remote Reservoir
product line: ICON V.S. 2.5 Series
front lift range: 0-3.5 inches on 2005-2015 models and 0-2.75 inches on 2016-2023 models, with 2017-2023 TRD Pro models limited to 0-1.25 inches
mounting position: Front (sold as a pair)
