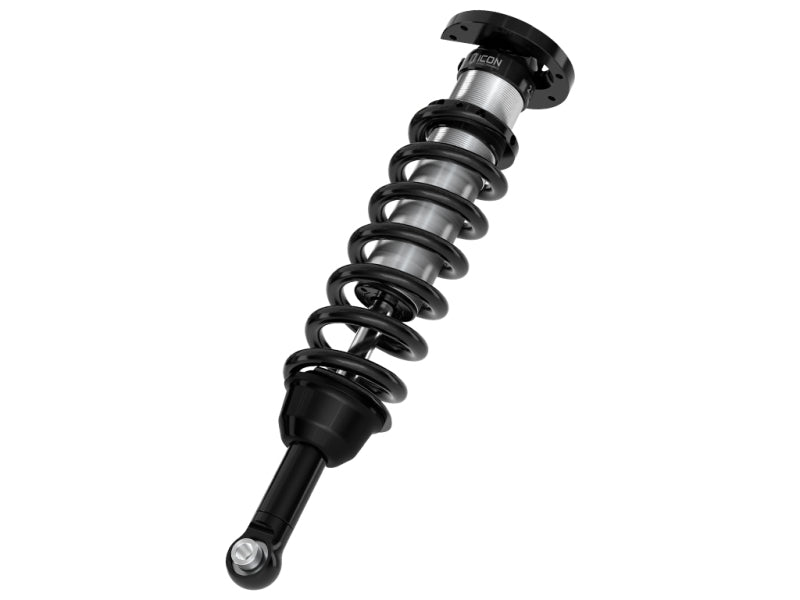

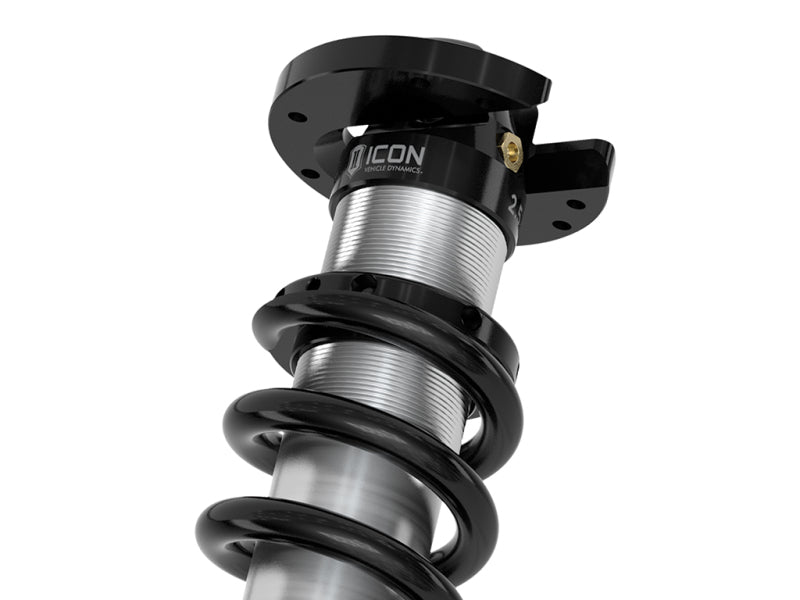

ICON 2.5 Series Front Coilover Kit for 2024-2026 Lexus GX550

Name: ICON 2.5 Series Front Coilover Kit for 2024-2026 Lexus GX550
Brand: ICON
SKU: 58690
Price: 1518.35 USD
Availability: InStock

$1,518.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58690

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 1.25-3 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
2.5-inch internal reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life

The ICON Vehicle Dynamics V.S. 2.5 Series internal-reservoir front coilover kit (MPN 58690) is a bolt-in front suspension upgrade for the 2024-2026 Lexus GX550, providing 1.25-3 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch internal reservoir shocks featuring velocity-sensitive (V.S.) non-adjustable valving for improved ride quality and control on-road and off.

Key Features

Provides 1.25-3 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
2.5-inch internal reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life

Specifications

Brand: ICON Vehicle Dynamics
Part number (MPN): 58690
Series: ICON V.S. 2.5 Series
Reservoir: Internal Reservoir
Front lift range: 1.25-3 inches of front lift
Damping: Velocity-sensitive (V.S.) non-adjustable valving
Position: Front (sold as a pair)
Travel: Standard travel
Construction: billet 6061 aircraft-grade aluminum components with a corrosion-resistant CAD-plated 2.5-inch shock body and 7/8-inch shaft

What's Included

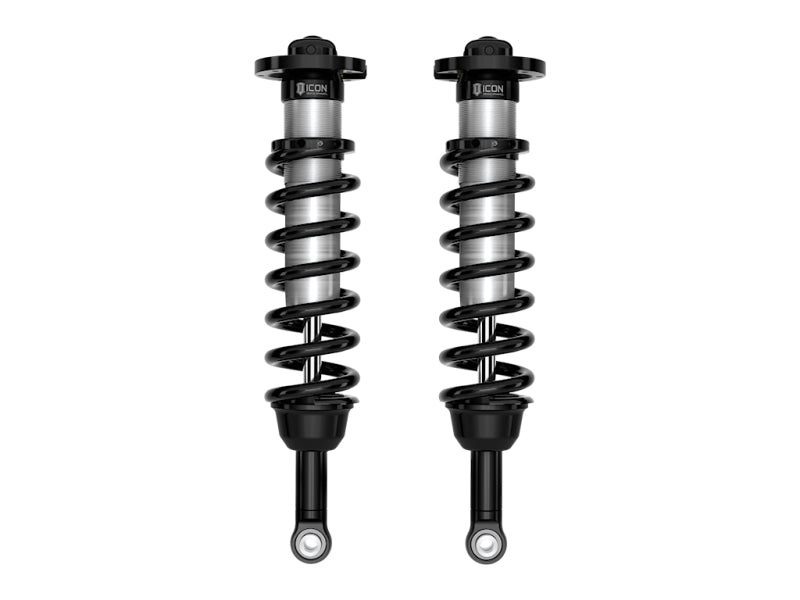

Sold as a front pair of preassembled coilovers (shock and coil spring per side).

Fitment

This kit is a direct front-suspension fit for 2024-2026 Lexus GX550. ICON Delta Joint Pro front upper control arms are recommended to maintain proper alignment above 2 inches of lift. This is the front coilover kit only; rear shocks are sold separately. Does not fit the GX550 Overtrail and is not compatible with Adaptive Variable Suspension (AVS); 4WD/AWD models require the ICON front differential drop kit (part #55156).

FAQ

How much lift does the ICON 58690 provide?

It provides 1.25-3 inches of front lift, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

ICON Delta Joint Pro front upper control arms are recommended to maintain proper alignment above 2 inches of lift.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Will this fit an AVS-equipped or Overtrail model?

Does not fit the GX550 Overtrail and is not compatible with Adaptive Variable Suspension (AVS); 4WD/AWD models require the ICON front differential drop kit (part #55156).
