ICON 2.5 VS IR Ext Travel Coilovers for 10-24 4Runner FJ GX460

Name: ICON 2.5 VS IR Ext Travel Coilovers for 10-24 4Runner FJ GX460
Brand: ICON
SKU: 58647
Price: 1518.35 USD
Availability: InStock

$1,518.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58647

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch internal reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

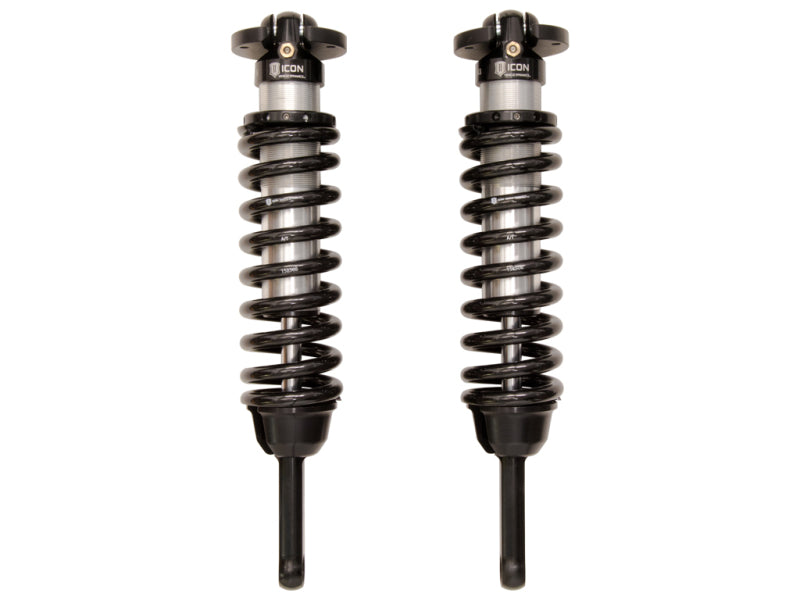

The ICON Vehicle Dynamics V.S. 2.5 Series internal-reservoir extended-travel front coilover kit (MPN 58647) is a bolt-in front suspension upgrade for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460, providing 0-3.5 inches of front lift. It replaces the factory front struts with rebuildable, 2.5-inch internal reservoir shocks featuring velocity-sensitive (V.S.) non-adjustable valving for improved ride quality and control on-road and off.

Key Features

Provides 0-3.5 inches of front lift with on-vehicle ride-height adjustment to clear larger tires
Extended-travel design increases usable front wheel travel over stock for better articulation
2.5-inch internal reservoir shock body adds oil capacity and resists heat fade on long trails
Velocity-sensitive valving tunes damping to terrain for a smooth street ride and firm off-road control
100% rebuildable and revalveable for long service life
Extended-travel length requires aftermarket front upper control arms

What's Included

Sold as a front pair of preassembled coilovers (shock and coil spring per side).

Fitment

This kit is a direct front-suspension fit for 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. Its extended-travel length requires aftermarket front upper control arms. This is the front coilover kit only; rear shocks are sold separately.

FAQ

How much lift does the ICON 58647 provide?

It provides 0-3.5 inches of front lift, adjustable on the vehicle by turning the coilover's spring collar.

Do I need aftermarket upper control arms?

Yes. The extended-travel length of the 58647 requires aftermarket front upper control arms for correct alignment and clearance.

Is this sold as a pair or a single coilover?

It is sold as a complete front pair (left and right); rear shocks are sold separately.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2010–2023	Lexus	GX460	—	Front
2010–2024	Toyota	4Runner	—	Front
2010–2014	Toyota	FJ Cruiser	—	Front

Specifications

material: a corrosion-resistant CAD-plated 2.5-inch aluminum shock body, 7/8-inch shaft, and FK rod-end bearings
shaft: 7/8 in
style: Extended Travel
valve: Vehicle Specific (non-adjustable, internal reservoir)
travel: Extended travel
damping: Velocity-sensitive (V.S.) non-adjustable valving
sold as: front pair
reservoir: Internal Reservoir (IR)
lift range: 0-3.5 in front
rear shocks: sold separately
product line: ICON V.S. 2.5 Series
uca required: Aftermarket front upper control arms required
body diameter: 2.5 in CAD-plated aluminum
front lift range: 0-3.5 inches of front lift
mounting position: Front (sold as a pair)
