ICON 2.5 VS IR Front Coilover Kit for 2010-2024 Toyota 4Runner

Name: ICON 2.5 VS IR Front Coilover Kit for 2010-2024 Toyota 4Runner
Brand: ICON
SKU: 58646
Price: 1518.35 USD
Availability: InStock

$1,518.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58646

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5 inches of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life

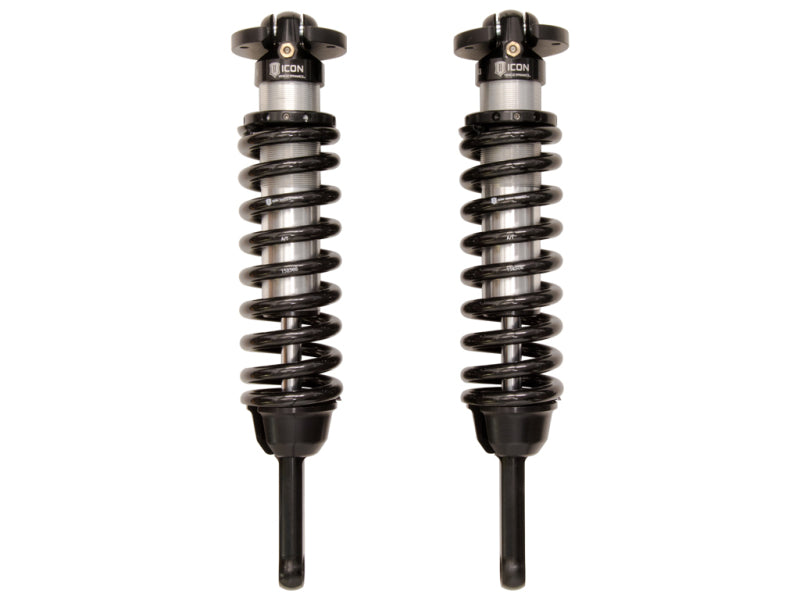

The ICON Vehicle Dynamics 58646 is a Vehicle Specific (V.S.) 2.5 Series front coilover kit for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460.

It replaces the tired factory front struts with a rebuildable 2.5-inch internal-reservoir coilover tuned specifically for this platform.

Key Features

0-3.5 inches of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life
Shocks are fully rebuildable and revalvable; ICON coil springs are guaranteed for life against sagging or breakage (shock bodies carry ICON's 12-month manufacturer-defect warranty).

What's Included

Pair of assembled front coilovers (left and right) with pre-installed ICON coil springs
Mounting hardware
Front kit only — rear shocks are sold separately

Fitment

Fits the following applications, verified for ICON part number 58646: 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, 2010-2023 Lexus GX460. Standard-travel version tuned for the stock upper control arms; a 700 lb/in expedition coil is available separately for heavily loaded builds. Designed to run with the factory front upper control arms. A 700 lb/in expedition coil is available separately for trucks carrying added front-end weight. Front kit only where applicable; rear shocks and any required control arms are sold separately.

2010-2024 Toyota 4Runner
2010-2014 Toyota FJ Cruiser
2010-2023 Lexus GX460

FAQ

How much lift do the 58646 coilovers provide?

0-3.5 inches of adjustable front lift.

Do I need aftermarket upper control arms?

No — 58646 is the standard-travel kit and is compatible with the factory front upper control arms, installing in the OEM shock location.

Are these electronically adjustable?

No. They use ICON's non-adjustable Vehicle Specific (V.S.) valving — no CDCV knob or CDEV controller.

Vehicle Fitment

Years	Make	Model	Submodel
2010–2023	Lexus	GX460	—
2010–2024	Toyota	4Runner	—
2010–2014	Toyota	FJ Cruiser	—

Specifications

lift: 0-3.5in (adjustable)
note: KDSS: add rear track bar when lifted
type: 2.5 Series internal-reservoir coilover (VS IR)
feature: Rebuildable/revalveable
sold as: Pair
valving: Vehicle Specific, non-adjustable (no CDCV or CDEV)
reservoir: Internal reservoir (IR)
shock body: 2.5-inch diameter, CNC-machined 6061 aluminum, CAD-plated, 7/8-inch shaft
product line: ICON Vehicle Specific (V.S.) 2.5 Series
front lift range: 0-3.5 inches
mounting position: Front (sold as a pair)
