ICON

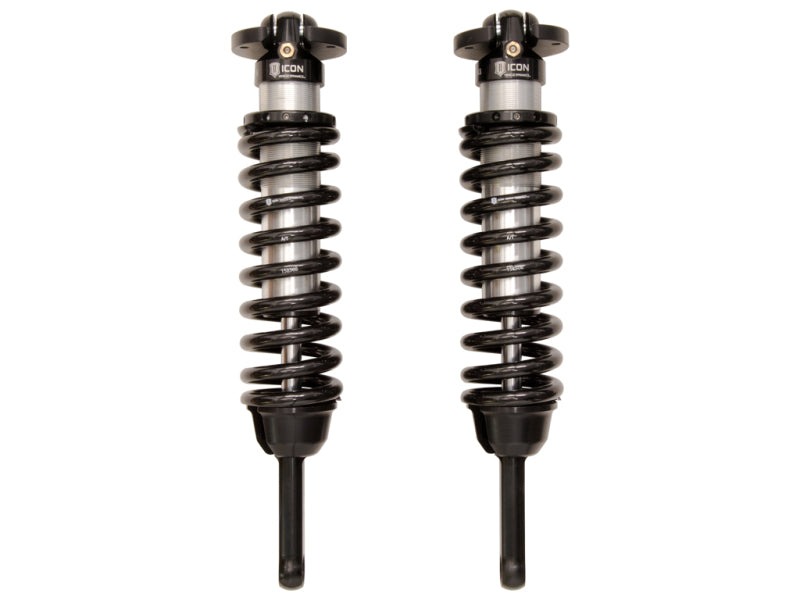

ICON 2.5 VS IR Front Coilover Kit 700lb for 2005-2023 Tacoma

Name: ICON 2.5 VS IR Front Coilover Kit 700lb for 2005-2023 Tacoma
Brand: ICON
SKU: 58635-700
Price: 1726.35 USD
Availability: BackOrder

$1,726.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58635-700

On backorder — ships when back in stock

Calculated shipping — oversized item
Ships when back in stock
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5 inches on 2005-2015 and 0-2.75 inches on 2016-2023 (0-1.25 inches on the 2017-2023 TRD Pro) of ICON-tuned adjustable front lift via the threaded lower spring seat
700 lb/in expedition coil springs support the added front-end weight of steel bumpers, winches and skid plates
Extended-travel length maximizes front wheel travel off-road (requires aftermarket upper control arms)
2.5-inch shock body with increased piston area for better heat management and fade resistance
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft

The ICON Vehicle Dynamics 58635-700 is a Vehicle Specific (V.S.) 2.5 Series extended-travel front coilover kit for the 2005-2023 Toyota Tacoma.

It replaces the tired factory front struts with a rebuildable 2.5-inch internal-reservoir coilover tuned specifically for this platform.

Key Features

0-3.5 inches on 2005-2015 and 0-2.75 inches on 2016-2023 (0-1.25 inches on the 2017-2023 TRD Pro) of ICON-tuned adjustable front lift via the threaded lower spring seat
700 lb/in expedition coil springs support the added front-end weight of steel bumpers, winches and skid plates
Extended-travel length maximizes front wheel travel off-road (requires aftermarket upper control arms)
2.5-inch shock body with increased piston area for better heat management and fade resistance
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life
Shocks are fully rebuildable and revalvable; ICON coil springs are guaranteed for life against sagging or breakage (shock bodies carry ICON's 12-month manufacturer-defect warranty).

What's Included

Pair of assembled front coilovers (left and right) with pre-installed ICON 700 lb/in coil springs
Mounting hardware
Front kit only — rear shocks are sold separately

Fitment

Fits the following applications, verified for ICON part number 58635-700: 2005-2023 Toyota Tacoma. Extended-travel version with 700 lb/in coils; the base-spring extended-travel kit is ICON 58635 and the standard-travel kit is ICON 58630. Does not fit 2WD 5-lug Tacoma models. The extended-travel length requires aftermarket front upper control arms (sold separately). Front kit only where applicable; rear shocks and any required control arms are sold separately.

2005-2023 Toyota Tacoma

FAQ

Do the 58635-700 coilovers have a CDCV adjuster?

No. 58635-700 is an internal-reservoir coilover with ICON's non-adjustable Vehicle Specific (V.S.) valving — there is no CDCV knob or CDEV electronic controller.

What does the -700 mean?

It is fitted with 700 lb/in coil springs for trucks carrying added front-end weight such as bumpers and winches.

Do these need aftermarket upper control arms?

Yes. This is the extended-travel kit and requires aftermarket front upper control arms.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

valve: CDCV
series: ICON 2.5 Vehicle Specific (VS) Internal Reservoir
sold as: front pair
valving: Vehicle Specific, non-adjustable (no CDCV or CDEV)
reservoir: Internal reservoir (IR)
lift range: 0-3.5 in front
shock body: 2.5-inch diameter, CNC-machined 6061 aluminum, CAD-plated, 7/8-inch shaft
rear shocks: sold separately
rebuildable: yes
spring rate: 700 lb/in expedition coils
front lift range: 0-3.5 inches on 2005-2015 and 0-2.75 inches on 2016-2023 (0-1.25 inches on the 2017-2023 TRD Pro)
recommended tire: 33 x 11.50
mounting position: Front (sold as a pair)
requires aftermarket uca: yes
