ICON

ICON 2.5 VS IR Front Coilover Kit for 2005-2023 Toyota Tacoma

Name: ICON 2.5 VS IR Front Coilover Kit for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: 58635
Price: 1518.35 USD
Availability: InStock

$1,518.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58635

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5 inches on 2005-2015 and 0-2.75 inches on 2016-2023 (0-1.25 inches on the 2017-2023 TRD Pro) of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Extended-travel length maximizes front wheel travel off-road (requires aftermarket upper control arms)
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life

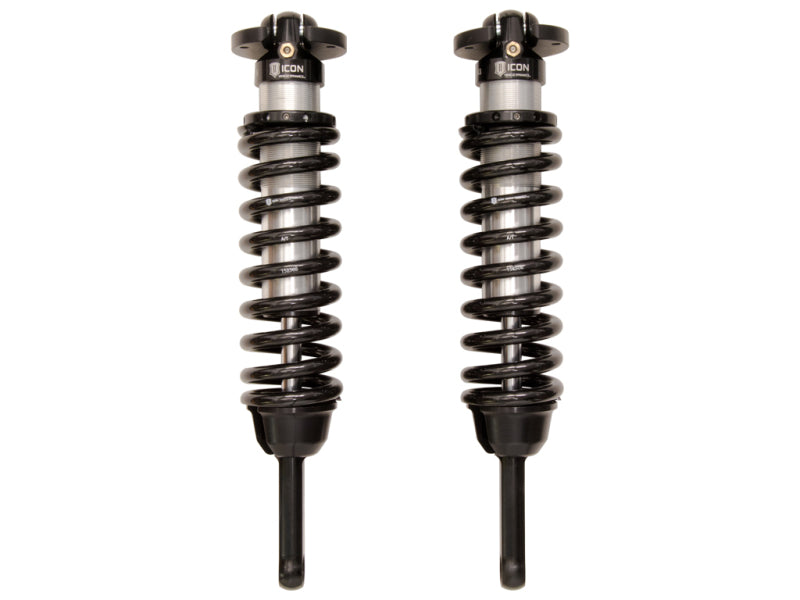

The ICON Vehicle Dynamics 58635 is a Vehicle Specific (V.S.) 2.5 Series extended-travel front coilover kit for the 2005-2023 Toyota Tacoma.

It replaces the tired factory front struts with a rebuildable 2.5-inch internal-reservoir coilover tuned specifically for this platform.

Key Features

0-3.5 inches on 2005-2015 and 0-2.75 inches on 2016-2023 (0-1.25 inches on the 2017-2023 TRD Pro) of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Extended-travel length maximizes front wheel travel off-road (requires aftermarket upper control arms)
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life
Shocks are fully rebuildable and revalvable; ICON coil springs are guaranteed for life against sagging or breakage (shock bodies carry ICON's 12-month manufacturer-defect warranty).

What's Included

Pair of assembled front coilovers (left and right) with pre-installed ICON coil springs
Mounting hardware
Front kit only — rear shocks are sold separately

Fitment

Fits the following applications, verified for ICON part number 58635: 2005-2023 Toyota Tacoma. Extended-travel version that requires aftermarket upper control arms; the standard-travel kit for stock UCAs is ICON 58630, and the 700 lb/in version is ICON 58635-700. Does not fit 2WD 5-lug Tacoma models. The extended-travel length requires aftermarket front upper control arms (sold separately). If you are keeping the factory upper control arms, choose the standard-travel ICON 58630 instead. Front kit only where applicable; rear shocks and any required control arms are sold separately.

2005-2023 Toyota Tacoma

FAQ

Do the 58635 coilovers need aftermarket upper control arms?

Yes. This is the extended-travel kit; aftermarket front upper control arms are required to reach full travel and protect the ball joints.

What is the difference between 58630 and 58635?

58630 is standard travel for the stock upper control arms; 58635 is the extended-travel version that requires aftermarket UCAs for maximum wheel travel.

How much lift do they provide?

0-3.5 inches on 2005-2015 Tacoma and 0-2.75 inches on 2016-2023 (0-1.25 inches on the 2017-2023 TRD Pro).

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

valve: VS
valving: Vehicle Specific, non-adjustable (no CDCV or CDEV)
reservoir: Internal reservoir (IR)
shock body: 2.5-inch diameter, CNC-machined 6061 aluminum, CAD-plated, 7/8-inch shaft
rear shocks: sold separately
product line: ICON Vehicle Specific (V.S.) 2.5 Series
uca required: aftermarket front upper control arms required
lift range: 0-3.5 (05-15) / 0-2.75 (16-23) in
front lift range: 0-3.5 inches on 2005-2015 and 0-2.75 inches on 2016-2023 (0-1.25 inches on the 2017-2023 TRD Pro)
mounting position: Front (sold as a pair)
shaft diameter: 0.875 in
adjustable damping: no
controller required: none
