ICON 2.5 VS IR Front Coilover Kit for 2005-2023 Toyota Tacoma

Name: ICON 2.5 VS IR Front Coilover Kit for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: 58630
Price: 1518.35 USD
Availability: InStock

$1,518.35 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58630

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

0-3.5 inches on 2005-2015 and 0-2.75 inches on 2016-2023 (0-1.25 inches on the 2017-2023 TRD Pro) of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life

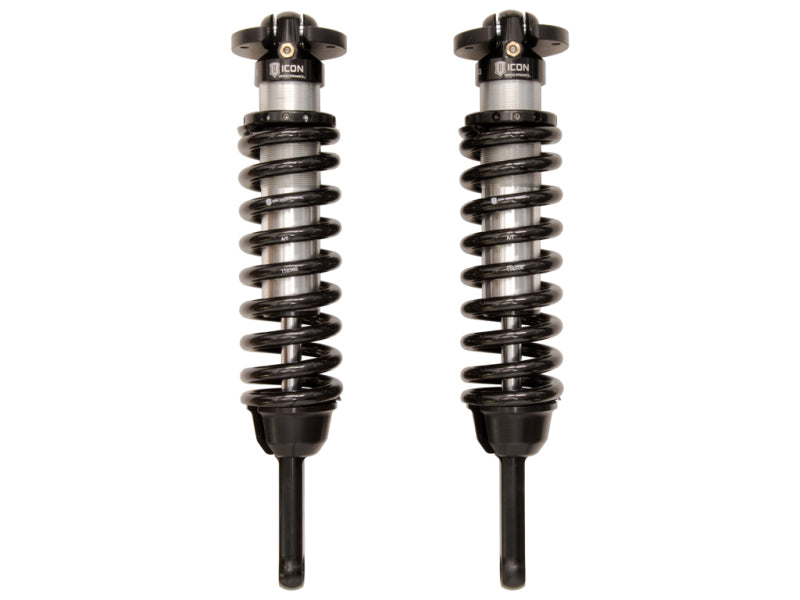

The ICON Vehicle Dynamics 58630 is a Vehicle Specific (V.S.) 2.5 Series front coilover kit for the 2005-2023 Toyota Tacoma.

It replaces the tired factory front struts with a rebuildable 2.5-inch internal-reservoir coilover tuned specifically for this platform.

Key Features

0-3.5 inches on 2005-2015 and 0-2.75 inches on 2016-2023 (0-1.25 inches on the 2017-2023 TRD Pro) of ICON-tuned adjustable front lift via the threaded lower spring seat
2.5-inch shock body with increased piston area for better heat management and fade resistance
Internal-reservoir (IR) design adds oil capacity without external plumbing
Vehicle Specific (V.S.) length and damping tune configured for this exact platform — non-adjustable (no CDCV knob or CDEV electronic controller)
CNC-machined 6061 aluminum components, CAD-plated shock body and 7/8-inch shaft
Fully rebuildable and revalvable for long service life
Shocks are fully rebuildable and revalvable; ICON coil springs are guaranteed for life against sagging or breakage (shock bodies carry ICON's 12-month manufacturer-defect warranty).

What's Included

Pair of assembled front coilovers (left and right) with pre-installed ICON coil springs
Mounting hardware
Front kit only — rear shocks are sold separately

Specifications

Position: Front (sold as a pair)
Series: ICON Vehicle Specific (V.S.) 2.5 Series
Shock body: 2.5-inch diameter, CNC-machined 6061 aluminum, CAD-plated, 7/8-inch shaft
Reservoir: Internal reservoir (IR)
Valving: Vehicle Specific, non-adjustable (no CDCV or CDEV)
Front lift range: 0-3.5 inches on 2005-2015 and 0-2.75 inches on 2016-2023 (0-1.25 inches on the 2017-2023 TRD Pro)
Brand: ICON Vehicle Dynamics
Part number: 58630

Fitment

Fits the following applications, verified for ICON part number 58630: 2005-2023 Toyota Tacoma. Standard-travel version for stock upper control arms; the extended-travel version (requires aftermarket UCAs) is ICON 58635, and the 700 lb/in version is ICON 58630-700. Does not fit 2WD 5-lug Tacoma models. Designed to run with the factory front upper control arms. For a long-travel build with aftermarket UCAs choose the extended-travel ICON 58635 instead. Front kit only where applicable; rear shocks and any required control arms are sold separately.
