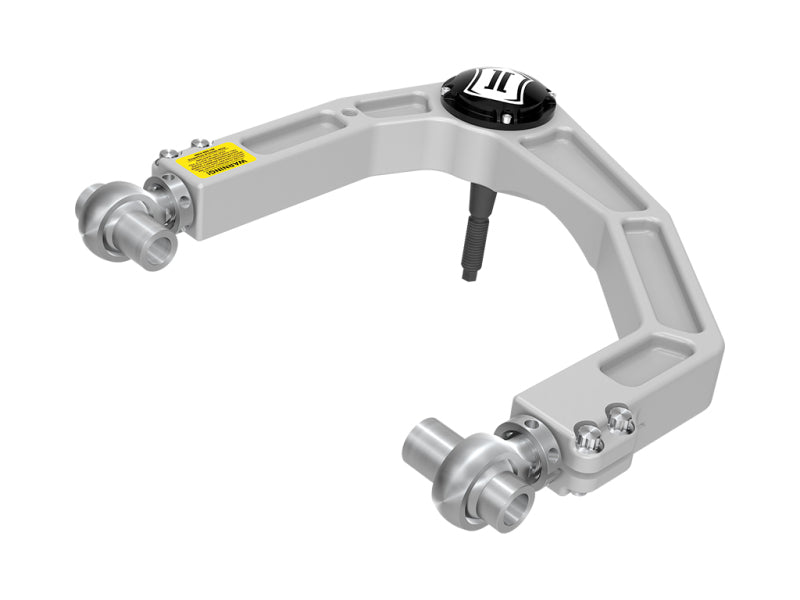

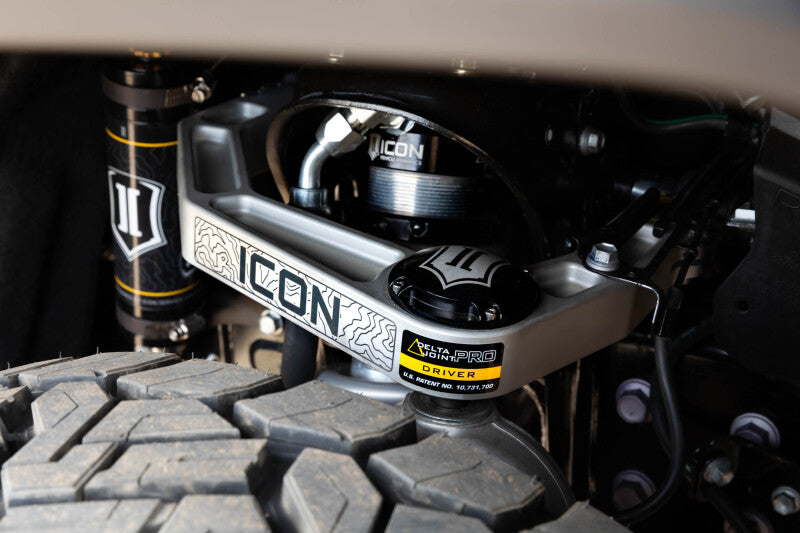

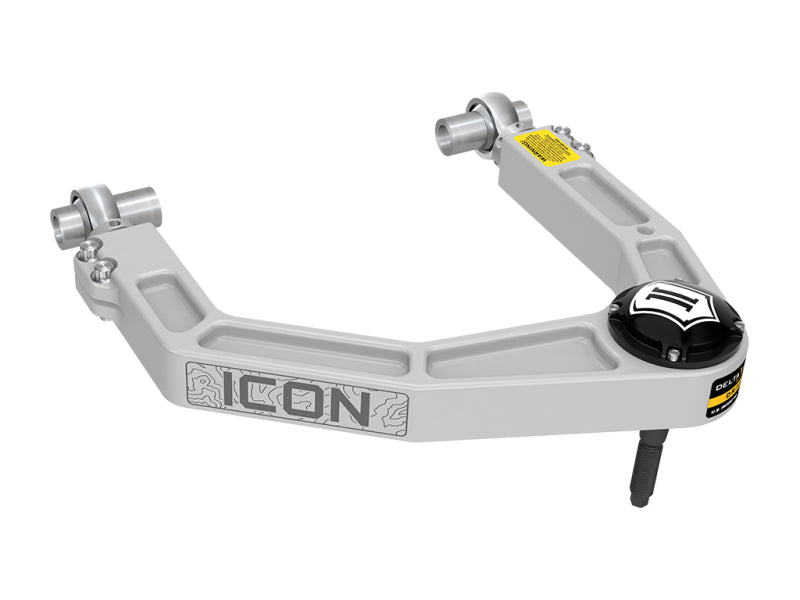

ICON Billet UCA Delta Joint Pro Kit for 2024-25 Toyota Tacoma

Upgrade the front suspension of your 2024-2025 Toyota Tacoma, 2024 Land Cruiser 250 Series, or 2024 Lexus GX550 with the ICON Vehicle Dynamics Billet Upper Control Arm Delta Joint Pro Kit (58552DJ). CNC-machined from 6061 billet aluminum with a hybrid H-beam cross-section, these arms correct front-end geometry and add the adjustment range you need when running a lift.

Key Benefits

• Corrects front-end geometry and restores proper alignment on lifts up to 3 inches
• On-vehicle caster and camber adjustment via ICON's signature double adjuster sleeve
• Serviceable, rebuildable Delta Joint Pro replaces the OE ball joint and allows full bump and droop travel without bind
• Lightweight billet H-beam design resists bending better than tubular arms
• FK 3/4in heim rod ends at the chassis pivots for precise, smooth articulation

What's Included

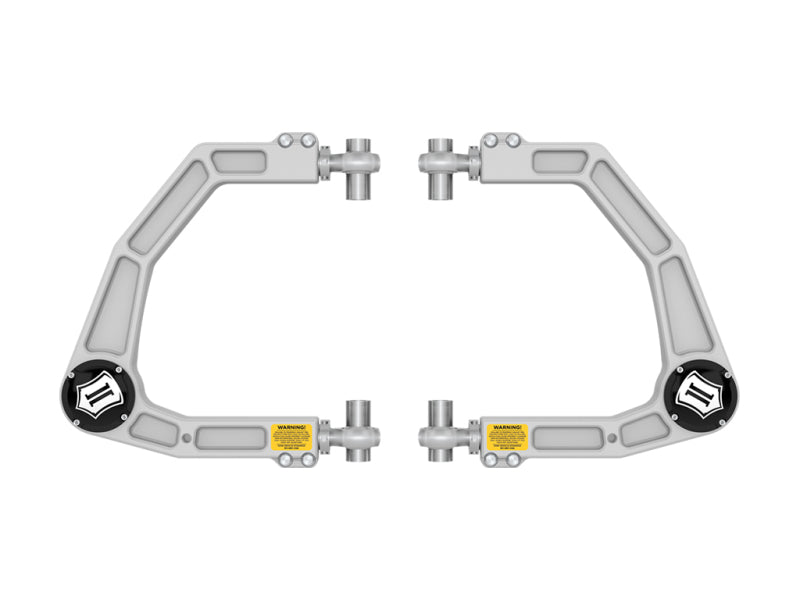

• Pair of front billet aluminum upper control arms (driver and passenger)
• ICON Delta Joint Pro ball joints (pre-installed, serviceable)
• FK rod end heim joints and mounting hardware

Specifications

• Position: Front
• Material: CNC-machined 6061 billet aluminum, hybrid H-beam cross-section
• Ball joint: ICON Delta Joint Pro (rebuildable/serviceable)
• Pivot: FK 3/4in heim rod ends
• Adjustment: On-vehicle caster and camber
• Lift range supported: up to 3 inches
• Recommended tire: up to 33x11.50

Fitment

Direct bolt-on replacement for the factory front upper control arms. Verified for the following ICON applications for part 58552DJ:

• 2024-2025 Toyota Tacoma
• 2024 Toyota Land Cruiser 250 Series
• 2024 Lexus GX550
