ICON Delta Joint Billet Upper Control Arms for 2005-2023 Toyota Tacoma

Name: ICON Delta Joint Billet Upper Control Arms for 2005-2023 Toyota Tacoma
Brand: ICON
SKU: 58550DJ
Price: 1429.95 USD
Availability: InStock

$1,429.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58550DJ

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

CNC-machined 6061 billet aluminum arms are light and corrosion-resistant

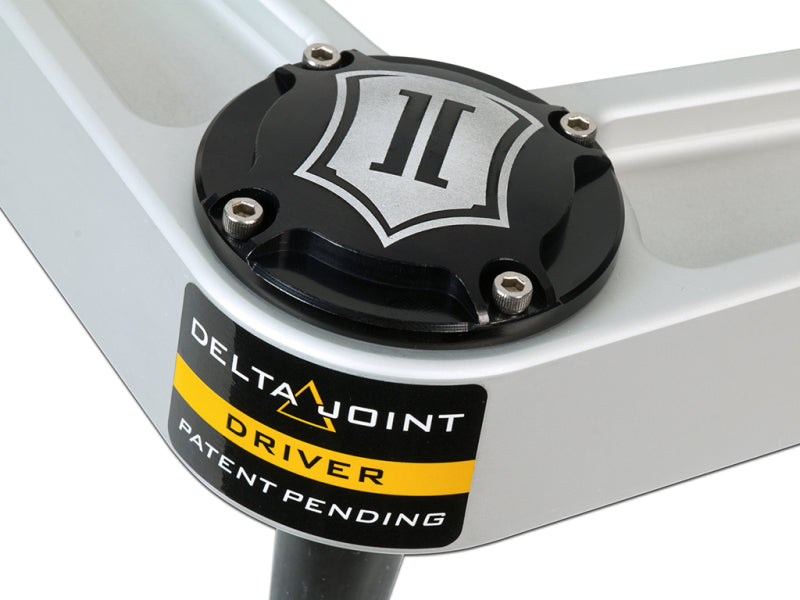

ICON patented Delta Joint high-angle sealed ball joint gives uniball-style articulation with sealed, rebuildable ball-joint durability

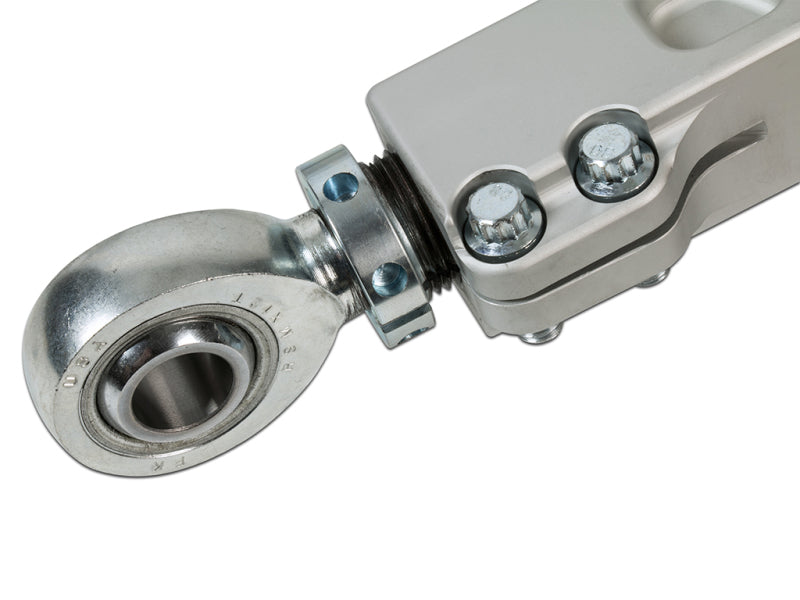

Threaded adjuster sleeves allow on-vehicle caster and camber tuning
Corrects front-end geometry and adds droop travel over the factory rubber-bushed arms
Direct bolt-in replacement for the factory upper control arms using the OEM mounting points

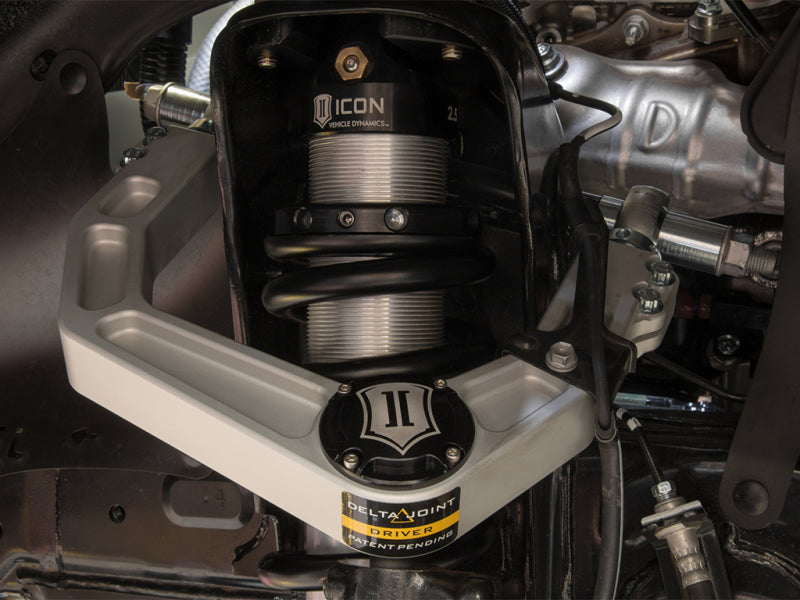

The ICON Vehicle Dynamics 58550DJ is a billet aluminum Delta Joint upper control arm kit for the 2005-2023 Toyota Tacoma.

It replaces the factory upper control arms to restore correct front-end geometry and add tire and travel clearance when running an ICON front coilover lift.

Key Features

CNC-machined 6061 billet aluminum arms are light and corrosion-resistant
ICON patented Delta Joint high-angle sealed ball joint gives uniball-style articulation with sealed, rebuildable ball-joint durability
Threaded adjuster sleeves allow on-vehicle caster and camber tuning
Corrects front-end geometry and adds droop travel over the factory rubber-bushed arms
Direct bolt-in replacement for the factory upper control arms using the OEM mounting points
Backed by ICON's limited lifetime warranty on the fabricated weldment; the Delta Joint carries a 5-year limited warranty when run in a complete ICON suspension system.

What's Included

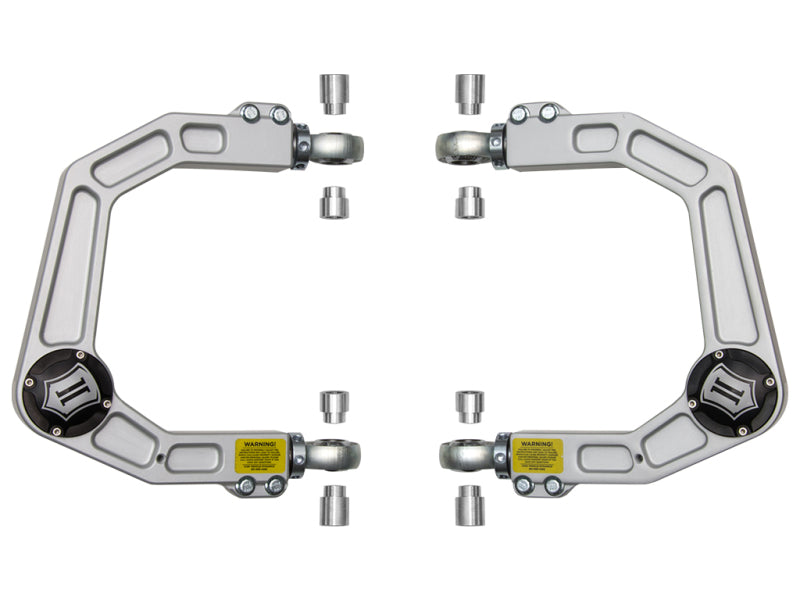

Pair of billet aluminum upper control arms (left and right) with integrated Delta Joint assemblies
Serviceable bushings/adjuster hardware
Installation hardware and instructions

Fitment

Direct-fit for the following applications, verified for ICON part number 58550DJ: 2005-2023 Toyota Tacoma. CNC-machined 6061 billet version with on-vehicle caster/camber adjustment; the tubular 1026 DOM steel version is ICON 58450DJ. This is the billet aluminum arm — for the tubular steel version see ICON 58450DJ. Fits 6-lug 2005-2023 Tacoma; not the 2WD 5-lug models.

2005-2023 Toyota Tacoma

FAQ

What is the difference between the billet and tubular ICON UCAs?

The billet arm is CNC-machined from 6061 aluminum with threaded adjuster sleeves for on-vehicle caster and camber tuning; the tubular arm (ICON 58450DJ) is welded 1026 DOM steel with fixed built-in caster. Both use the Delta Joint.

Can I adjust caster and camber?

Yes — the billet arms use threaded adjuster sleeves for on-vehicle caster and camber correction after a lift.

What is the ICON Delta Joint?

ICON's patented high-angle sealed ball joint — uniball-style articulation with sealed, rebuildable ball-joint durability.

Vehicle Fitment

Years	Make	Model	Submodel	Position
2005–2023	Toyota	Tacoma	—	Front

Specifications

type: Upper Control Arm Kit
joint: ICON Delta Joint (patented high-angle sealed ball joint, U.S. Pat. 10,731,700)
material: CNC-machined 6061 aluminum, matte anodized
quantity: pair (driver + passenger)
adjustable: On-vehicle caster and camber
adjustability: on-vehicle caster and camber
mounting position: Front (sold as a pair, left and right)
lift compatibility: 0-3.5" front (2005-2015); 0-2.75" front (2016-2023)
knuckle requirement: OE steering knuckles only
drivetrain restriction: will not fit 2WD Tacoma with 5 wheel lug studs
