ICON Tubular Upper Control Arm Delta Joint Kit for 05-23 Tacoma

Name: ICON Tubular Upper Control Arm Delta Joint Kit for 05-23 Tacoma
Brand: ICON
SKU: 58450DJ
Price: 849.95 USD
Availability: InStock

$849.95 USD

Sale Sold out

Shipping calculated at checkout.

SKU:58450DJ

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

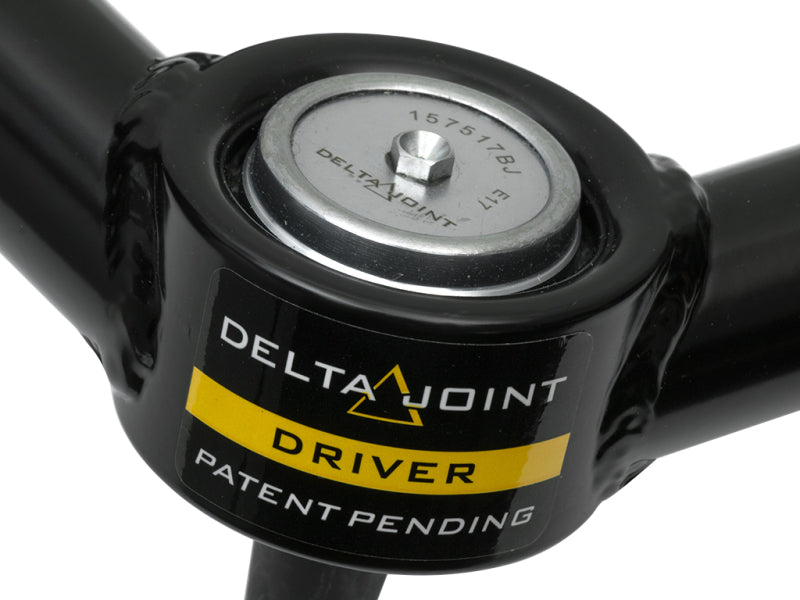

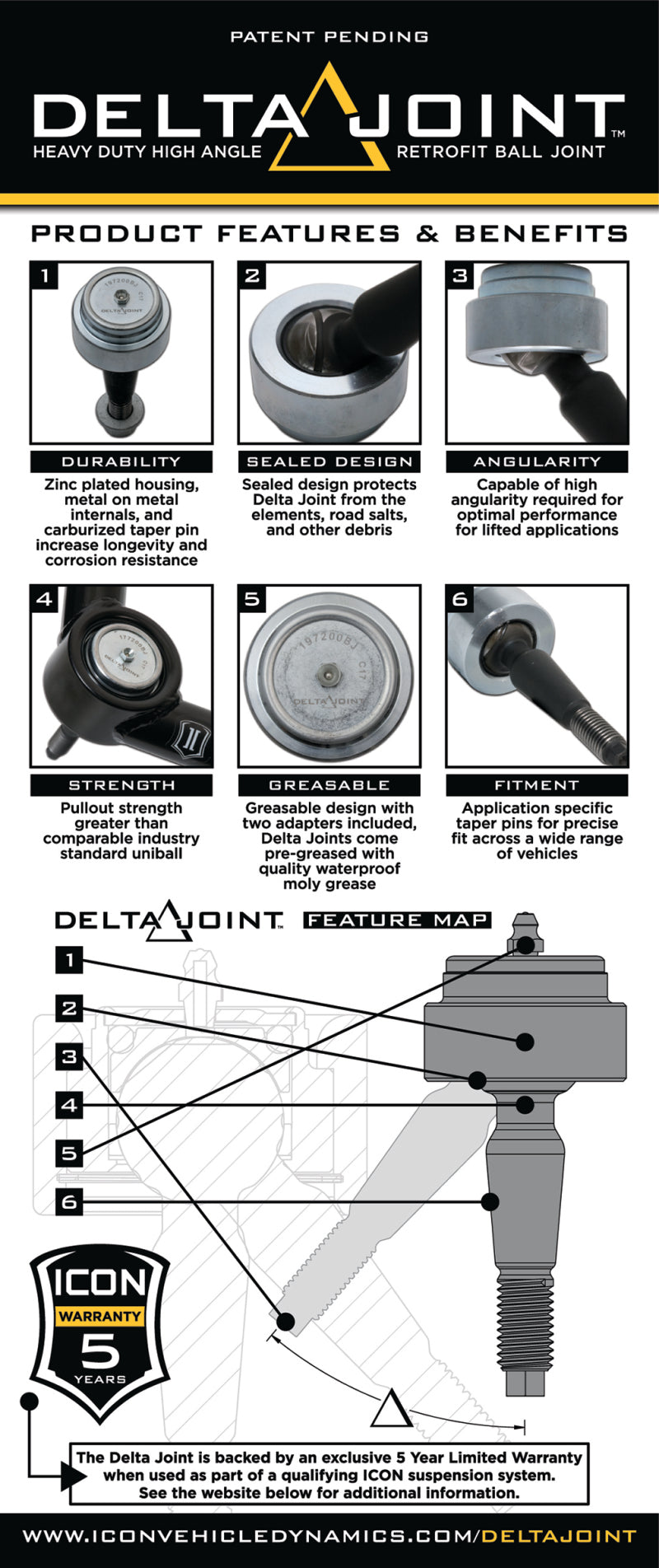

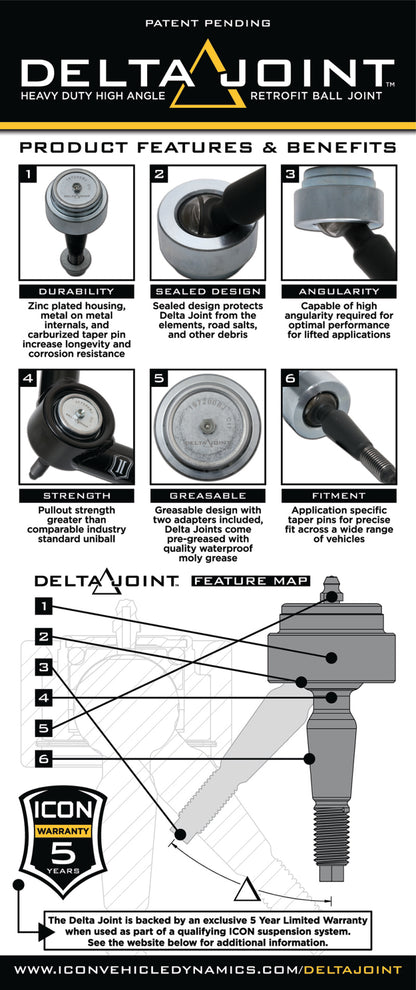

ICON patented Delta Joint high-angle sealed ball joint delivers uniball-style articulation with the sealed, weather-resistant durability of a ball joint, and is rebuildable
CNC-bent 1026 DOM steel tubing with a semi-gloss black powder coat
Built-in caster correction restores factory alignment after a front lift
Adds clearance for larger tires and increased suspension travel
Direct bolt-in replacement for the factory upper control arms using the OEM mounting points

The ICON Vehicle Dynamics 58450DJ is a tubular Delta Joint upper control arm kit for the 2005-2023 Toyota Tacoma.

It replaces the factory upper control arms to restore correct front-end geometry and add tire and travel clearance when running an ICON front coilover lift.

Key Features

ICON patented Delta Joint high-angle sealed ball joint delivers uniball-style articulation with the sealed, weather-resistant durability of a ball joint, and is rebuildable
CNC-bent 1026 DOM steel tubing with a semi-gloss black powder coat
Built-in caster correction restores factory alignment after a front lift
Adds clearance for larger tires and increased suspension travel
Direct bolt-in replacement for the factory upper control arms using the OEM mounting points
Backed by ICON's limited lifetime warranty on the fabricated weldment; the Delta Joint carries a 5-year limited warranty when run in a complete ICON suspension system.

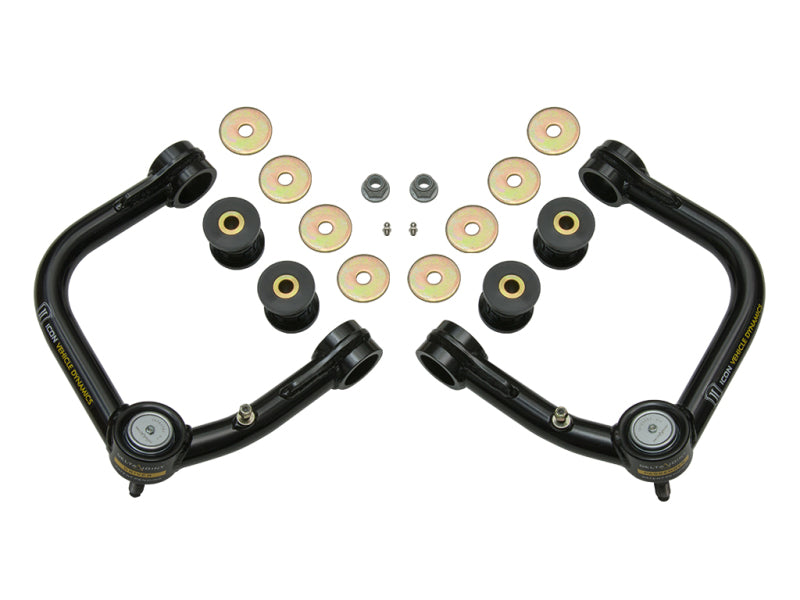

What's Included

Pair of tubular steel upper control arms (left and right) with integrated Delta Joint assemblies
Serviceable bushings/adjuster hardware
Installation hardware and instructions

Specifications

Position: Front (sold as a pair, left and right)
Joint: ICON Delta Joint (patented high-angle sealed ball joint)
Construction: CNC-bent 1026 DOM steel tubing, semi-gloss black powder coat
Adjustable: Built-in caster correction (fixed)
Brand: ICON Vehicle Dynamics
Part number: 58450DJ

Fitment

Direct-fit for the following applications, verified for ICON part number 58450DJ: 2005-2023 Toyota Tacoma. This is the tubular 1026 DOM steel version; the CNC-machined 6061 billet version with on-vehicle caster/camber adjustment is ICON 58550DJ. This is the tubular steel arm — for adjustable billet aluminum arms see ICON 58550DJ. Fits 6-lug 2005-2023 Tacoma; not the 2WD 5-lug models.

2005-2023 Toyota Tacoma

FAQ

What is the difference between 58450DJ and 58550DJ?

58450DJ is the tubular 1026 DOM steel arm with fixed built-in caster; 58550DJ is the CNC-machined 6061 billet arm with adjuster sleeves for on-vehicle caster and camber tuning. Both use the Delta Joint.

What is the ICON Delta Joint?

ICON's patented high-angle sealed ball joint — uniball-style articulation with sealed, rebuildable ball-joint durability.

Do I need these for an ICON lift?

They replace the factory uppers to restore correct geometry and add tire clearance when you run an ICON front coilover lift, and bolt in at the OEM mounting points.
