Diode Dynamics

Diode Dynamics TRD Pro Grille 18" LED Light Bar Kit for 2022-2025

Name: Diode Dynamics TRD Pro Grille 18" LED Light Bar Kit for 2022-2025
Brand: Diode Dynamics
SKU: DD7416
Price: 379.95 USD
Availability: InStock

$379.95 USD

Sale Sold out

Shipping calculated at checkout.

Free Shipping

SKU:DD7416

In stock

FREE shipping on this item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Mounts one 18-inch LED light bar cleanly behind the TRD Pro grille
No-cut, no-drill install using factory mounting points
Powder-coated steel brackets for durable, rattle-free mounting
Plug-and-play wiring harness included, no splicing required
Amber Combo optic for wide spread plus long-distance throw
2,400 lumen output with IP68 waterproof construction
OEM-like integrated appearance that suits the TRD Pro front end

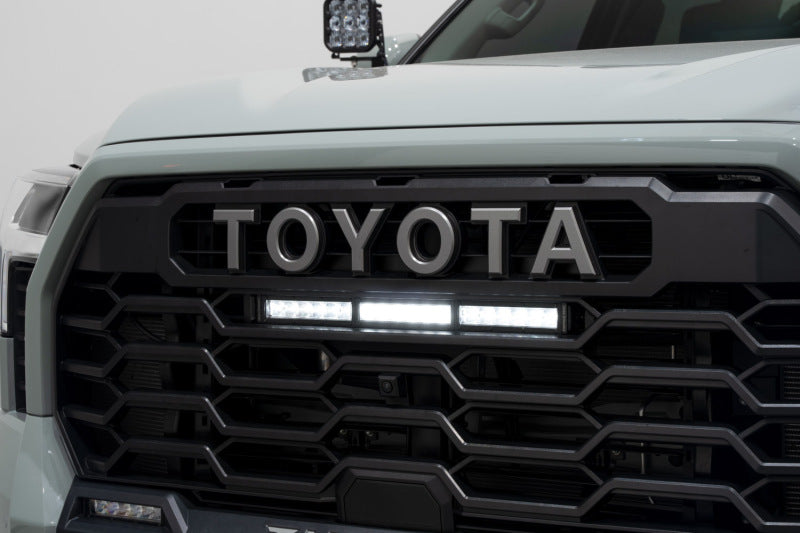

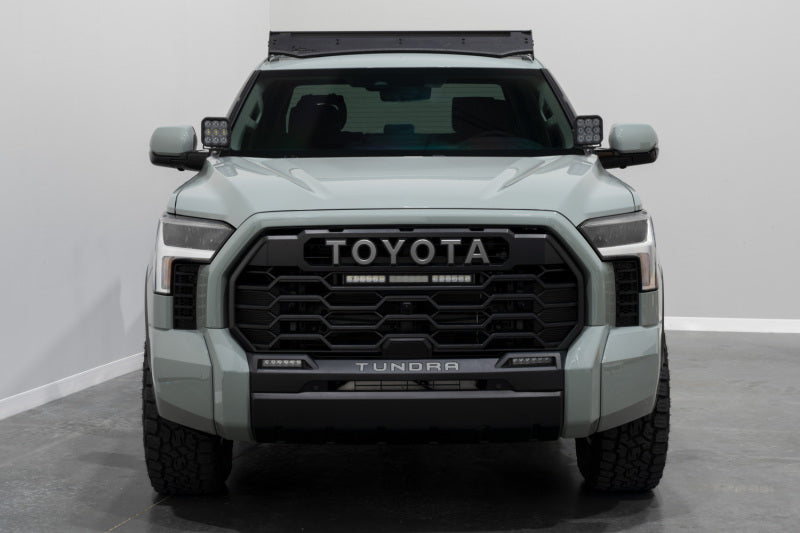

Add serious lighting to your 2022-2026 Toyota Tundra with the Diode Dynamics TRD Pro Grille Light Bar Kit. This complete kit tucks a high-output 18-inch Stage Series LED light bar neatly behind the TRD Pro grille for an aggressive, integrated look with zero cutting or drilling.

Key Benefits

Mounts a single 18-inch LED light bar cleanly inside the TRD Pro grille
CAD-designed brackets use existing factory mounting points for a no-cut, no-drill install
OEM-like appearance that blends with the TRD Pro front end
Plug-and-play wiring harness powers the bar without splicing
Amber Combo optic delivers wide spread plus distance throw in poor visibility

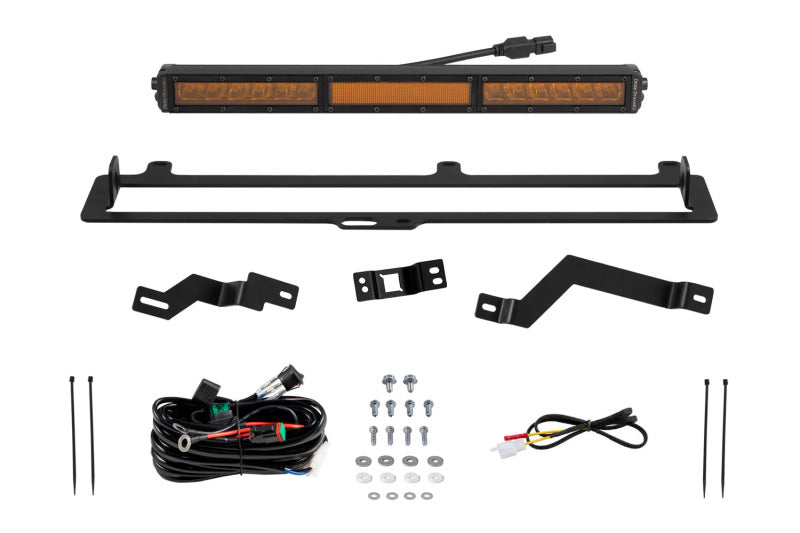

What's Included

One 18-inch Stage Series Amber Combo LED light bar
Powder-coated steel mounting brackets
Plug-and-play wiring harness

Specifications

Light bar length: 18 inches
Output: 2,400 measured lumens
Color temperature: 2000K cool amber
Intensity: 47,800 cd
Input power: 79.8 watts, 9-24V
Rating: IP68 waterproof
Connectors: Deutsch DT
Bracket material: powder-coated steel

Fitment

Designed for the 2022-2026 Toyota Tundra equipped with the TRD Pro grille (or a TRD Pro grille conversion). Grille-mounted, so it fits all cab and engine configurations that use the TRD Pro grille.

2022-2026 Toyota Tundra (TRD Pro grille)

FAQ

Does the DD7416 fit any Tundra?

It fits the 2022-2026 Toyota Tundra equipped with the TRD Pro grille (or a TRD Pro grille conversion). Because it grille-mounts, it fits all cab and engine configurations that use that grille.

Is it white or amber?

Amber Combo, an 18-inch bar at about 2,400 lumens for wide spread plus distance throw in poor visibility.

Does it need drilling?

No. CAD brackets use factory mounting points with a plug-and-play harness.
