Bilstein B8 6112 Front Lift Kit for 2010-2024 Toyota 4Runner

Name: Bilstein B8 6112 Front Lift Kit for 2010-2024 Toyota 4Runner
Brand: Bilstein
SKU: 47-311039
Price: 923.0 USD
Availability: InStock

$923.00 USD

Sale Sold out

Shipping calculated at checkout.

SKU:47-311039

In stock

Calculated shipping — oversized item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adjustable 0-2.75 inches of front lift to clear larger tires
Heavy-load tuning supports an extra 150-200 lbs of front weight
60mm digressive monotube piston for sharp on- and off-road control
Billet aluminum adjustable spring seats for precise ride height

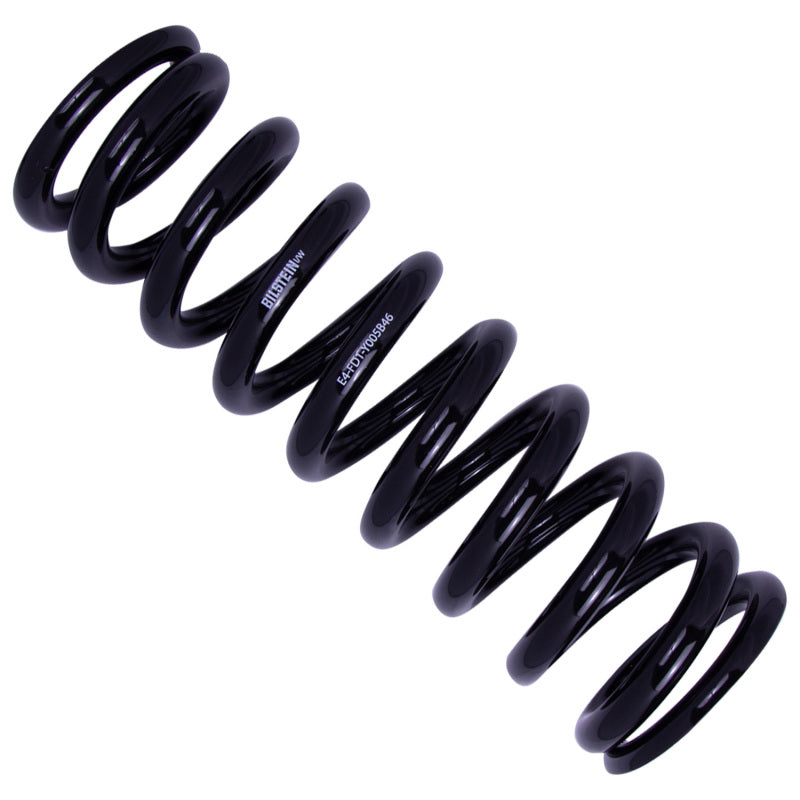

Custom-matched cold-wound coil springs included
Bolts on using factory front mounting points
Increases ground clearance and front wheel travel

The Bilstein B8 6112 (part 47-311039) is a heavy-load-tuned adjustable front suspension kit for the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and platform-shared 2010-2023 Lexus GX460, providing 0 to 2.75 inches of front lift.

Key Benefits

Adjustable 0-2.75 inches of front lift to clear larger tires
Heavy-load tuning supports an extra 150-200 lbs of front weight
60mm digressive monotube piston for sharp on- and off-road control
Billet aluminum adjustable spring seats for precise ride height
Custom-matched cold-wound coil springs included
Bolts on using factory front mounting points
Increases ground clearance and front wheel travel

Fitment

Fits the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and platform-shared 2010-2023 Lexus GX460. Provides 0-2.75 in of adjustable front lift and is tuned to support an added 150-200 lb of front-end weight from bumpers, winches, or lights. This is a front-only kit — pair it with matching rear shocks and springs for a level, balanced ride height.

FAQ

What does the 6112 47-311039 fit?

The 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and platform-shared 2010-2023 Lexus GX460.

How much front lift does it deliver?

0 to 2.75 inches, adjustable via the spring-seat snap-ring positions.

Do I need rear shocks too?

Yes. This is a front kit; add matching rear shocks and springs for a level stance.

Vehicle Fitment

Years	Make	Model	Submodel
2010–2023	Lexus	GX460	—
2010–2024	Toyota	4Runner	—
2010–2014	Toyota	FJ Cruiser	—

Specifications

lift: 0 to ~2.75in (adjustable)
type: Assembled 60mm coilover (B8 6112)
notes: 60mm digressive monotube piston; Billet aluminum adjustable spring seats; Custom cold-wound coil springs included; 0-2.75 in adjustable front lift; Heavy-load tuning (+150-200 lb front); Bolts to factory front mounting points
spring: Heavy-load (~150-200lb added front weight)
sold as: Pair
valving: Digressive
