AMP Research

AMP Research BedXtender HD Max Silver for 2019-2023 Ram 1500

Name: AMP Research BedXtender HD Max Silver for 2019-2023 Ram 1500
Brand: AMP Research
SKU: 74840-00A
Price: 329.99 USD
Availability: InStock

$329.99 USD

Sale Sold out

Shipping calculated at checkout.

Free Shipping

SKU:74840-00A

In stock

FREE shipping on this item
Ships in 1–2 business days
30-day hassle-free returns
Price match — found it cheaper?
Secure checkout — SSL encrypted

Key Features

Adds up to 2 ft of usable bed length over the lowered tailgate - turns a 6.5 ft bed into 8-plus ft of cargo space
Supports up to 400 lb when extended over the lowered tailgate
Tubular 6063 T-6 aluminum frame with rigid nylon uprights and a matte silver powdercoat finish
U-shaped 'Max' cage corrals coolers, gear, and tools so loads don't shift in the bed

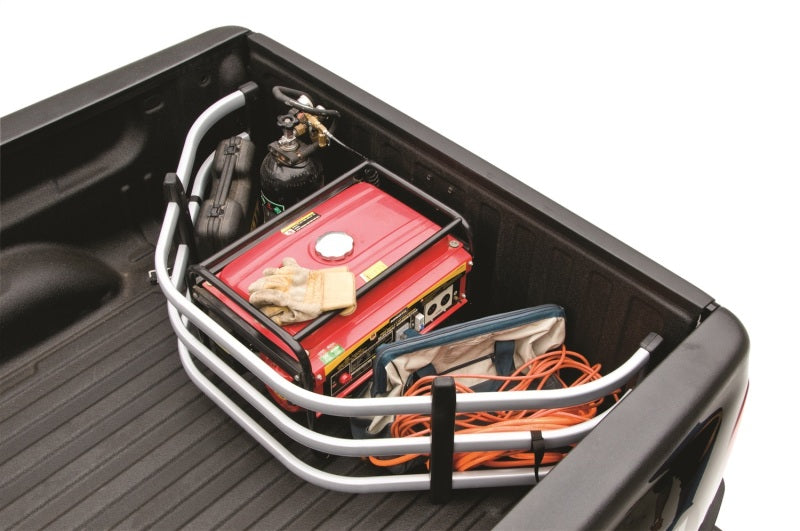

Reverses inside the bed with the tailgate closed to contain smaller loads
Installs in about an hour and can be removed when you need a fully open bed

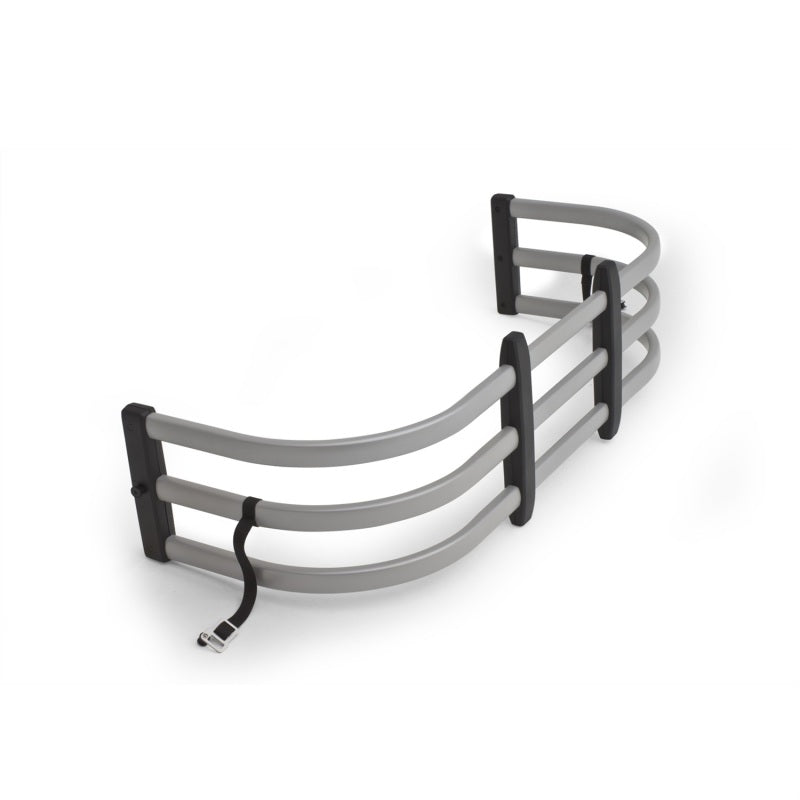

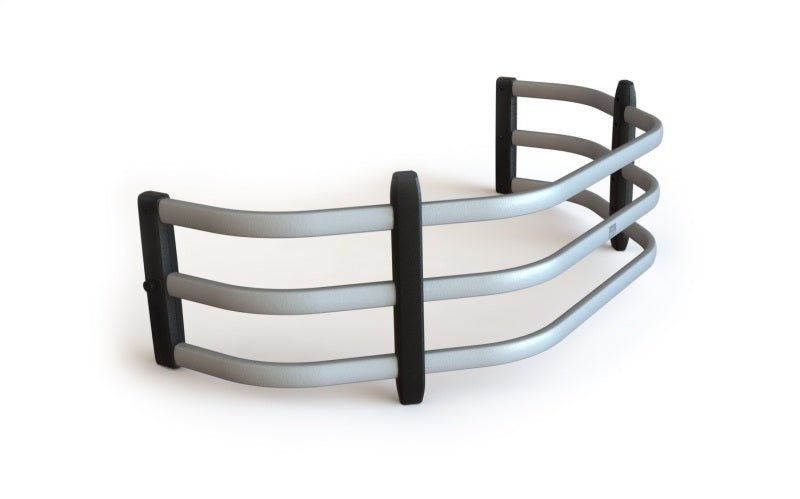

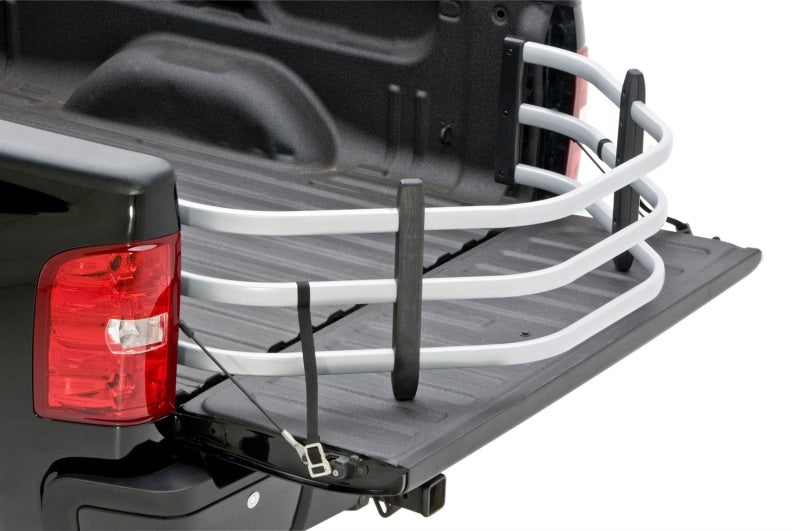

The AMP Research BedXtender HD Max (74840-00A) is a folding aluminum truck-bed extender for the 2019-2023 Ram 1500 (fifth-generation DT body), finished in matte silver. Flipped out over the lowered tailgate it adds up to 2 feet of usable cargo length; flipped inside with the tailgate closed it corrals smaller loads against the bulkhead.

Why owners choose it

Adds up to 2 feet of usable bed length over the lowered tailgate — turns a 6.5 ft bed into more than 8 ft of cargo space.
Supports up to 400 lb when extended over the lowered tailgate.
Tubular 6063 T-6 aluminum frame with rigid nylon uprights, powdercoated matte silver.
U-shaped 'Max' cage corrals coolers, gear, and tools so loads don't shift in the bed.
Reverses inside the bed with the tailgate closed to contain smaller items.
Removable when you need a fully open bed.

What's included

Includes the BedXtender HD Max unit and the vehicle mounting hardware. Installation takes about an hour in a home garage or driveway; some drilling may be required. If you run a tonneau cover, order AMP's tonneau cover spacer kit for clearance around the cover clamps.

Specifications

Type: Folding truck-bed extender (single unit)
Style: HD Max — U-shaped full-cage design
Frame: Tubular 6063 T-6 aluminum with rigid nylon uprights
Finish: Matte silver powdercoat
Added length: Up to 2 ft (turns a 6.5 ft bed into 8-plus ft)
Load rating: Up to 400 lb over the lowered tailgate
Warranty: 3-year limited manufacturer warranty

Fitment

Fits the 2019-2023 Ram 1500 (fifth-generation DT body) with a standard bed. Does not fit RamBox cargo-management beds or the Multifunction (split) tailgate. If your truck is the previous-generation Ram 1500 Classic (sold new alongside the DT), verify the body style before ordering — it uses a different bed extender application.

Which BedXtender is right for you

The HD Max is the U-shaped full-cage design for the most corralled space. The HD Sport is narrower and adds clearance for tonneau cover rails, and the HD Moto is tapered for hauling a motorcycle. This 74840-00A is the matte silver finish; a textured matte black version is sold under a separate part number.

FAQ

How much does the BedXtender HD Max extend the bed?

Flipped out over the lowered tailgate it adds up to 2 feet of usable length, turning a 6.5-foot bed into more than 8 feet of cargo space.

Does it fit a Ram 1500 with RamBox or the Multifunction tailgate?

No. The 74840-00A is for standard beds and does not fit RamBox cargo-management beds or the Multifunction (split) tailgate.

How much weight can it hold?

The HD Max supports up to 400 pounds when extended over the lowered tailgate.

Does installation require drilling?

Installation takes about an hour in a home garage and some drilling may be required. All mounting hardware is included.

Vehicle Fitment

Years	Make	Model	Submodel
2019–2023	Ram	1500	—

Specifications

material: 6063 T6 aluminum tubes with glass-reinforced nylon uprights
finish: Silver
certifications: California Proposition 65
tariff code: 8708295060
construction: Lightweight 6063 T6 aluminum tubes with rugged glass-reinforced nylon composite uprights
product type: BedXtender HD Max bed extender
bed extension: Adds up to approximately 2 feet of bed length when tailgate is down
emission code: Legal US
color marketing: Silver
country of origin: US
drilling required: No
life cycle status: Available to Order
sdr required flag: N
warranty time months: 36
hazardous material code: N
